LBC-4000 L-Band Up/Down Converter System
Rear Panel Connections
3.2.3

Optional 1:1 Redundancy Connectors

See  Figure  B‐2  in  Appendix  B.  LBC‐4000  REDUNDANCY  OPERATION  for
interconnection  between  these  connectors  to  others  located  on  the  LBC‐4000  rear
panel and on other external equipment.
3.2.3.1

Optional IF Connectors (Type 'BNC' Female)




Connector Name
B SEC
A PRI
3.2.3.2

Optional RF Connectors (Type 'SMA' Female)

The RF Primary A / Secondary B connector pairs provide the RF "baseball" switch
for optional redundant operations.




Connector Name
B SEC
A PRI

3.3

LBC-4000 Ground and Power Connections






The IF Primary A / Secondary B connector pairs provide the IF "baseball"
switch for optional redundant operations.
Ref
Connector Type
Des
IF
Type 'BNC' female
Ref
Connector Type
Des
RF
Type 'SMA' female

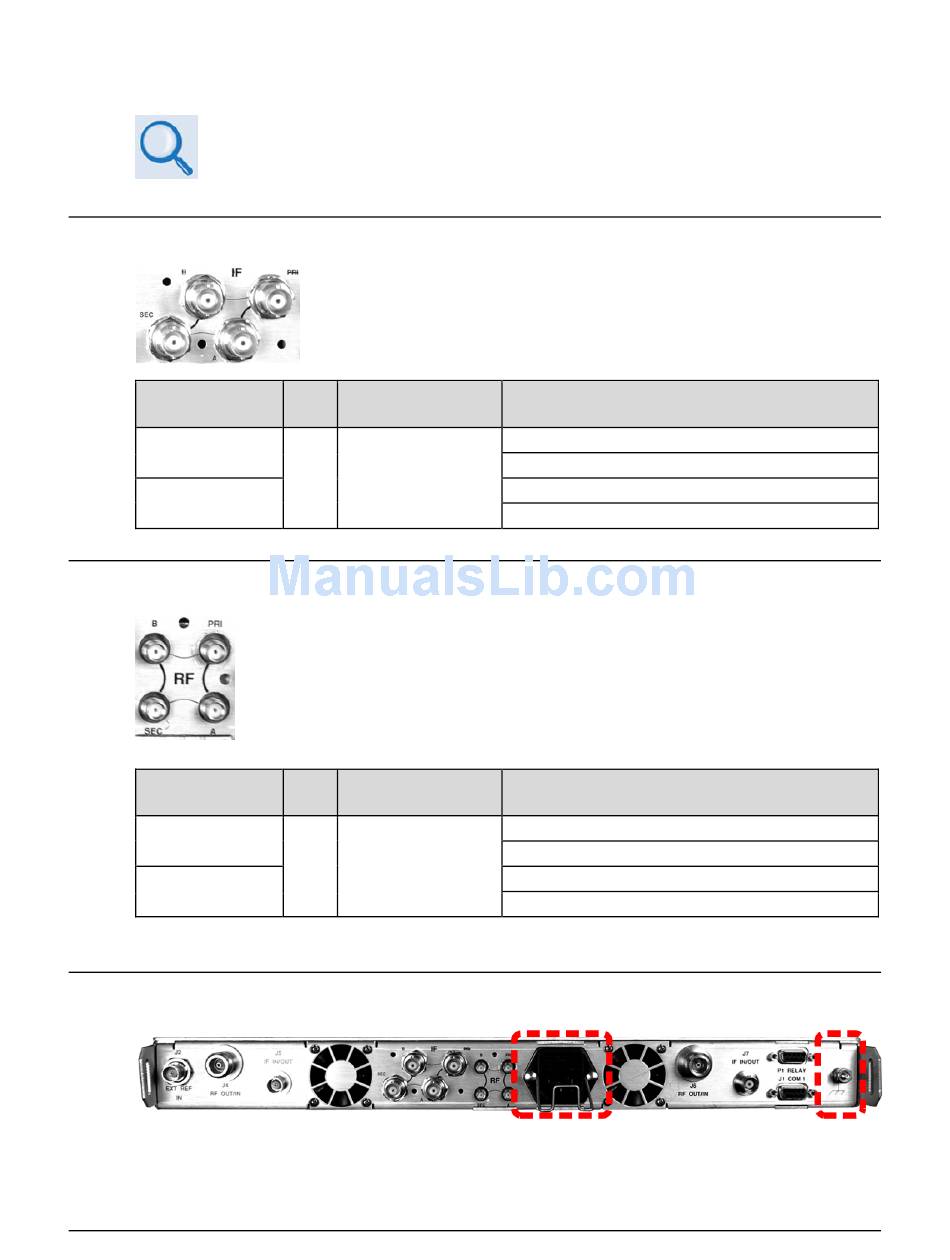

Figure 3-4. LBC-4000 Ground and Power Interfaces

Function (See App. C Figure C-2)
Opt. Redun (top): To J4 IF In/Out
Opt. Redun (bot): To Modem
Opt. Redun (top): To Termination
Opt. Redun (bot): To J6 IF In/Out
Function (See App. C Figure C-2)
Opt. Redun (top): To J5 RF In/Out
Opt. Redun (bot): To PA or LNA
Opt. Redun (top): To Termination
Opt. Redun (bot): To J7 RF In/Out
3–9
Revision 4
MN/LBC4000.IOM
