IP Addresses:
VLAN 2 – 199.85.245.0 - 199.85.245.127
VLAN 3 – 199.85.245.128 - 199.85.245.191
VLAN 4 – 199.85.245.192 - 199.85.245.255
Server, Router or
Layer 3 Switch

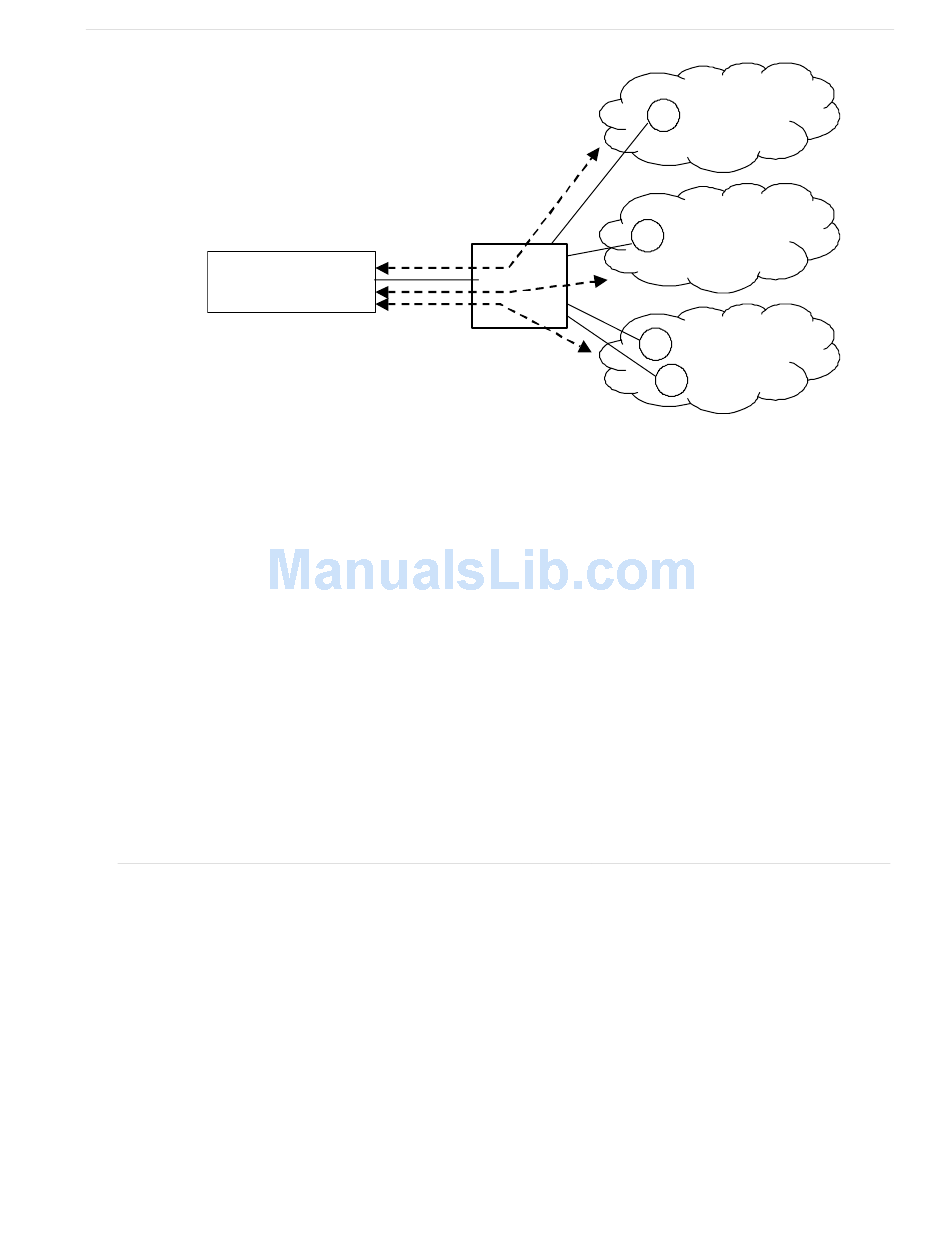

Figure 19: Inter-VLAN Communications

Service Differentiation

Programming of priority field in the VLAN tag can be used to provide classes of
service in the network. See Chapter 5 for information on configuring CoS.

VLAN Configuration

VLAN Parameter Ranges & Default Settings
The following set of tables lists default VLAN configuration parameters for the
unit. For each parameter the parameter name, recommended setting and possible
range are included.
Configuration Items (All Ports)
Configured VLANs
Port VLAN Type
Port native VLAN (PVID)
Port native VLAN format
RuggedCom
Switch
Default Value
1 (Management VLAN)
Edge Port
1
Untagged
Chapter 4 – Configuring VLANs
VLAN 2
199.85.245.1/25
VLAN 3
199.85.245.128/26
VLAN 4
199.85.245.192/26
Supported Values
1-1000
Edge Port, Trunk Port
1-1000
Untagged, Tagged
29
