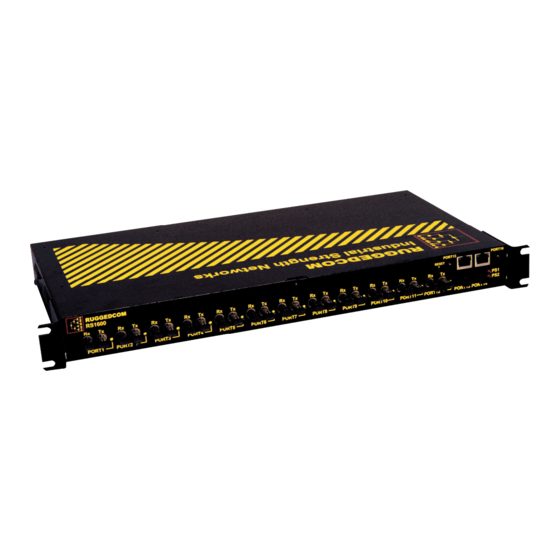

RuggedSwitch™ ™ ™ ™ RS1600 Family
RuggedSwitch
RuggedSwitch
RuggedSwitch
16-Port Managed Fiber Optical Ethernet Switches
RuggedCom Inc. I 30 Whitmore Road, Woodbridge, Ontario, Canada L4L 7Z4
Tel: (905) 856-5288 I Fax: (905) 856-1995 I Toll Free: (888) 264-0006
RS1600 Family
RS1600 Family
RS1600 Family
Installation Guide
www.ruggedcom.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RuggedCom RuggedSwitch RS1600
Summary of Contents for RuggedCom RuggedSwitch RS1600
- Page 1 RuggedSwitch RuggedSwitch RS1600 Family RS1600 Family RS1600 Family 16-Port Managed Fiber Optical Ethernet Switches Installation Guide www.ruggedcom.com RuggedCom Inc. I 30 Whitmore Road, Woodbridge, Ontario, Canada L4L 7Z4 Tel: (905) 856-5288 I Fax: (905) 856-1995 I Toll Free: (888) 264-0006...
- Page 2 Trademarks: Ethernet is a trademark of Xerox Corporation RuggedSwitch, RuggedRated, ROS and eRSTP are trademarks of RuggedCom® Inc. © 2008 RuggedCom Inc. All rights reserved Rev104...
-
Page 3: Table Of Contents
Fiber Optical Specifications................20 IEC 61850-3 Type Tests ................... 21 IEEE 1613 Type Tests ..................22 IEC Environmental Type Tests................. 22 Mechanical Specifications ................23 3.10 Agency Approvals .................... 24 Warranty..........................24 © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 4: Product Overview
14 – 10/100BaseTx RJ45 ports 2 – 100BaseFX fiber optical uplink ports RS1600F: 16 – 100BaseFX fiber optical ports Advanced layer 2 switching functions: 802.1p Message Prioritization, 802.1Q VLAN Full-duplex operation (no collisions) © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 5: Rs1600 Front Panel Description
Link Established Optional RJ45 Ports (15-16) Active Left LED 100BaseT Link Link/Activity LEDs Inactive Left LED 10BaseT Link PS1 LED Solid Power Supply 1 ON PS2 LED Solid Power Supply 2 ON © 2008 RuggedCom Inc. All rights reserved Rev104... - Page 6 NOTE: If your RS1600 was ordered without the RJ45 Uplink Ports, then there will be no reset function available although a reset label is shown on the faceplate. This does not apply to the RS1600F and RS1600T. © 2008 RuggedCom Inc. All rights reserved Rev104...
-
Page 7: Rs1600T Front Panel Description
Act LED Off No Link Established LED On Link Established Ports 15 – 16 LED Blinking Activity Link/Activity LEDs Led Off No Link Established Power Supply ON PS1 – PS2 LED Power Supply OFF © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 8: Rs1600F Front Panel Description
Fig 1.5.1 RS1600F Front Panel Detail ITEM ACTIVITY COMMENTS Link Established Ports 1 – 16 Blinking Activity Link/Activity LEDs No Link Established Power Supply ON PS1 – PS2 LED Power Supply OFF © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 9: Rs1600 Family Rear Panel Description
AC (Neutral) or DC ( - ) Surge Ground Surge Ground Chassis Ground Chassis Ground Power Supply #1 Power Supply #2 Normally Closed Common Normally Open Failsafe Output Relay Fig. 1.6.2 RS1600 Family Rear Panel Detail © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 10: Installation
Although forced airflow is not necessary, any increase in airflow will result in a reduction of ambient temperature that will improve long-term reliability of all equipment mounted within the rack space. © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 11: Power Supply Wiring And Grounding
4. Chassis Ground is connected to the Safety Ground terminal for AC inputs or the equipment ground bus for DC inputs. Sections 2.2.1 to 2.2.5 describe connections for single, dual and mixed AC and DC power supply inputs. © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 12: Single Power Supply - Ac Input
2.2.1 Single Power Supply – AC Input Fig. 2.2.2 Single Power Supply – AC Input 2.2.2 Dual Power Supplies – AC Inputs Fig. 2.2.3 Dual Power Supplies – AC Inputs © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 13: Single Power Supply - Dc Input
2.2.3 Single Power Supply – DC Input Fig. 2.2.4 Single Power Supply – DC Input 2.2.4 Dual Power Supplies – DC Inputs Fig. 2.2.5 Dual Power Supplies – DC Inputs © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 14: Dual Power Supplies - Dc And Ac Inputs
3. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies. 4. Separate circuit breakers must be installed and separately identified. 5. Equipment must be installed according to the applicable country wiring codes. © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 15: Hipot (Dielectric Strength) Testing
(see Fig. 2.3.1) during the HIPOT test. This is required in order to prevent the transient/surge suppression circuitry, which is connected to Surge Ground (see Fig. 2.2.1), from being activated during the HIPOT test. © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 16: Failsafe Output Wiring And Specifications
RS1600 Failsafe Relay Outputs Normally Closed Common Normally Open *** Normal contact state prior to power being applied to unit. *** Fig. 2.4.1 Failsafe Output Relay © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 17: Rs232 Port Wiring
No Connection No Connection Fig 2.5.1 RS232 Port Signals NOTE: This port is not intended to be a permanent connection and the cable shall be less than 2m (6.5 ft) in length. © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 18: Rj45 Twisted-Pair Data Ports
Case Shield (Chassis Ground) Fig. 2.6.1 shows the RJ45 port pins configuration. NOTE: RuggedCom does not recommend the use of CAT-5 cabling of any length for critical real- time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance. -
Page 19: Technical Specifications
0.3A @ 30VAC 1A @ 30VDC, 0.3A @ 80VDC 3.4 Data Port Specifications Data Port Media Distance Connector Type 10/100 Mbps* Cat 5 UTP 100m RJ45 *Available as an option on RS1600 © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 20: Fiber Optical Specifications
NOTES: 1. Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. 2. To convert from average to peak add 3dBm. To convert from peak to average, subtract 3dBm. -
Page 21: Iec 61850-3 Type Tests
2kV AC (Fail-Safe Relay output) IEC 60255-5 Dielectric Strength D.C. Power ports 2kV AC A.C. Power ports 2kV AC Signal ports 5kV (Fail-Safe Relay output) IEC 60255-5 H.V. Impulse D.C. Power ports A.C. Power ports © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 22: Ieee 1613 Type Tests
IEC 60068-2-30 Test Db 95% (non-condensing), 55°C, 6 cycles Cyclic) IEC 60255-21-1 Vibration Tests Fc 2g @ (10-150) Hz Class 2 IEC 60255-21-2 Shock Tests Ea 30g @ 11 ms Class 2 © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 23: Mechanical Specifications
(Length x Width x Height) 18.29 x 10.17 x 1.74 inches Dimensions with mounting brackets (464,57) x (258,32) x (44,20) mm installed Weight 10 lb (4.5 Kg) Enclosure 18 gauge Galvanized Steel © 2008 RuggedCom Inc. All rights reserved Rev104... -
Page 24: Agency Approvals
IEC/EN EN60825-1:1994 + A11:1996 + A2:2001 Compliant 4 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com/ or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
