7. SITE WIRING REQUIREMENTS

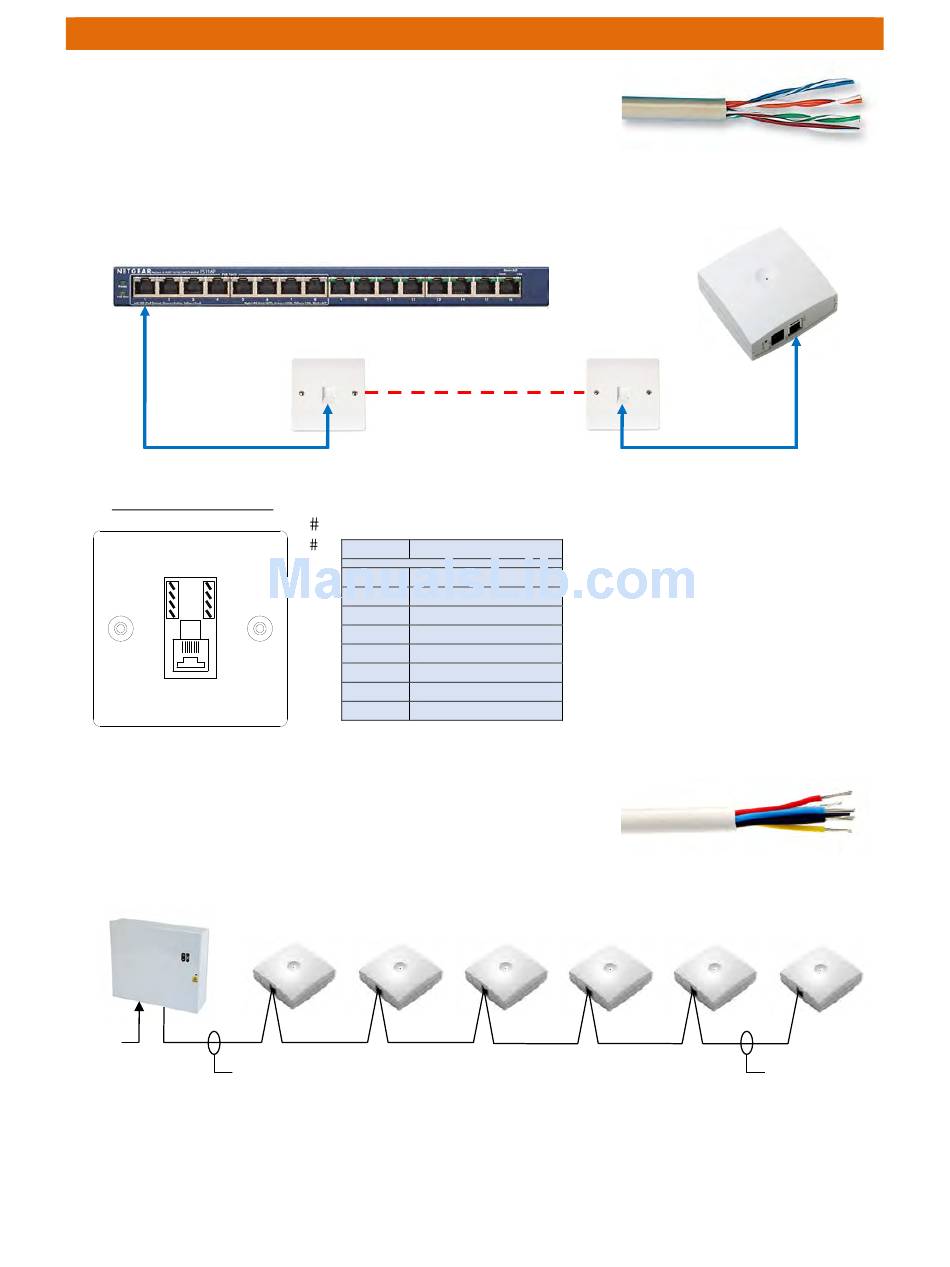

IP‐DECT Base Stations should be connected to the PoE Ports on the
Ethernet Switch using Cat5e Ethernet U/UTP cable
(Belden Type: 1583E.00B100) or equivalent, Aidcall Part No. YW1731.
Connect the PoE Switch and IP‐DECT Base Stations using Cat5e RJ45
wall sockets and Cat5e Patch Leads. Wire between the wall sockets using Cat5e Ethernet cable.
The maximum cable length must not exceed 100 metres. Make all 8 connections.
Use PoE Ports
2m Patch Lead
WALL SOCKET FROM REAR
6 5
3 4
1
7
8 2
DECT Repeaters should be connected to the 12V/2A Battery Backed PSU
using 8 Core alarm cable, Aidcall Part No. YW1730.
Connect a maximum of 6 Repeaters per PSU, the maximum
cable length must not exceed 100 metres.
Battery Backed PSU
240V
AC
Use 8 Core Cable
DECT Repeaters are supplied with a short RJ11 power lead; YELLOW = 12V & BLACK = 0V.
Ethernet Switch
RJ45 Wall Socket
Cat5e Cable (Max 100m)
Make all 8 connections
PIN No. Cat5e WIRE COLOUR
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
Max 6 DECT Repeaters per PSU
IP‐DECT
Base Station
RJ45 Wall Socket
RJ45 Wall Socket:
Aidcall Part No. P10280
Surface Backbox:
Aidcall Part No. O15090
2m Patch Lead:
Aidcall Part No. W00402
2m Patch Lead
Max 100m
