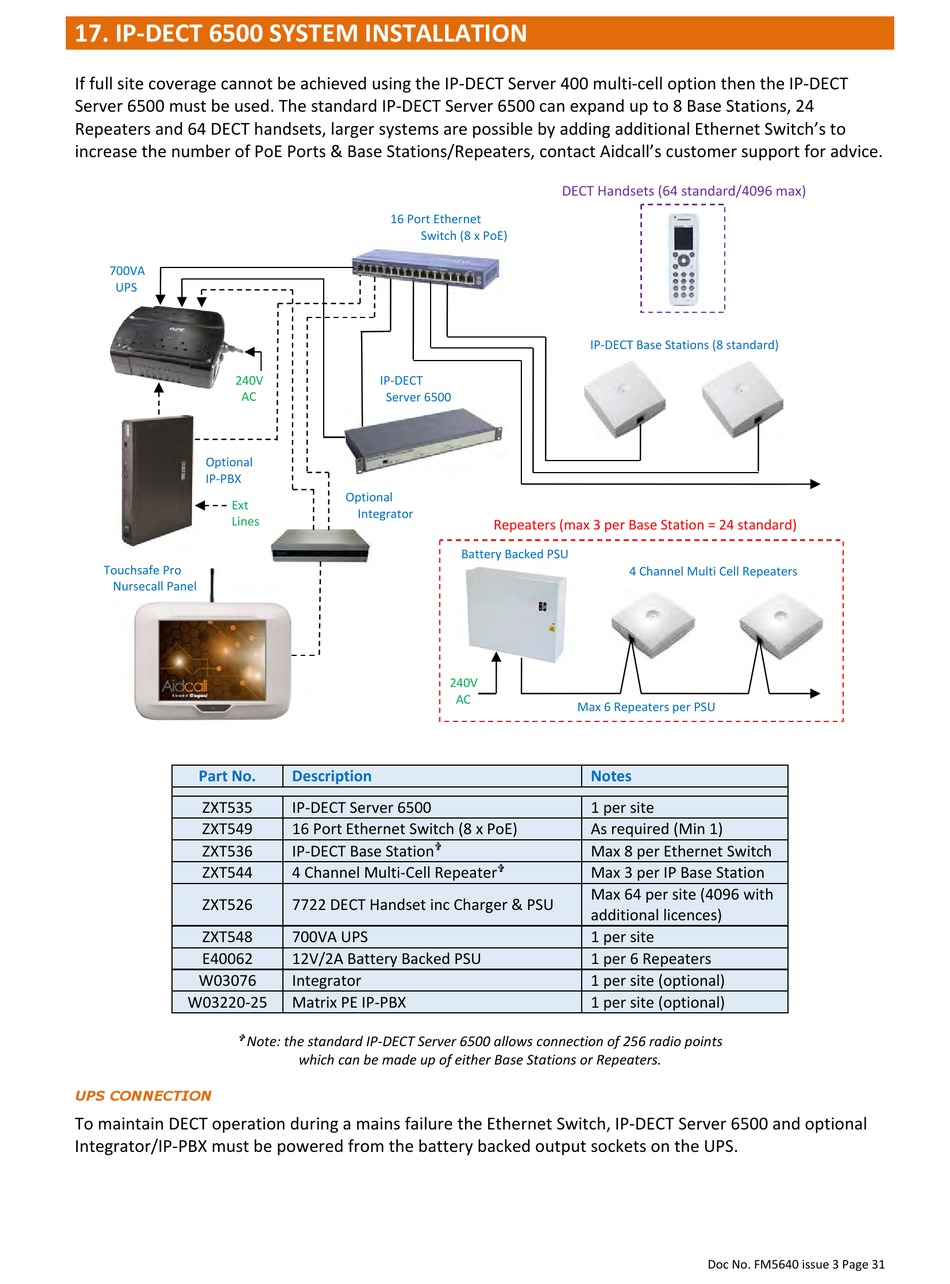

17. IP‐DECT 6500 SYSTEM INSTALLATION
If full site coverage cannot be achieved using the IP‐DECT Server 400 multi‐cell option then the IP‐DECT
Server 6500 must be used. The standard IP‐DECT Server 6500 can expand up to 8 Base Stations, 24
Repeaters and 64 DECT handsets, larger systems are possible by adding additional Ethernet Switch's to
increase the number of PoE Ports & Base Stations/Repeaters, contact Aidcall's customer support for advice.
700VA
UPS
240V
AC
Optional
IP‐PBX
Ext
Lines
Touchsafe Pro
Nursecall Panel
Part No.
ZXT535
ZXT549
ZXT536
ZXT544
ZXT526
ZXT548
E40062
W03076
W03220‐25

Note: the standard IP‐DECT Server 6500 allows connection of 256 radio points
UPS CONNECTION
To maintain DECT operation during a mains failure the Ethernet Switch, IP‐DECT Server 6500 and optional
Integrator/IP‐PBX must be powered from the battery backed output sockets on the UPS.
16 Port Ethernet
Switch (8 x PoE)
IP‐DECT
Server 6500
Optional
Integrator
Battery Backed PSU
240V
AC
Description
IP‐DECT Server 6500
16 Port Ethernet Switch (8 x PoE)

IP‐DECT Base Station
4 Channel Multi‐Cell Repeater
7722 DECT Handset inc Charger & PSU
700VA UPS
12V/2A Battery Backed PSU
Integrator
Matrix PE IP‐PBX
which can be made up of either Base Stations or Repeaters.
DECT Handsets (64 standard/4096 max)
IP‐DECT Base Stations (8 standard)
Repeaters (max 3 per Base Station = 24 standard)
4 Channel Multi Cell Repeaters
Max 6 Repeaters per PSU
Notes
1 per site
As required (Min 1)
Max 8 per Ethernet Switch

Max 3 per IP Base Station
Max 64 per site (4096 with
additional licences)
1 per site
1 per 6 Repeaters
1 per site (optional)
1 per site (optional)
Doc No. FM5640 issue 3 Page 31
