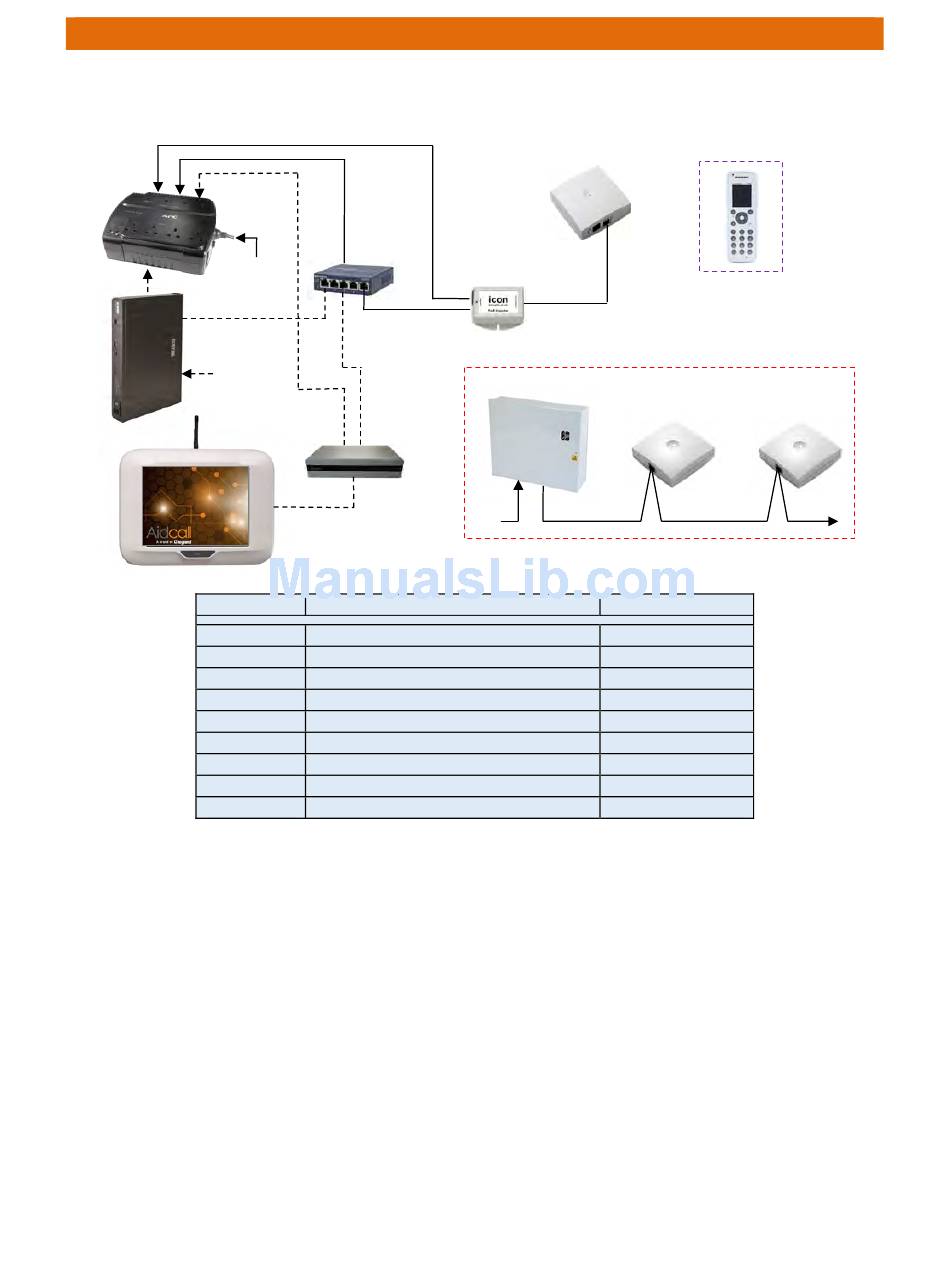

15. IP‐DECT 400 SINGLE‐CELL SYSTEM INSTALLATION
The IP‐DECT Server 400 single‐cell option is suitable for small installations using 1 Server/Base Station and
up to 6 Repeaters. Up to 12 DECT handsets can be used on a single‐cell system.
700VA
UPS
240V
AC
Optional
IP‐PBX
Ext
Lines
Touchsafe Pro
Nursecall Panel
Part No.
ZXT503
ZXT512
ZXT526
W07485
ZXT502
ZXT548
E40062
W03076
W03220‐25
UPS CONNECTION
To maintain DECT operation during a mains failure the Ethernet Switch, PoE Injector and optional
Integrator/IP‐PBX must be powered from the battery backed output sockets on the UPS.
PoE INJECTOR CONNECTION
The PoE injector provides Power over Ethernet for the IP‐DECT Server 400 (Single‐Cell).
POWER ‐ connect to a battery backed output socket on the UPS using the mains lead provided.
ETHERNET ‐ connect to the Ethernet Switch using an RJ45 patch lead.
ETHERNET & PoE ‐ connect to the IP‐DECT Server 400 using an RJ45 patch lead. This connection can be
extended to a maximum of 100 metres using Cat5e cable.
5 PORT ETHERNET SWITCH CONNECTIONS
POWER ‐ connect to a battery backed output socket on the UPS using the mains lead provided.
ETHERNET PORTS ‐ connect to the PoE Injector and optional Integrator/IP‐PBX using RJ45 patch leads.
IP‐DECT
Server 400
(Single‐Cell)
5 Port
Ethernet
Switch
PoE Injector
Battery Backed PSU
Optional
Integrator
240V
AC
Description
IP‐DECT Server 400 (Single‐Cell)
2 Channel Multi‐Cell Repeater
7722 DECT Handset inc Charger & PSU
5 Port Ethernet Switch
PoE Injector
700VA UPS
12V/2A Battery Backed PSU
Integrator
Matrix PE IP‐PBX
DECT Handsets (max 12)
Repeaters (max 6)
2 Channel Multi‐Cell Repeaters
Notes
1 per site
max 6 per site
max 12 per site
1 per site
1 per site
1 per site
1 per site
1 per site (optional)
1 per site (optional)
Doc No. FM5640 issue 3 Page 21
