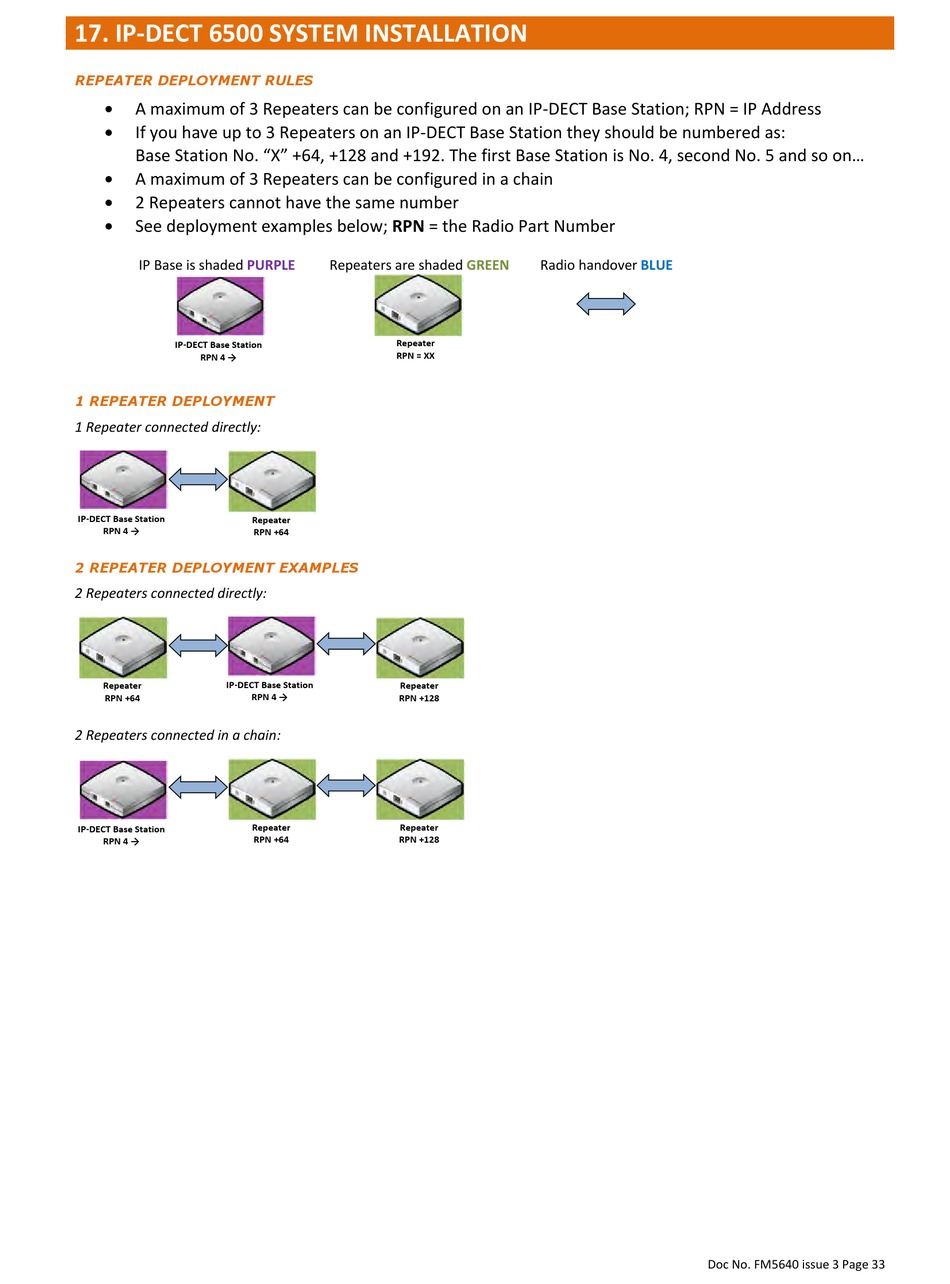

17. IP‐DECT 6500 SYSTEM INSTALLATION
REPEATER DEPLOYMENT RULES

A maximum of 3 Repeaters can be configured on an IP‐DECT Base Station; RPN = IP Address

If you have up to 3 Repeaters on an IP‐DECT Base Station they should be numbered as:
Base Station No. "X" +64, +128 and +192. The first Base Station is No. 4, second No. 5 and so on...

A maximum of 3 Repeaters can be configured in a chain

2 Repeaters cannot have the same number

See deployment examples below; RPN = the Radio Part Number
IP Base is shaded PURPLE Repeaters are shaded GREEN Radio handover BLUE
IP‐DECT Base Station
RPN 4 →
1 REPEATER DEPLOYMENT
1 Repeater connected directly:
IP‐DECT Base Station
Repeater
RPN 4 →
RPN +64
2 REPEATER DEPLOYMENT EXAMPLES
2 Repeaters connected directly:
IP‐DECT Base Station
Repeater
RPN +64 RPN 4 →
2 Repeaters connected in a chain:
Repeater
IP‐DECT Base Station
RPN +64
RPN 4 →
Repeater
RPN = XX
Repeater
RPN +128
Repeater
RPN +128
Doc No. FM5640 issue 3 Page 33
