16. IP‐DECT 400 MULTI‐CELL SYSTEM INSTALLATION
IP-DECT SERVER 400 (MULTI-CELL) PROGRAMMING
The IP‐DECT Server 400 must have its IP address set to 192.168.0.3 and its Radio Part Number set to 3.
IP-DECT BASE STATION PROGRAMMING
IP‐DECT Base Stations must have their IP addresses set 192.168.0.4/5/6 and Radio Part Numbers 4/5/6.
Refer to the manufacturers installation guide for full instructions – see section 6.
2 CHANNEL MULTI-CELL REPEATERS
A maximum of three 2 Channel Multi‐Cell Repeaters can be connected to the IP‐DECT Server 400 Multi‐Cell
plus three per IP‐DECT Base Station (total 12 per site). Repeaters require a power connection only; they
communicate with the Server/Base Station via low power radio signals and do not require a line
connection. To maintain DECT coverage during a mains failure all Repeaters must be connected to a battery
backed 12V DC PSU.
REPEATER POSITIONING
Before installing power cables to Repeater positions, it is important that the optimum position for coverage
is established. Register the Repeater onto the IP‐DECT Server/Base then with the Repeater powered from a
battery walk away in the direction that cover is to be extended. When the red LED on the Repeater starts to
flash it is out of range and must be moved back towards the Server/Base by a minimum of 5 metres before
selecting its final location. The LED should be steady green. See Repeater Deployment Rules on the
following page.
REPEATER PROGRAMMING
Refer to the manufacturers installation guide for full instructions – see section. A programming kit (P/No.
ZCS729) is required to program Repeaters, the Service Tool software can be downloaded via the link in
section 6 of this manual.

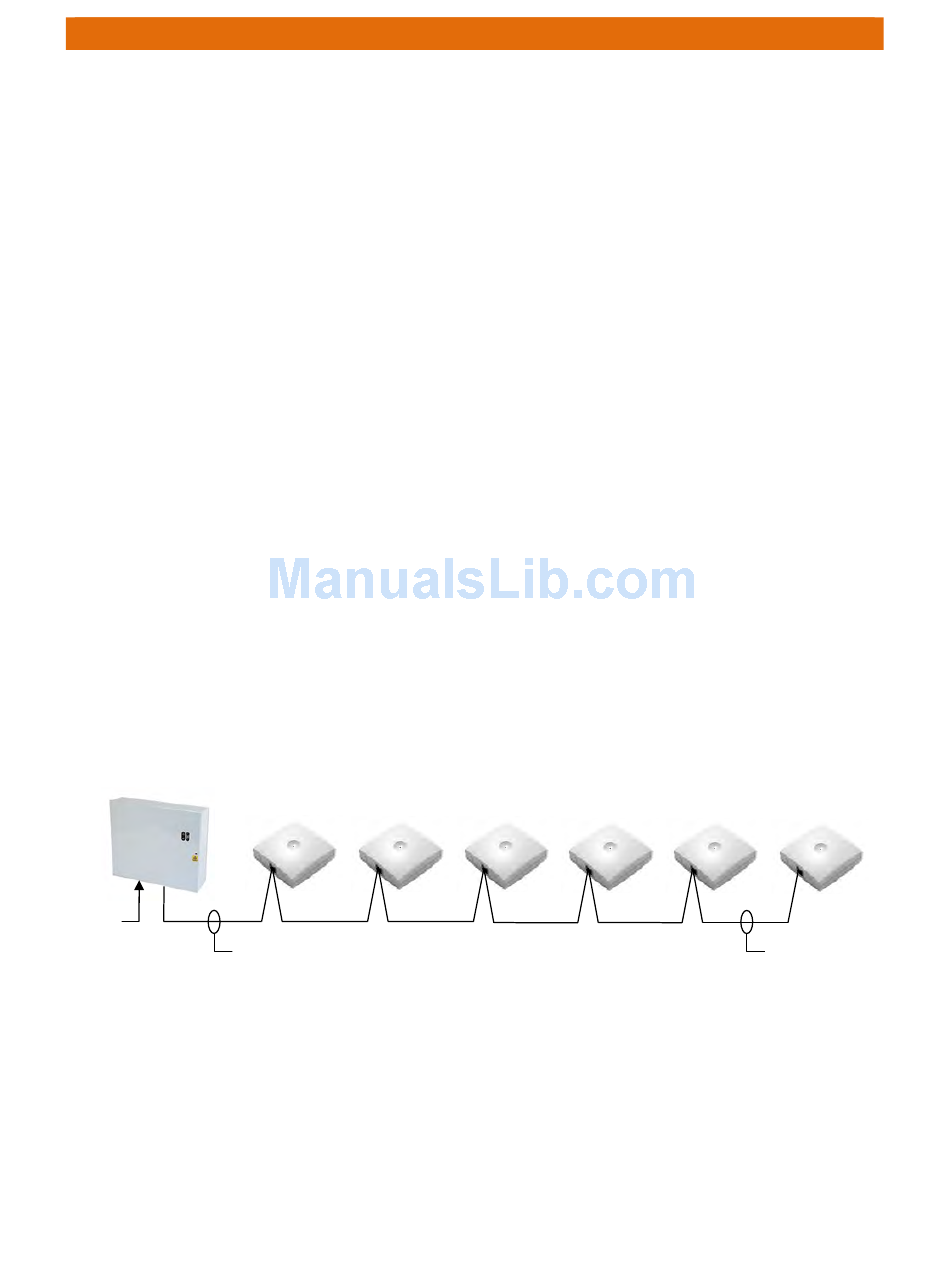

REPEATER POWER CONNECTION
Repeaters should be connected using 8 core cables; cores can be doubled‐up and/or looped back to form a
ring circuit to reduce the voltage drop if necessary.
Battery Backed 12V DC PSU
240V
AC
Use 8 Core Cable
Typically, the maximum distance to a Repeater should not exceed 100 metres.
Note: connect a maximum of 6 Repeaters per 12V 2A PSU.
Maximum 12 x 2 Channel Multi‐Cell Repeaters
(3 on Multi‐Cell Wireless Server + 3 per DECT‐IP Base Station)
Repeater Power Lead Colour Code
YELLOW = 12V BLACK = 0V
Max 100m
