12. DECT REPEATER
DECT Repeaters are used to extend the wireless coverage area in a DECT network. The DECT Repeater
provides a larger geographical spread of the traffic channels and increases the coverage area but it does
not increase the number of channels available. The DECT Repeater is normally used in areas with limited
coverage e.g. long hallways, stairwells and corridors.
DECT Repeaters are available with either 2 or 4 voice channels. The Repeater is wireless with no connection
to the DECT Server or Base Station; however, it does need connection to a battery backed power supply.

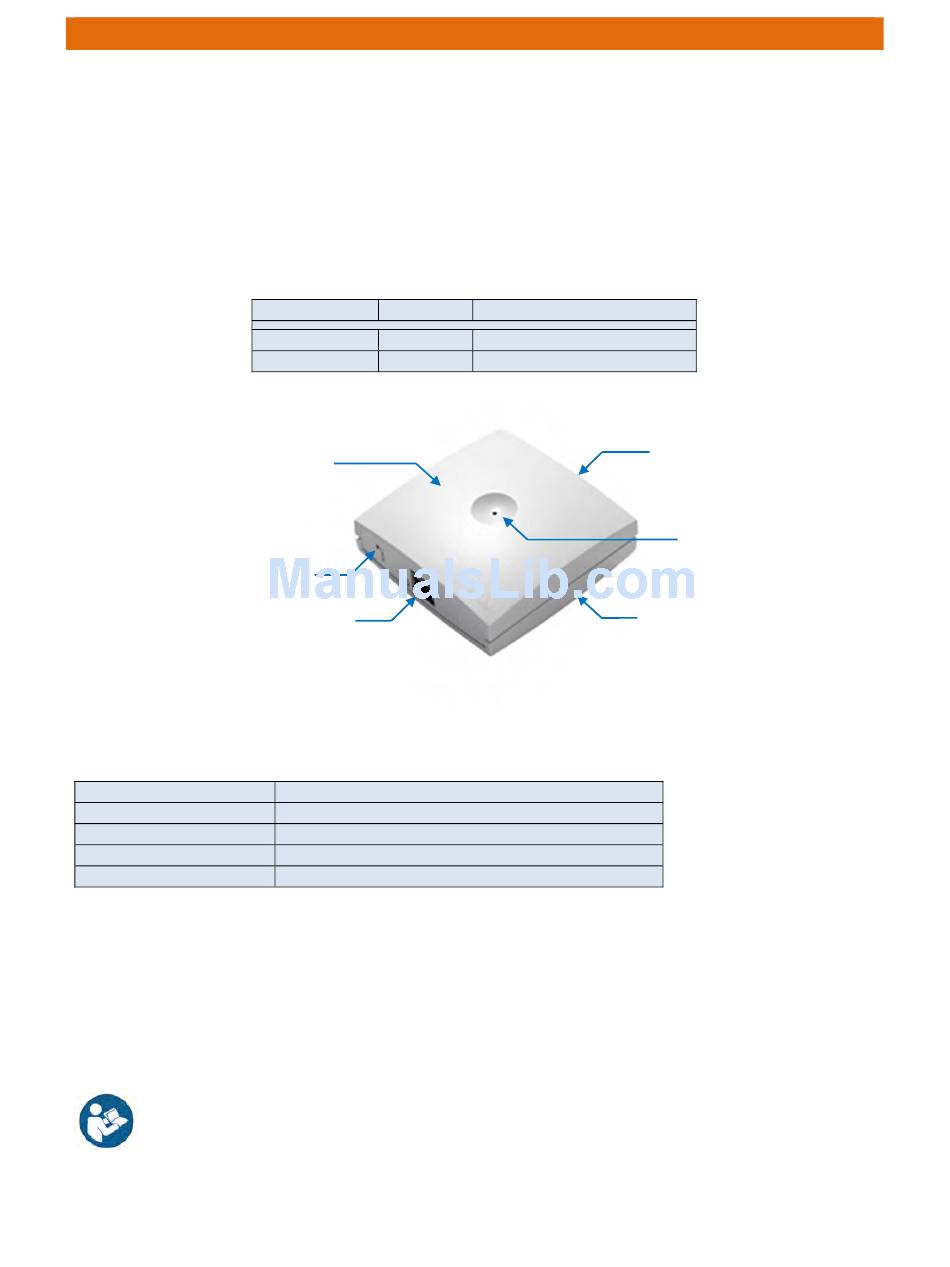

2 Channel and 4 Channel DECT Repeaters are housed in the same ABS enclosure; always check the Model
No. label on the rear of the unit to be sure of which product you are looking at;
Surface Mount ABS Enclosure
100 x 100 x 30mm (HxWxD)
Reset Button
LED INDICATOR
The front cover Status LED will indicate the Repeater status by different colours and flash patterns, see the
table below;
LED Colour
Steady Green
Short Green Flash
Fast Green Flashing
Fast Red Flashing
RESET BUTTON
You can restart or reset the Repeater by pressing the RESET button on the bottom face.
Refer to the Spectralink DECT Repeater installation guide and Service Tool software (for
Windows) for programming Repeaters (see section 6).
Spectralink Ref. Aidcall Ref. Product
0244 1100 ZXT512
0233 4601 ZXT544
PSU Port
Meaning
OK and idle
OK and active voice call
Busy (all channels in use)
Error – no over air sync possible
2 Channel Multi‐Cell Repeater
4 Channel Multi‐Cell Repeater
Wall Mount Keyhole
Fixings on Rear
Product Label on Rear
Status LED
