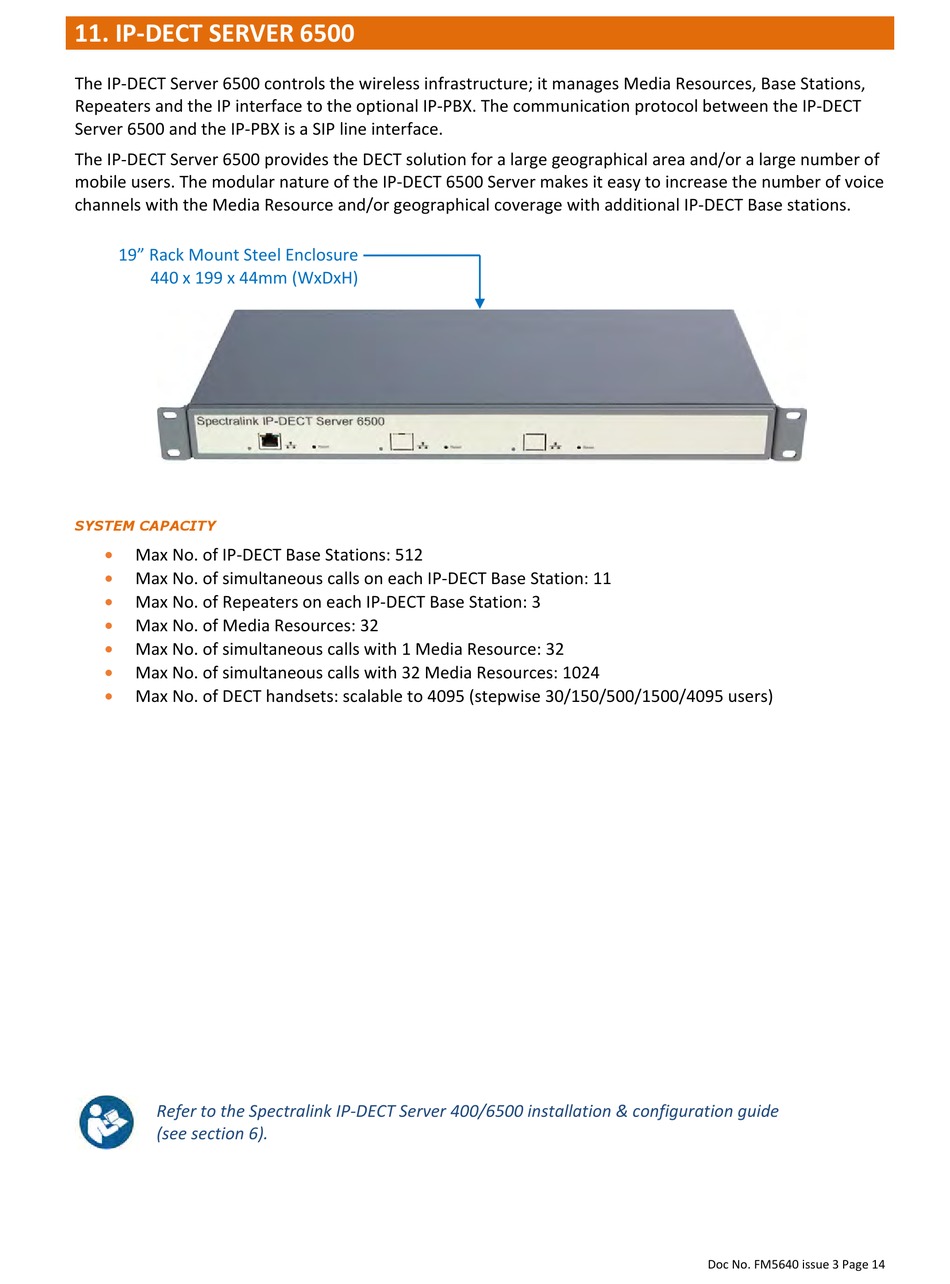

11. IP‐DECT SERVER 6500
The IP‐DECT Server 6500 controls the wireless infrastructure; it manages Media Resources, Base Stations,
Repeaters and the IP interface to the optional IP‐PBX. The communication protocol between the IP‐DECT
Server 6500 and the IP‐PBX is a SIP line interface.
The IP‐DECT Server 6500 provides the DECT solution for a large geographical area and/or a large number of
mobile users. The modular nature of the IP‐DECT 6500 Server makes it easy to increase the number of voice
channels with the Media Resource and/or geographical coverage with additional IP‐DECT Base stations.
19" Rack Mount Steel Enclosure
440 x 199 x 44mm (WxDxH)
SYSTEM CAPACITY

Max No. of IP‐DECT Base Stations: 512

Max No. of simultaneous calls on each IP‐DECT Base Station: 11

Max No. of Repeaters on each IP‐DECT Base Station: 3

Max No. of Media Resources: 32

Max No. of simultaneous calls with 1 Media Resource: 32

Max No. of simultaneous calls with 32 Media Resources: 1024

Max No. of DECT handsets: scalable to 4095 (stepwise 30/150/500/1500/4095 users)
Refer to the Spectralink IP‐DECT Server 400/6500 installation & configuration guide
(see section 6).
Doc No. FM5640 issue 3 Page 14
