17. IP‐DECT 6500 SYSTEM INSTALLATION

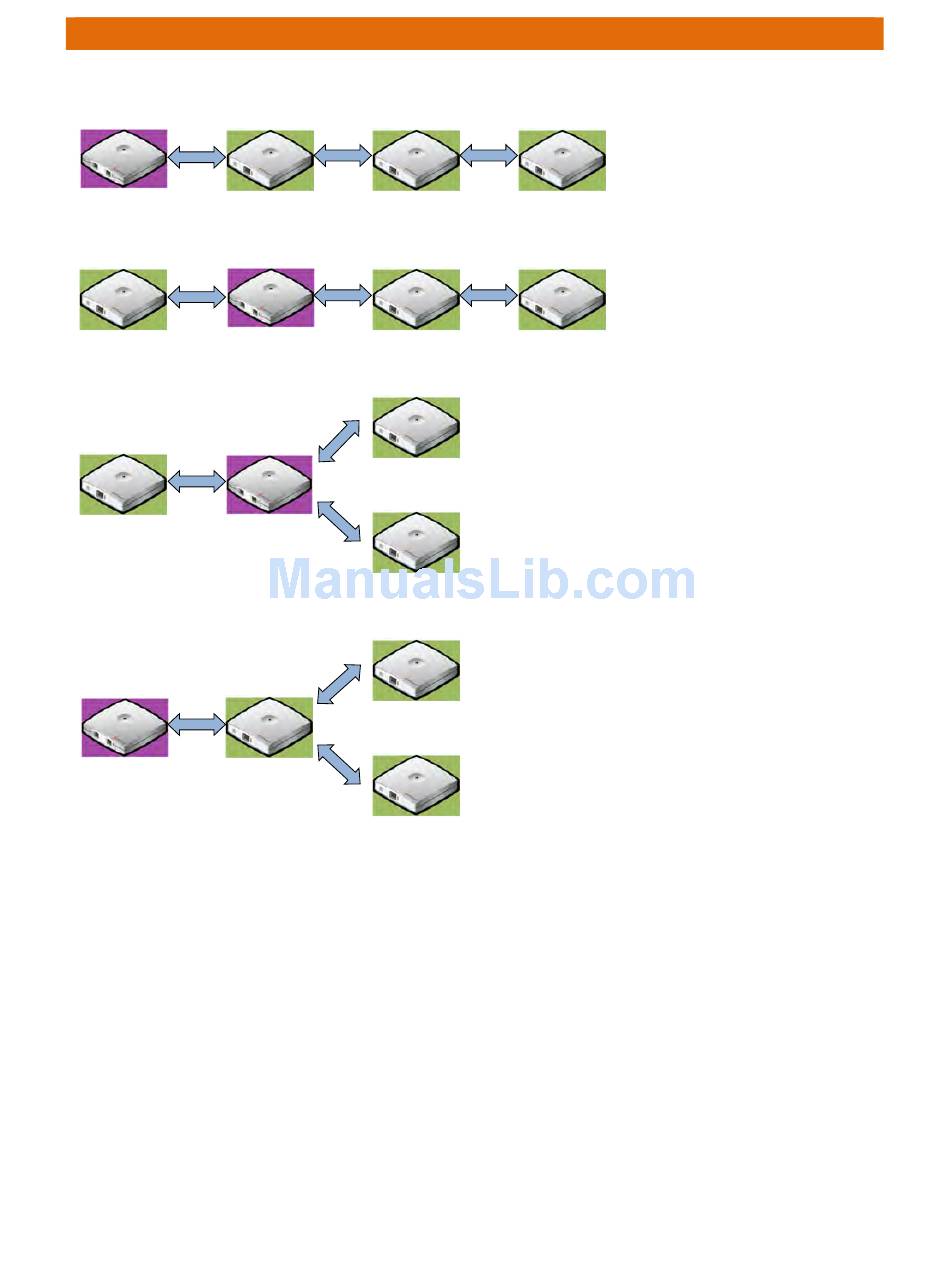

3 REPEATER DEPLOYMENT EXAMPLES
3 Repeaters connected in a chain:
IP‐DECT Base Station
Repeater
RPN 4 →
RPN +64
1 Repeater connected directly and 2 in a chain:
IP‐DECT Base Station
Repeater
RPN 4 →
RPN +64
3 Repeaters connected directly:
Repeater
IP‐DECT Base Station
RPN +64
RPN 4 →
Y‐shaped 3 Repeater deployment:
Repeater
IP‐DECT Base Station
RPN +64
RPN 4 →
Repeater
RPN +128
Repeater
RPN +128
Repeater
RPN +128
Repeater
RPN +192
Repeater
RPN +128
Repeater
RPN +192
Repeater
RPN +192
Repeater
RPN +192
Doc No. FM5640 issue 3 Page 34
