14. INTEGRATOR & PSU
TOUCHSAFE PRO PANEL CONNECTION

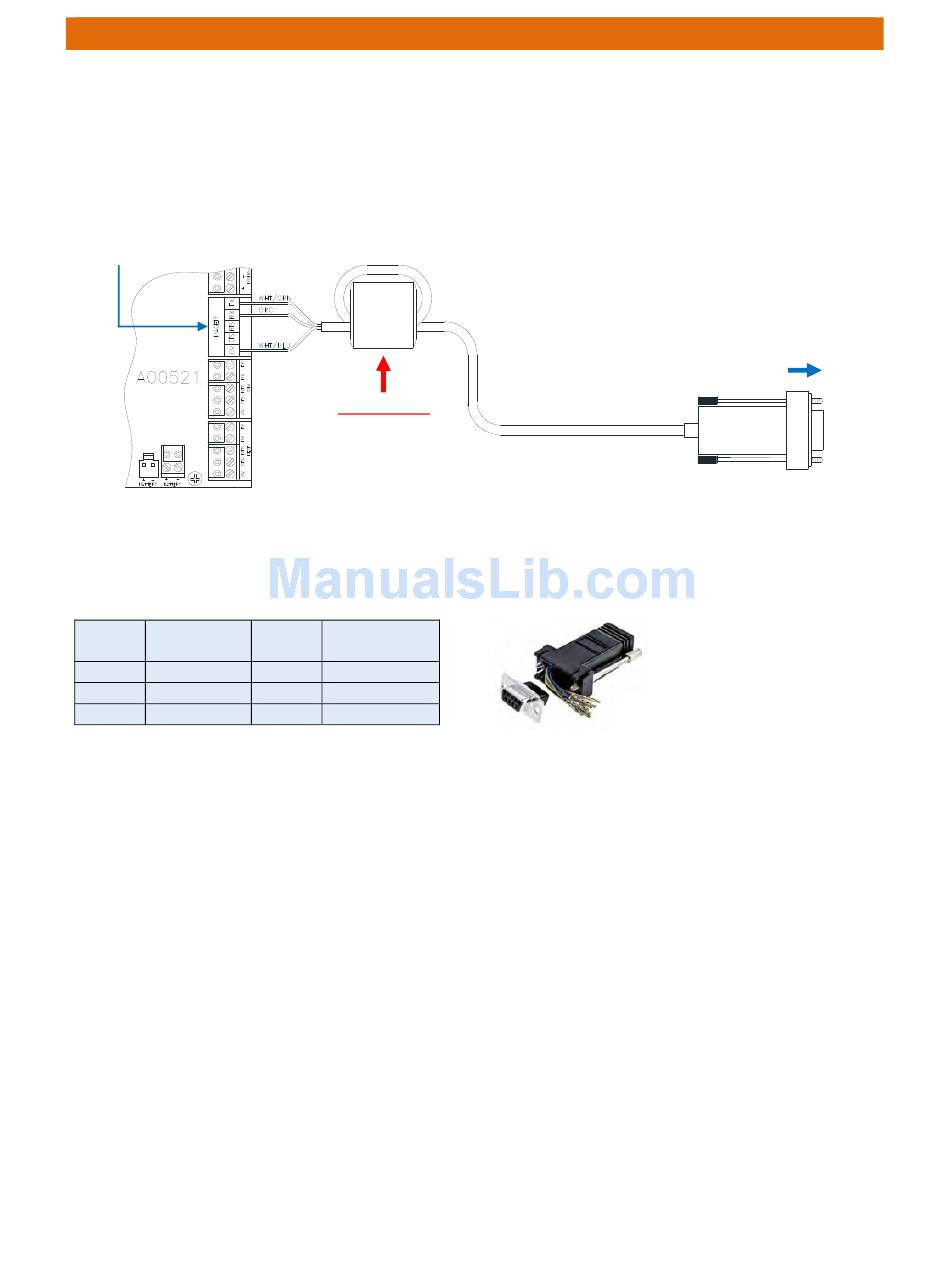

Cut an RJ45 plug off one end of the Cat5e Patch lead and loop the wire through a ferrite sleeve provided
with the Touchsafe Pro panel.
Strip‐back the insulation and connect the white/green, orange and white/blue cores to the Touchsafe Pro
panel PAGER terminals as shown below;
Touchsafe Pro
Pager Port
Note: the data lead can be extended up to a maximum of 20 metres using LSF (Low Smoke and Fume)
screened TCCA 8 core alarm cable. This cable is available from Aidcall by the metre; Part No. YW1730.
Configure the 9 Pin D‐Sub Female/RJ45 Adapter using the colour code in the table below;
9 Pin D Adapter
Pin No. Wire Colour
2 White
3 Yellow
5 Blue
Plug the Patch Lead into 9 Pin D‐Sub Female/RJ45 Adapter, then plug the D‐plug into the Integrator Serial
Port B.
Setup the Touchsafe Pro panel as described below.
IMPORTANT
Loop the wire once
through a Ferrite Sleeve
provided with the Panel
RJ45 Cat5e
Pin No. Wire Colour
2 Orange
3 White/Green
5 White/Blue
Maximum 20m cable length
between Panel and Integrator
Cat5e Patch Lead
Plug into
Integrator
Serial Port B
9 Pin D‐Sub
Female/RJ45
Adapter
