17. IP‐DECT 6500 SYSTEM INSTALLATION
16 PORT ETHERNET SWITCH CONNECTIONS
The 16 Port Ethernet Switch provides 8 PoE Ports (Power over Ethernet) for the IP‐DECT Base Stations.
POWER ‐ connect to a battery backed output on the UPS via the in‐line PSU module provided.
PORTS 1 to 8 ‐ connect to the IP‐DECT base stations using up to 100 metres of 4 pair Cat5e cable.
PORTS 9 to 16 ‐ connect to the IP‐DECT Server 6500, optional Integrator/IP‐PBX using RJ45 patch leads.
Note; a second 16 Port Ethernet Switch (8 x PoE) can be connected to increase the number of IP‐DECT base
stations to 16. Connect the second Ethernet Switch to the UPS and link the 2 units via a Patch Lead between
a spare Port 9 to 16. Alternatively, a 24 PoE Port Ethernet Switch is available – Tynetec Part No. ZXT559.
IP-DECT SERVER 6500 PROGRAMMING
The IP‐DECT Server 6500 must have its IP address set to 192.168.0.3.
Refer to the manufacturers installation guide for full instructions – see section 6 of this manual.
IP-DECT BASE STATION PROGRAMMING
IP‐DECT Base Station IP addresses must start at 192.168.0.4 with RPN 4 and carry on sequentially.
Refer to the manufacturers installation guide for full instructions – see section 6 of this manual.
4 CHANNEL MULTI CELL REPEATERS
A maximum of three 4 Channel Multi‐Cell Repeaters can be connected per IP‐DECT Base Station. Repeaters
require a power connection only; they communicate with the Base Station via low power radio signals and
do not require a line connection. To maintain DECT coverage during a mains failure all Repeaters must be
connected to a battery backed 12V DC PSU.
REPEATER POSITIONING
Before installing power cables to Repeater positions, it is important that the optimum position for coverage
is established. Register the Repeater onto the IP‐DECT Base then with the Repeater powered from a battery
walk away in the direction that cover is to be extended. When the red LED on the Repeater starts to flash it
is out of range and must be moved back towards the IP‐DECT Base by a minimum of 5 metres before
selecting its final location. The LED should be steady green. See Repeater Deployment Rules on the
following page.
REPEATER PROGRAMMING
Refer to the manufacturers installation guide for full instructions – see section 6. A programming kit (P/No.
ZCS729) is required to program Repeaters, the Service Tool software can be downloaded via the link in
section 6 of this manual.
REPEATER POWER CONNECTION
Repeaters should be connected using 8 core cables; cores can be doubled‐up and/or looped back to form a
ring circuit to reduce the voltage drop if necessary.

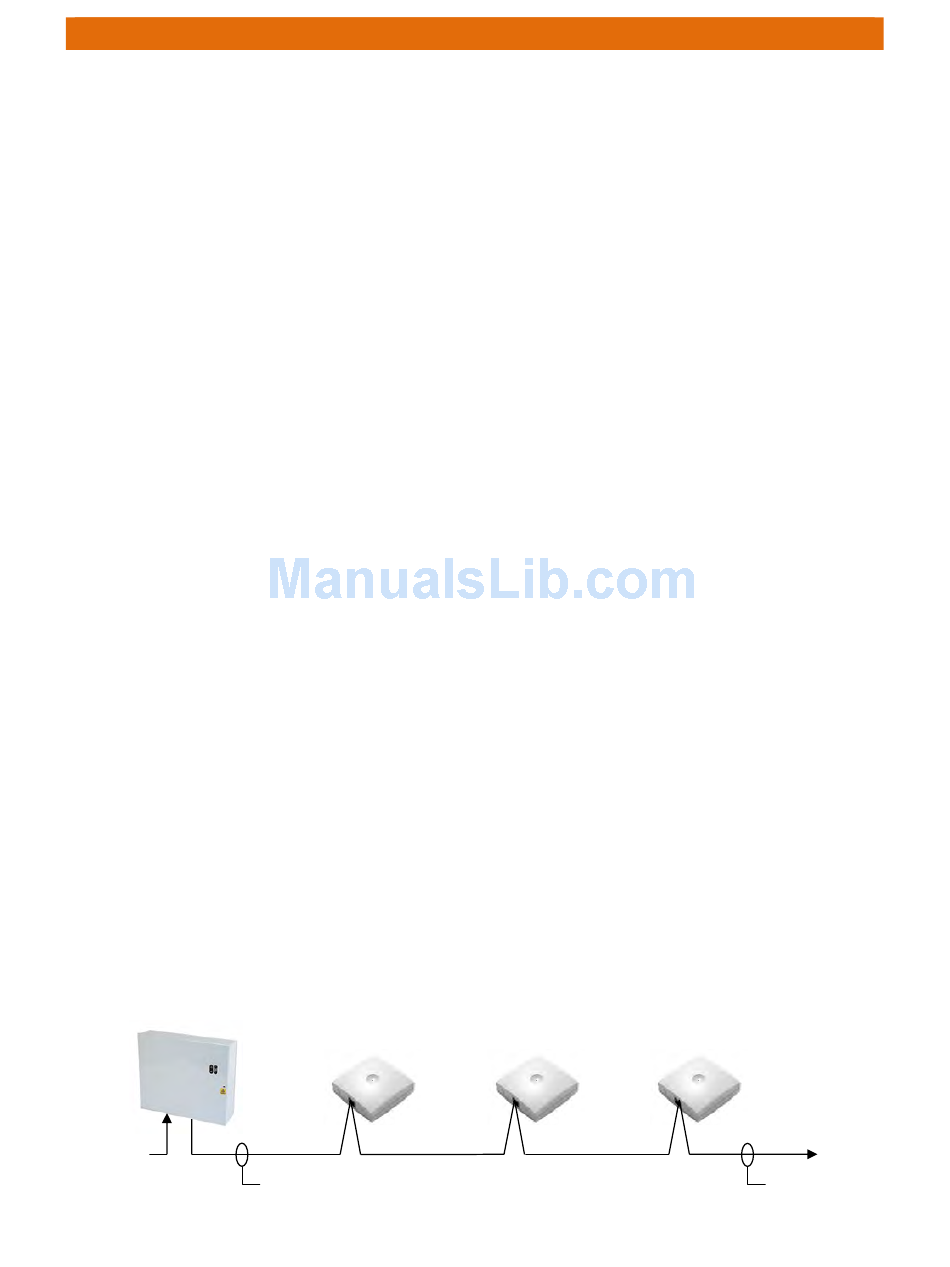

Battery Backed 12V DC PSU
240V
AC
Repeater Power Lead Colour Code
Use 8 Core Cable
YELLOW = 12V BLACK = 0V
4 Channel Multi‐Cell Repeaters
(3 per IP‐DECT Base Station)
Max 100m
