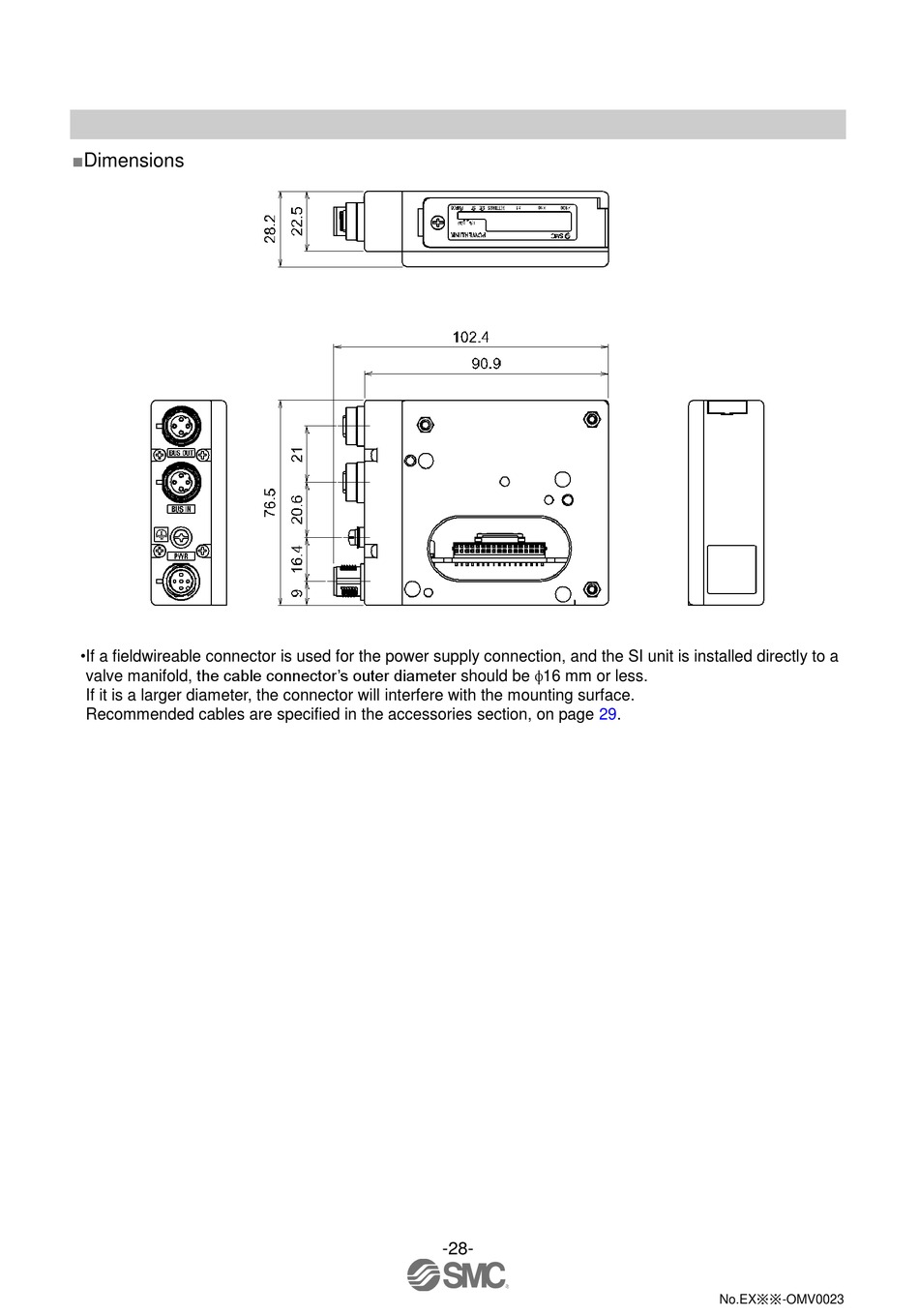

■Dimensions

•If a fieldwireable connector is used for the power supply connection, and the SI unit is installed directly to a
valve manifold, the cable connector's outer diameter should be 16 mm or less.
If it is a larger diameter, the connector will interfere with the mounting surface.
Recommended cables are specified in the accessories section, on page 29.
-28-
No.EX※※-OMV0023
