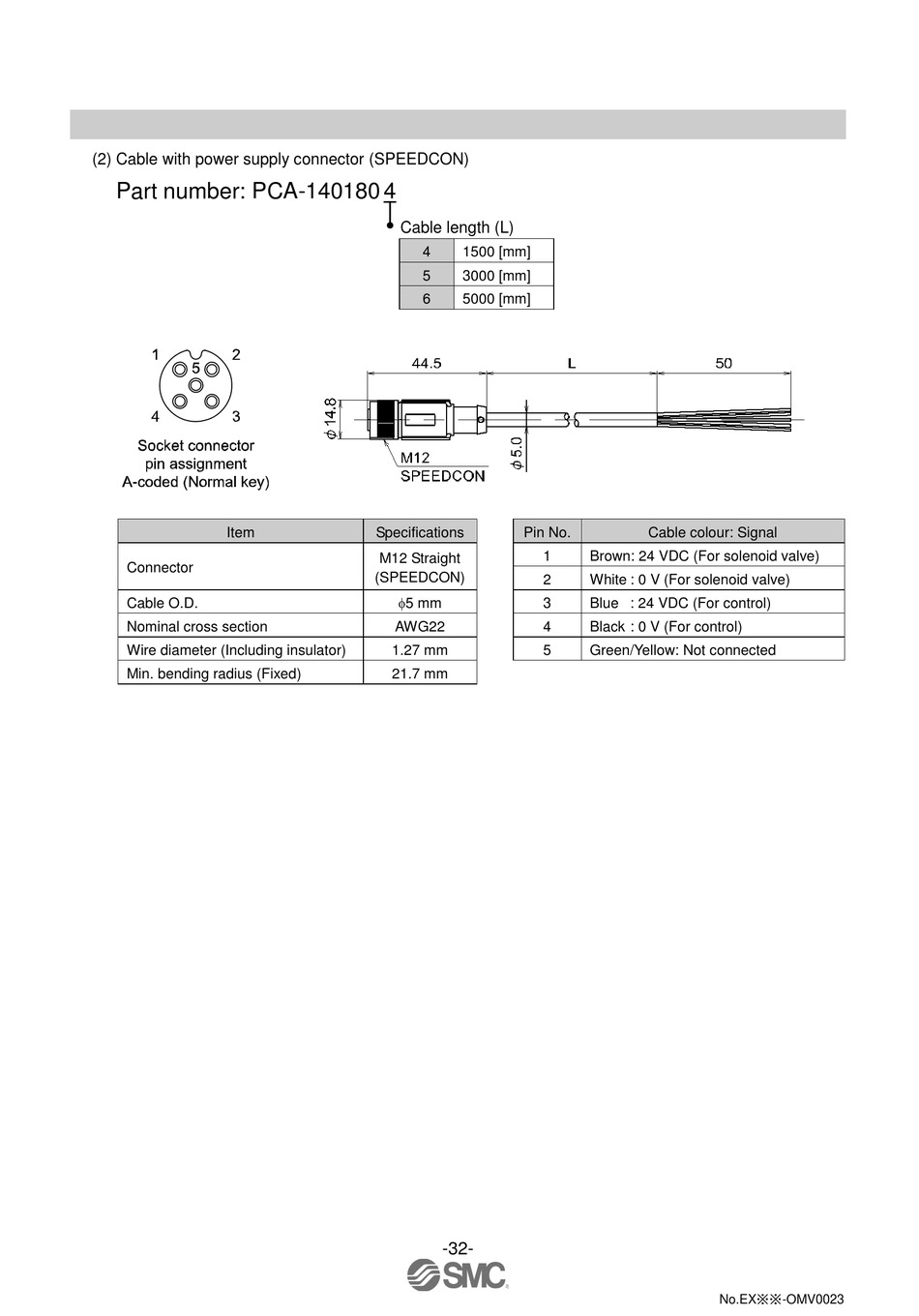

(2) Cable with power supply connector (SPEEDCON)
Part number: PCA-140180 4
Item
Connector
Cable O.D.
Nominal cross section
Wire diameter (Including insulator)
Min. bending radius (Fixed)
Cable length (L)
4 1500 [mm]
5 3000 [mm]
6 5000 [mm]
Specifications Pin No.
1
M12 Straight
(SPEEDCON)
2
5 mm
3
AWG22 4
1.27 mm 5
21.7 mm
-32-
Cable colour: Signal
Brown: 24 VDC (For solenoid valve)
White : 0 V (For solenoid valve)
Blue : 24 VDC (For control)
Black : 0 V (For control)
Green/Yellow: Not connected
