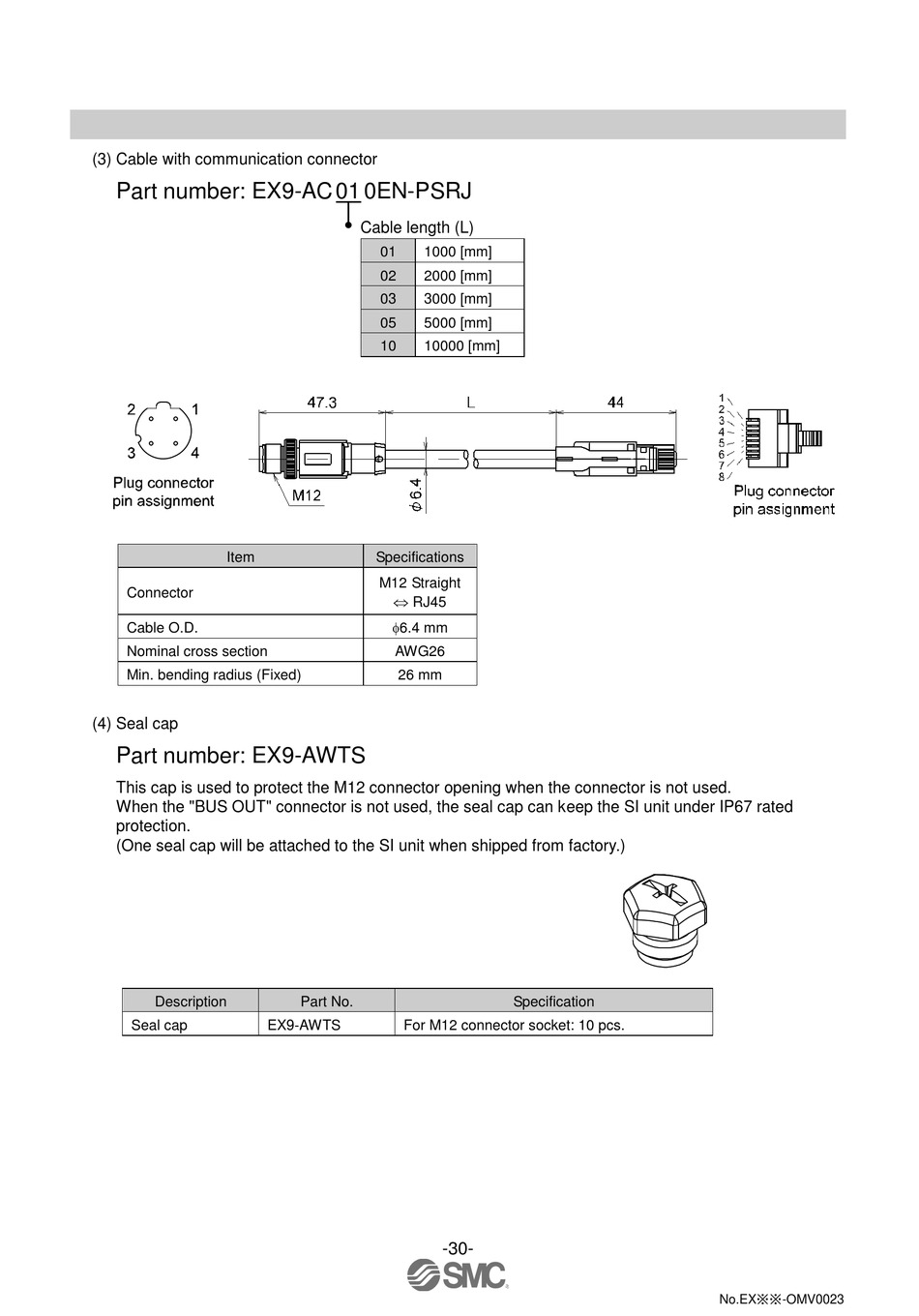

SMC Networks EX260-SPL1 Operating Manual page 31

(3) Cable with communication connector
Part number: EX9-AC 01 0EN-PSRJ
Item
Connector
Cable O.D.
Nominal cross section
Min. bending radius (Fixed)
(4) Seal cap
Part number: EX9-AWTS
This cap is used to protect the M12 connector opening when the connector is not used.
When the "BUS OUT" connector is not used, the seal cap can keep the SI unit under IP67 rated
protection.
(One seal cap will be attached to the SI unit when shipped from factory.)
Description
Seal cap
Cable length (L)
01 1000 [mm]
02 2000 [mm]
03 3000 [mm]
05 5000 [mm]
10 10000 [mm]
Specifications
M12 Straight
 RJ45
6.4 mm
AWG26
26 mm
Part No.
EX9-AWTS For M12 connector socket: 10 pcs.
Specification
-30-
No.EX※※-OMV0023
