○Power supply connector layout
The M12 connector cable has two types, SPEEDCON compatible and non-compatible. If both plug
and socket sides have connectors for SPEEDCON, the cable can be inserted and connected by
turning it a 1/2 of a rotation, leading to reduction in work hour.
A non-compatible connector can be connected to a compatible connector as well as an M12.

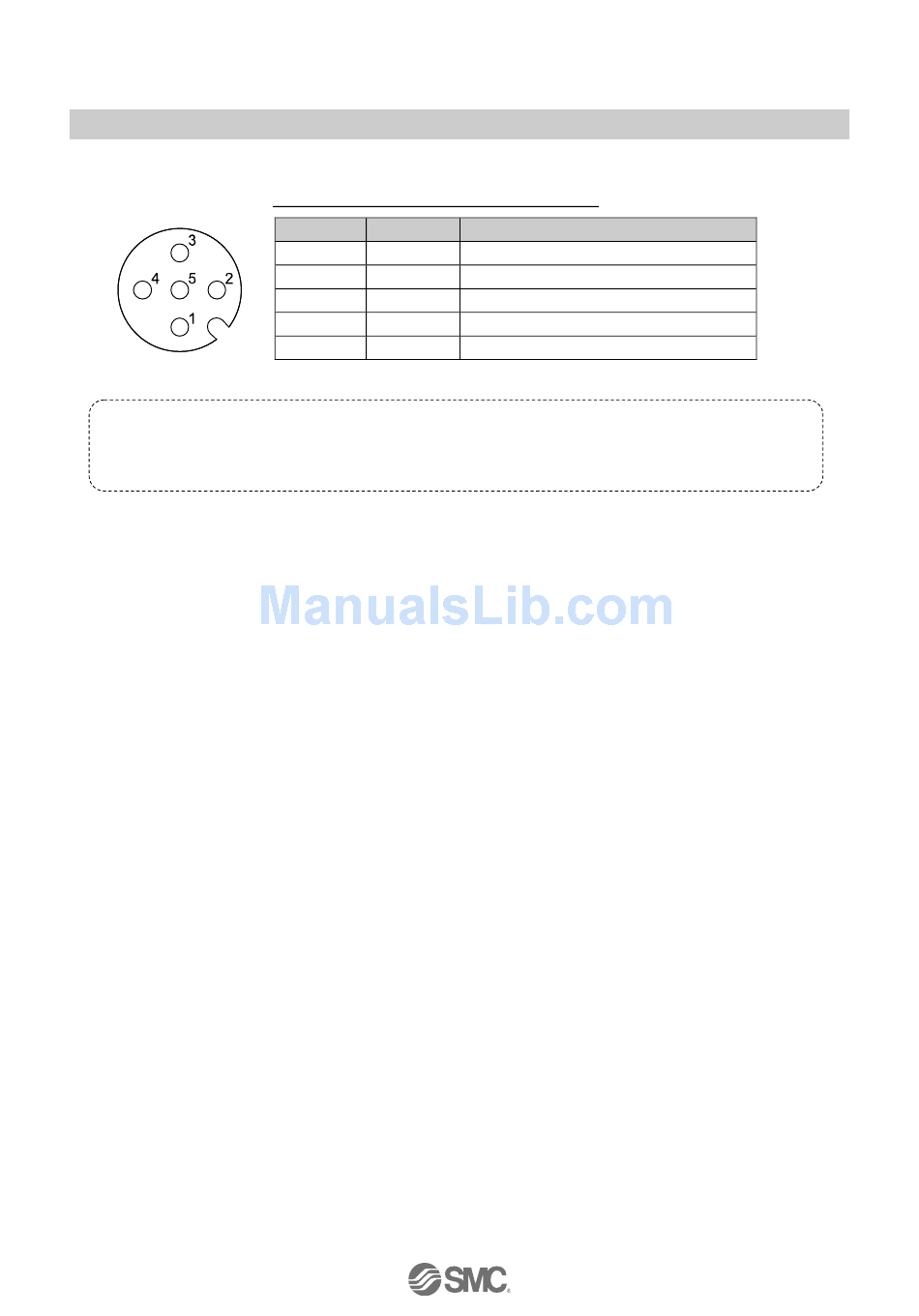

PWR: M12 5-pin plug, A-coded (SPEEDCON)
No. Designation
1 SV24 V
2 SV0 V
3 SI24 V
4 SI0 V
5 -
-12-
Description
+24 V for solenoid valve
0 V for solenoid valve
+24 V for SI unit operation
0 V for SI unit operation
Unused
No.EX※※-OMV0023
