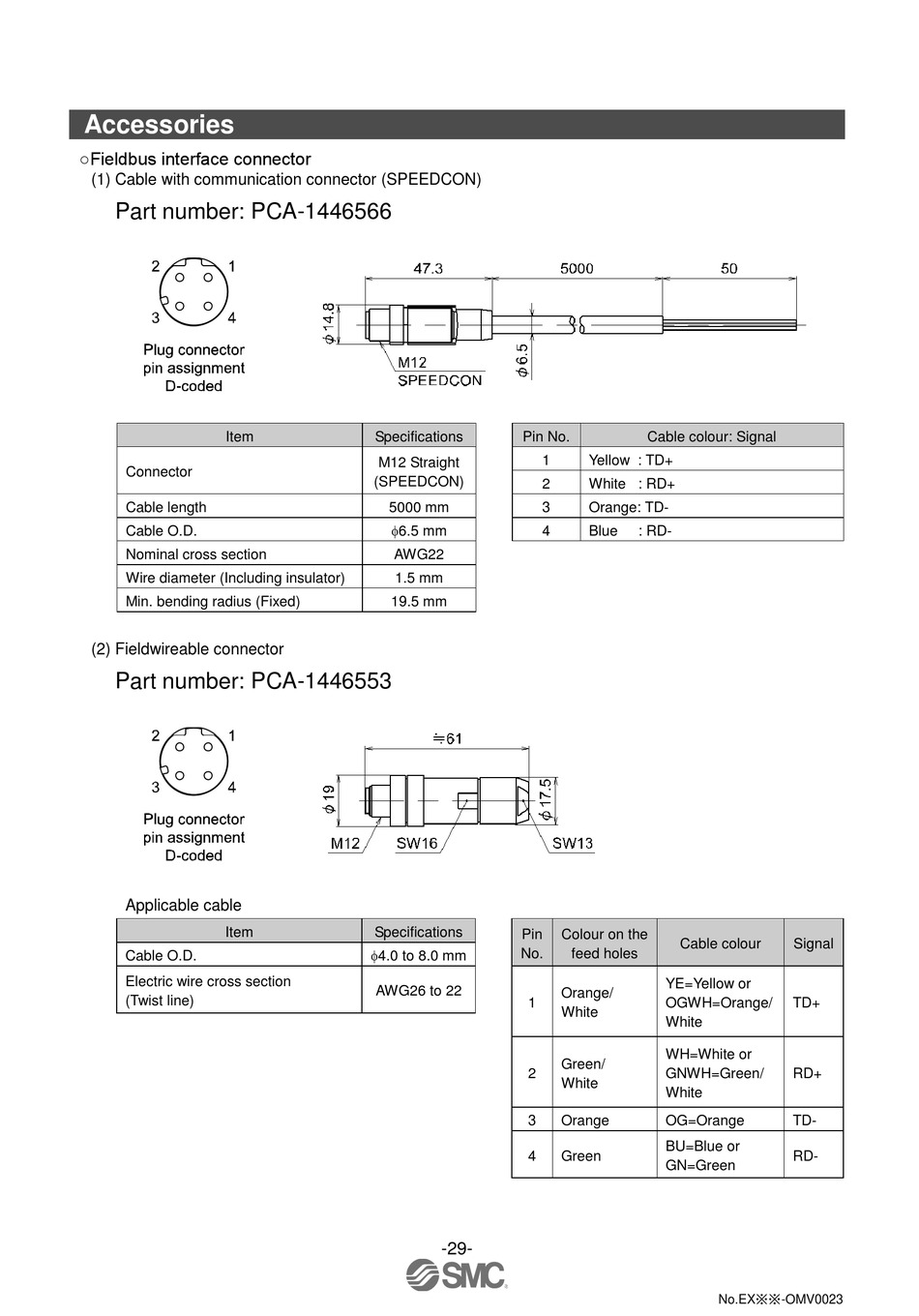

Accessories

○Fieldbus interface connector
(1) Cable with communication connector (SPEEDCON)
Part number: PCA-1446566
Item
Connector
Cable length
Cable O.D.
Nominal cross section
Wire diameter (Including insulator)
Min. bending radius (Fixed)
(2) Fieldwireable connector
Part number: PCA-1446553
Applicable cable
Item
Cable O.D.
Electric wire cross section
(Twist line)
Specifications Pin No.
1
M12 Straight
(SPEEDCON)
2
5000 mm 3
6.5 mm
4
AWG22
1.5 mm
19.5 mm
Specifications
Pin
4.0 to 8.0 mm
No.
AWG26 to 22
1
2
3
4
-29-
Cable colour: Signal
Yellow : TD+
White : RD+
Orange: TD-
Blue : RD-
Colour on the
Cable colour
feed holes
YE=Yellow or
Orange/
OGWH=Orange/
White
White
WH=White or
Green/
GNWH=Green/
White
White
Orange OG=Orange
BU=Blue or
Green
GN=Green
No.EX※※-OMV0023
Signal
TD+
RD+
TD-
RD-
