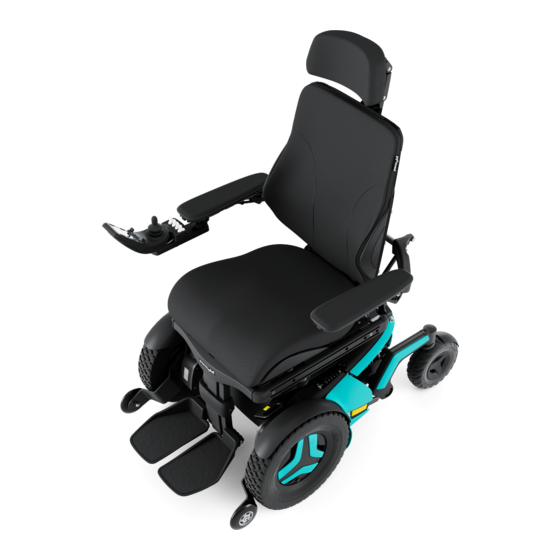

Page 1 User’s Manual American English F5 Corpus...
Page 3 Dear Permobil User We congratulate you on your choice of power wheelchair. Our goal is for you to continue to feel satisfied with your choice of both vendor and product. Your power wheelchair is designed to provide the highest possible comfort and safety while meeting both safety and environmental requirements.
Page 4 Text Produced and published by Permobil Edition: 8 Date: 2018-06-12 Order no: 334985 eng-US...
Page 5 300 Duke Drive Lebanon, TN 37090 Tel.: 800.736.0925 Fax: 800.231.3256 E-mail: TechSupport@permobil.com Web: www.permobilus.com Head office of the Permobil group Permobil AB Box 120 861 23 Timrå Sweden +46 60 59 59 00 Tel.: Fax: +46 60 57 52 50 E-mail: info@permobil.com...
Page 7: Table Of Contents
F5 Corpus Contents Important information..........................11 Warranty ............................12 Product approval ..........................13 Technical support..........................13 Cyber security ............................14 Reporting incidents ..........................14 Spare parts and accessories .........................14 Ordering documentation........................15 Scrapping and recycling ........................15 Safety instructions ............................17 Descriptions of admonitions........................18 Warnings and precautions ........................21 Getting to know your wheelchair ......................37 Overview............................39...
Page 8 Contents F5 Corpus Batteries ............................199 Transporting the wheelchair .......................205 Maintenance and repairs ........................217 Frequency of maintenance and inspection ....................221 Tool bag............................222 Cleaning ............................223 Battery replacement ..........................225 Batteries storage ..........................238 Wheels and tires..........................239 Main circuit breaker ..........................264 Brake release ...........................265 Positioning belt ..........................265 5.10...
Page 9 F5 Corpus Contents Diagnostics R-net LED control panel .....................283 Repairing defective units ........................288 Index ...............................289...
Page 11: Important Information
It is also possible to obtain information concerning our products from our website: www.permobil.com. All information, pictures, illustrations and specifications are based upon the product information available at the time these operating instructions were printed.
Page 12: Warranty
Unapproved replacement of parts If any part is replaced without approval from Permobil, the wheelchair warranty will become void. Permobil accepts no liability for any loss that occurs as a result of a control system component being opened, adjusted or modified without permission.
Page 13: Product Approval
• ISO 7176-25 Technical support In the event of technical problems, contact your dealer or call Permobil Inc. USA on 1-800-736-0925. Be prepared to provide the wheelchair serial number, located on the chassis, to ensure proper support. See 5.10 Serial number labels , Page 266.
Page 14: Cyber Security
This is usually the same person you were in contact with at the time of purchase. To get in touch with your contact, use the link at www.permobil.com. Open your country page and the contact page. The page provides the necessary contact information and a document to help you provide us with the information we need to investigate the incident.
Page 15: Ordering Documentation
F5 Corpus Important information Ordering documentation Should you need another copy of this manual, one may be ordered from Permobil. Ask for the order number specified on the back cover. Scrapping and recycling Contact Permobil for information about scrapping agreements in...
Page 16 F5 Corpus Important information...
Page 17: Safety Instructions
Permobil is not responsible for personal injuries or property damage resulting from any person’s failure to follow the warnings and instructions in this manual. Permobil is not responsible for injuries or damage resulting from failure to exercise good judgment. The final selection and purchasing decision about the type of power wheelchair to be used is the responsibility of the user and his or her healthcare professional.
Page 18: Descriptions Of Admonitions
F5 Corpus Safety instructions It is also of the utmost importance that you devote sufficient time to getting acquainted with the various buttons, functions and steering controls; the different seat adjustment possibilities, etc. of your wheelchair and its accessories before you begin using it.
Page 19 F5 Corpus Safety instructions WARNING! Warning admonition Indicates a hazardous situation which, if not avoided, could result in serious injury or death as well as damage to the product or other property. CAUTION! Caution admonition Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury as well as damage to the product or other property.
Page 20 F5 Corpus Safety instructions Provides information about the conditions or circumstances under which the information given applies.
Page 21: Warnings And Precautions
CAUTION! Operation Operation, driving If the wheelchair is equipped with lights, Permobil recommends Do not drive the wheelchair over any curbs or obstacles higher their use whenever you drive near public rights of way. Use than specified in the technical specifications section of the extreme caution when driving near unprotected edges, drops manual.
Page 22 F5 Corpus Safety instructions CAUTION! CAUTION! Operation, adjust seating system for Operation, pulling and minor impacts elevations Do not use the wheelchair to pull any kind of object and never Be sure to adjust the position of your seating according to the hang excessive weights on the backrest.
Page 23 F5 Corpus Safety instructions CAUTION! WARNING! Operation Modifications Do not let children drive the wheelchair without supervision. Do Do not modify your wheelchair or any of its components. Your not drive the wheelchair on public streets or roads. Obey all...
Page 24 Permobil recommends the use of securely fastened positioning belts at all times. When driving up a slope, try to keep moving at a steady speed.
Page 25 F5 Corpus Safety instructions WARNING! WARNING! Operation - turning Operation - inclines Do not drive the wheelchair where the sideways gradient is Turning your wheelchair at high speeds may cause it to topple greater than that set forth in the technical specifications section with personal injury as a result.
Page 26 F5 Corpus Safety instructions WARNING! CAUTION! Driving range Operation - freewheel mode In order to prevent the wheelchair from rolling away, make sure The driving range stated in the technical specifications of this it is on a level surface before releasing the brakes.
Page 27 F5 Corpus Safety instructions WARNING! WARNING! Passengers Center of balance The wheelchair is not intended to carry passengers, regardless The likelihood of the wheelchair‘s tipping and the point at of the age of the passenger. The maximum user weight for your...
Page 28 If there is any sign of damage or wear on precaution must be taken to reduce the distance between the any positioning belt or aids, immediately contact Permobil for a wheelchair and the place to which the user is transferring. Too replacement.
Page 29 Damage during transportation The wheelchair may only be transported in vehicles approved It is extremely important to inform Permobil as soon as possible for this purpose. The vehicle must be suitably designed, insured after the event if the wheelchair and its accessories have and equipped to transport a person in a wheelchair.
Page 30 • The vehicle must be equipped with a locking system the wheelchair. The wheelchair positioning belts and aids do approved by Permobil for the product concerned. For not provide protection in a traffic accident and do not replace a alternative vehicle securement options, please consult your vehicle mounted seatbelt.
Page 31 F5 Corpus Safety instructions CAUTION! WARNING! Driving in extreme weather conditions Environmental conditions Our wheelchairs are designed to withstand most adverse Protect the wheelchair from exposure to any type of moisture, weather conditions, however to minimize the risk of being including rain, snow, mud or spray.
Page 32 Permobil. Incorrect settings may result in unsafe operation of the wheelchair and cause it to become unstable or uncontrollable. CAUTION! Such modifications may also void the product’s warranty.
Page 33 If any of these circuits stops working, stop using the wheelchair immediately and consult an authorized Permobil distributor. WARNING! Any attempt to modify the safety circuits will result in unsafe...
Page 34 NOTICE laundry rooms or similar. If you are unsure how your wheelchair and its accessories Changing tires should be properly stored, contact your supplier or Permobil for Avoid the use of sharp-edged tools when working with tires. more information. WARNING!
Page 35 CAUTION! covered by the manufacturer’s warranty. EMC requirements For further information, contact Permobil to get in contact with a technical service supervisor. The electronics in a power wheelchair can be affected by external electromagnetic fields (e. g. from cell phones).
Page 36 F5 Corpus Safety instructions...
Page 37: Getting To Know Your Wheelchair
Power adjustable leg length........................44 Design and function........................45 3.3.1 Seat ..............................45 3.3.2 Chassis..............................57 Control panel ..........................61 3.4.1 Permobil Joystick Module for R-net ......................62 3.4.2 Joystick panel, R-net LED control panel ....................109 3.4.3 ICS seat control panel ........................116 Accessories ..........................124 3.5.1 ConnectMe ............................125...
Page 38 F5 Corpus Getting to know your wheelchair Stickers ............................144 3.6.1 Read the instructions..........................145 3.6.2 Main circuit breaker also battery isolator....................145 3.6.3 Wheel locks .............................146 3.6.4 Tie-down point ..........................146 3.6.5 Support wheels..........................147 3.6.6 Crush hazard ...........................147 3.6.7 Warning ............................148 3.6.8 Battery connections and main circuit breaker ..................149...
Page 39: Overview
F5 Corpus Getting to know your wheelchair Overview 1. Backrest 2. Control panel 3. Seat 4. Support wheel 5. Leg rest 6. Footplate 7. Headrest 8. Armrest 9. Chassis 10. Serial number label 11. Caster wheel 12. Drive wheel Figure 1. Main components that will be addressed in this manual.
Page 40: Technical Specifications
Getting to know your wheelchair The Permobil F5 Corpus is an electric front-wheel drive wheelchair for outdoor and indoor driving. The intended use of the F5 Corpus is to provide indoor and outdoor mobility to persons limited to a seating position and are capable of operating a powered wheelchair.
Page 41: Dimensions And Weight
F5 Corpus Getting to know your wheelchair Length44.8". Width25.5" - 31". Smallest transportation size Height 43" – 46". Length32.5" – 36.5”. Width 25.5" – 31". Height 32.5". 3.2.1 Dimensions and weight 44.8" Base length 25.5" - 31" Base width...
Page 42 F5 Corpus Getting to know your wheelchair Base height 43" – 46" Weight, including batteries 410 lbs Minimum transport length 31" (35" with support wheels) Minimum transport height 32.5" Minimum transport width 24" – 31" (incl. armrest) Seat plane angle 0°...
Page 43: Performance
F5 Corpus Getting to know your wheelchair 3.2.2 Performance Range 13 mi Maximum speed forward 7.5 mph Minimum braking distance from max. speed 9.2 feet Hill-climbing ability 12° 6° Safe slope Static stability downhill 13° 17° Static stability uphill Static stability sideways 14°...
Page 44: Electronics
F5 Corpus Getting to know your wheelchair 3.2.4 Electronics JSM-L-SV / PM 120 R-net drive electronics type 3.2.5 Batteries Recommended battery type 24 cells, gel Battery capacity 2x73 Ah Charging time 8 hours Weight 38.5 lbs 3.2.6 Control force Joystick 1.5 N...
Page 45: Design And Function
F5 Corpus Getting to know your wheelchair Design and function 3.3.1 Seat 3.3.1.1 Power seat functions The power seat functions are driven by an electric actuator which is steplessly controlled from the control panel of the wheelchair. The movement can be interrupted in any position and fixed there.
Page 46 F5 Corpus Getting to know your wheelchair WARNING! Risk of pinching while using seat functions There is a risk of pinch-point accidents when using the power seat functions. Make absolutely sure that nothing gets stuck between moving parts. Failure to do so may lead to personal injury.
Page 47 F5 Corpus Getting to know your wheelchair Power seat lift A power controlled seat lift allows stepless raising or lowering of the seat in order to adjust the height to tables, benches etc. When the seat lift is raised from the lowest position, the maximum speed of the wheelchair may be reduced.
Page 48 F5 Corpus Getting to know your wheelchair The power seat tilt control allows the preferred seat angle to be set within the operating range. WARNING! Tipping risk – driving with seat functions in use When operating the seat functions, the center of gravity is also shifted, Figure 3.
Page 49 F5 Corpus Getting to know your wheelchair Anterior tilt Following section only applies to wheelchairs equipped with anterior tilt. The anterior tilt function is only available on wheelchairs equipped with powered seat lift and seat tilt. The anterior tilt function has programmable positions to meet individual needs.
Page 50 F5 Corpus Getting to know your wheelchair WARNING! Anterior tilt Improper use of the anterior tilt feature on the wheelchair could cause the user to fall forward causing injury. Only use anterior tilt when recom- mended by a licensed clinical professional and/or ATP. Always use all positioning components on the wheelchair such as lap belts, chest straps, and knee blocks.
Page 51 F5 Corpus Getting to know your wheelchair Power backrest angle The backrest angle is adjustable (via the recline control), allowing the user to set a recline angle as needed within the operating range. WARNING! Risk of pinching while using seat functions There is a risk of pinch-point accidents when using the power seat functions.
Page 52 F5 Corpus Getting to know your wheelchair Power leg rest angle The leg rests can be raised to the preferred angle within the operating range. Figure 6. Power leg rests.
Page 53 F5 Corpus Getting to know your wheelchair Power adjustable leg length Power adjustable leg length permits steplessly variable adjustment of the height of the footplates (leg rest length). In this way, the pressure on the back of the thighs is easily adjusted.
Page 54 F5 Corpus Getting to know your wheelchair 3.3.1.2 Manual seat functions The seat is manually adjustable by adjusting the locking tubes with quick-acting locks to a number of fixed positions. Available functions may vary depending on the equipment fitted on your wheelchair.
Page 55 F5 Corpus Getting to know your wheelchair Backrest recline The angle of the backrest is adjusted via an adjustable locking tube with a quick-acting lock in a number of fixed positions. From an upright position the backrest can be inclined max. 45° backwards.
Page 56 F5 Corpus Getting to know your wheelchair Leg rest angle The angle of the leg rest is adjusted via an adjustable locking tube with a quick-acting lock. The leg rest is adjustable from the vertical position all the way up to the horizontal position and can be locked in a number of fixed positions in between.
Page 57: Chassis
Shock absorber adjustments should be performed by personnel who are well-acquainted with the design and functionality of the wheelchair. When adjustment is needed, contact an authorized Permobil service center. The drive unit consists of an electric motor with a gearbox and magnetic wheel lock.
Page 58 F5 Corpus Getting to know your wheelchair 3.3.2.3 Lights and reflectors The wheelchair is equipped with reflectors at the front and rear. Front lights, rear lights and turn signals are optional. Figure 12. Front reflectors. Figure 13. Back reflectors.
Page 59 F5 Corpus Getting to know your wheelchair 3.3.2.4 Batteries The wheelchair’s batteries are located under the covers of the chassis. Both batteries are easily accessible for maintenance and replacement. WARNING! Handling batteries - avoid short-circuit Exercise caution when using metallic objects during work with batteries. A short-circuit can easily cause an explosion.
Page 60 F5 Corpus Getting to know your wheelchair 3.3.2.5 Main circuit breaker The wheelchair is equipped with an automatic main circuit breaker that can be reset when it has been tripped. It also functions as a battery isolator and is controlled, on or off, by using the lever found in a slot in the rear cover of the chassis.
Page 61: Control Panel
Always switch off the power supply to the control panel before interrupting Figure 16. Charger socket. the power with the main circuit breaker. Control panel 3.4.1 Permobil Joystick Module for R-net....62 3.4.2 Joystick panel, R-net LED control panel..............109 3.4.3 ICS seat control panel........116...
Page 62: Permobil Joystick Module For R-Net
C. Screen. D. Left turn signals. E. Right turn signals. F. Main power On or Off; mode or profile selector. G. Maximum speed paddle, decrease or increase. H. Joystick. I. Horn button. Figure 17. Permobil joystick panel, 2,8” color display.
Page 63 F5 Corpus Getting to know your wheelchair The overview image on the preceding page shows the basic functions of the control panel. All buttons, toggle switches and the joystick may have additional functionality. The charging socket is located on the front of the panel Figure 18 Charger socket.
Page 64 F5 Corpus Getting to know your wheelchair 3.4.1.1 Charger socket This socket may only be used for charging or locking the wheelchair. Do not connect any type of programming cable to this socket. Do not use the socket as a power supply for any other electrical device.
Page 65 F5 Corpus Getting to know your wheelchair Power, mode and profile paddle The paddle switch is used to switch the control system on or off. Push the paddle forward to switch the power on and pull it backwards to switch the power off.
Page 66 F5 Corpus Getting to know your wheelchair Maximum speed paddle This paddle decreases or increases the wheelchair’s maximum speed. The maximum speed indicator on the display shows the current setting. Push the paddle forward to increase the setting and backwards to decrease the setting.
Page 67 F5 Corpus Getting to know your wheelchair Function Buttons There are a total of four buttons located on the left and right sides of the display. The symbols on the display show the current button function. Hazard warning button and screen symbol Only active if the wheelchair is fitted with lights.
Page 68 F5 Corpus Getting to know your wheelchair Left turn signal button and screen symbol Only active if the wheelchair is fitted with lights. This button switches the wheelchair’s left turn signal on or off. Push the button to switch the turn signal on and push it again to switch it off.
Page 69 F5 Corpus Getting to know your wheelchair 3.4.1.3 Jack sockets The external On/Off switch jack (A) allows the user to turn the control system on or off using an external device such as a buddy button. The external profile switch jack (B) allows the user to select profiles using an external device, such as a buddy button.
Page 70 F5 Corpus Getting to know your wheelchair Screen symbols The R-net drive screen has common components that always appear and components that only appear under certain conditions. A. Speedometer B. Profile name C. Battery indicator D. Clock E. Maximum speed indicator F.
Page 71 F5 Corpus Getting to know your wheelchair Battery indicator This displays available battery charge and can be used to alert the user of the status of the battery. Figure 29. Battery indicator. • Steady light: everything is in order. • Flashing slowly: the control system is functioning correctly, but charge the battery as soon as possible.
Page 72 F5 Corpus Getting to know your wheelchair Current profile The profile number describes which profile the control system is currently operating in. The profile text is the name or description of the profile the control system is currently operating in.
Page 73 F5 Corpus Getting to know your wheelchair Control system temperature This symbol is displayed when the control system has intentionally reduced its own power to protect itself against heat damage. Figure 35. Temperature control of system. Motor temperature This symbol is displayed when the control system has intentionally reduced the power to the motors to protect them against overheating.
Page 74 F5 Corpus Getting to know your wheelchair Settings Menu The Settings Menu permits the user to set the clock, display brightness, background color etc. Press the hazard flasher button for 2 seconds in order to open the menu. Scroll through the menu by moving the joystick back and forth.
Page 75 F5 Corpus Getting to know your wheelchair Distance The following section describes submenus related to Distance. Total Distance this value is stored in the power module. It is related to the total distance driven during the time that the current power module has been installed in the chassis.
Page 76 F5 Corpus Getting to know your wheelchair Backlight The following section describes submenus related to Backlight. Backlight this sets the backlight on the screen. It can be set between 0% and 100%. Auto Backlight the joystick module contains an ambient light sensor to automatically adjust screen brightness.
Page 77 F5 Corpus Getting to know your wheelchair IR Setup Applies to control panels equipped with integrated IR. A right deflection of the joystick will enter a submenu for learning and deleting IR codes. Refer to the IR section for more details; see...
Page 78 F5 Corpus Getting to know your wheelchair Programming The following section describes submenus related to Programming. Sleep sets the time after which the control system will go to sleep if an input device command is not received. Sounder Volume sets the volume of the sounder used to indicate button presses.
Page 79 F5 Corpus Getting to know your wheelchair Diagnostics allows the user to read diagnostic information from the control system. Figure 41. Two samples from the Diagnostic screen. Timers enables the user to view how many hours the chair has been driven for.
Page 80 F5 Corpus Getting to know your wheelchair General When a wheelchair is delivered equipped with a control panel containing Bluetooth®, the Bluetooth® functions are pre programmed to a basic setup. This setup is described below. The basic setup is prepared for pairing of up to four Bluetooth®...
Page 81 F5 Corpus Getting to know your wheelchair Settings Menu Press the hazard flasher button for 2 seconds in order to open the Settings Menu. Select Bluetooth®. Figure 42. Select Bluetooth® to get access the submenu. The screen now displays the submenu as illustrated.
Page 82 F5 Corpus Getting to know your wheelchair Pairing setup The control panel Bluetooth® must then be put into Discovery Mode by following this sequence description: • Deflect the joystick in the forward direction and hold until there is a beep. This takes approximately 10 seconds; then release.
Page 83 F5 Corpus Getting to know your wheelchair Pairing with a PC The following process should be carried out on a PC: • Open the window where you can select a Bluetooth® device to add to the PC. The name and path will differ slightly for different versions of Windows.
Page 84 F5 Corpus Getting to know your wheelchair Pairing with iDevice® The following process should be carried out on the iDevice®. • Select settings and set Bluetooth® to on. • Select R-net iDevice® X from the list of available devices. • R-net iDevice® X should appear as a paired device.
Page 85 F5 Corpus Getting to know your wheelchair To enter Bluetooth® mode Joystick module with 2,8" screen is more compact and lacks Mode and Profile buttons. Press button Mode button (A) a number of times until Bluetooth® mode is entered or press and hold key B for more than 2 seconds to enter Bluetooth®...
Page 86 F5 Corpus Getting to know your wheelchair When a Bluetooth® device is selected, the screen will show an icon representing the chosen device type. If only one Bluetooth® device is enabled, this screen will appear as soon as Bluetooth® mode is activated.
Page 87 F5 Corpus Getting to know your wheelchair Operating buttons in Bluetooth® mode A. Access settings, page 88. B. Return to drive mode, page 88. C. Left mouse click, page 89. D. Right mouse click, page 89. E. Scroll up or down, page 89.
Page 88 F5 Corpus Getting to know your wheelchair Buttons A to D, paddle switch E and joystick F, as shown in the previous overview illustration, have predefined functions when a Bluetooth® device is selected in Bluetooth® mode. The functions are described below.
Page 89 F5 Corpus Getting to know your wheelchair C – left mouse click Press button to perform a left mouse click. Figure 51. Left button for left mouse clicks. D – right mouse click Press button to perform a right mouse click.
Page 90 F5 Corpus Getting to know your wheelchair F – joystick functions Move cursor in desired direction by deflecting the joystick. Nudge forward to scroll up. Nudge back to scroll down. Left mouse click; left nudge. Right mouse click; right nudge.
Page 91 F5 Corpus Getting to know your wheelchair Notes - Bluetooth® mode settings changed after delivery Function Button, toggle switch or joystick...
Page 92 F5 Corpus Getting to know your wheelchair 3.4.1.6 IR mode Applicable only for R-net control panels with integrated IR, 3.5” or 2.8” color display with IR. General The infrared control, integrated in the joystick module, makes it possible to replicate commonly used IR devices, such as remote controls for TV, audio, cable, satellite or environmental controls.
Page 93 F5 Corpus Getting to know your wheelchair IR setup IR Setup menu can be accessed via the Settings Menu; see Settings Menu , Page 74. On entering the IR Setup menu, the default appliances will appear. When an appliance is selected, its commands are shown.
Page 94 F5 Corpus Getting to know your wheelchair Learning an IR code The IR receiver is located above the screen on the control panel, marked with an A in the figure. When learning a code, the remote control device must be held so that its IR transmitter points towards the IR receiver on the control panel, i.e.
Page 95 F5 Corpus Getting to know your wheelchair The commands for the appliance will appear on the screen as shown in figure. Select a command to learn. In this example; Channel Up will be selected from the TV MENU. Figure 59. The screen displayed when an appliance has been selected.
Page 96 F5 Corpus Getting to know your wheelchair Point the TV remote control towards the control panel’s IR receiver and press the channel up button twice. Figure 61. Point the remote control at the IR receiver. Press the button twice. If the Learn Code operation has been successfully completed, a green check mark will be displayed on the screen.
Page 97 F5 Corpus Getting to know your wheelchair If the Read Code operation fails, a red cross will be displayed on the screen. Please retry the Learn Code operation. Figure 63. Learning operation unsuccessful. After the code has been learned, scroll down to highlight Exit.
Page 98 F5 Corpus Getting to know your wheelchair Learning sequenced IR codes Multiple IR codes can be learned for a single command in the IR Setup menu. This enables multiple IR codes to be transmitted through a single command when in IR mode.
Page 99 F5 Corpus Getting to know your wheelchair Create a sequence • Select the command to use as the sequence initiator. In this example, TV – ON. • Select Learn Code, by deflecting the joystick to the right while the command is highlighted.
Page 100 F5 Corpus Getting to know your wheelchair Enabling and disabling IR codes IR codes can be enabled or disabled in the IR Setup menu. If a code is disabled, it will not transmit and will not appear in IR mode.
Page 101 F5 Corpus Getting to know your wheelchair Deleting IR codes To delete an IR code for a specific command, highlight the command in the appliance menu and deflect the joystick to the right. Then select the Delete Code option. Figure 67. Deleting codes for specific commands.
Page 102 F5 Corpus Getting to know your wheelchair To delete all IR codes stored in the control panel, select Delete All Codes within the IR Setup menu. Figure 69. Delete all codes from the IR Setup menu. 3.4.1.7 Locking and unlocking the control system Locking •...
Page 103 F5 Corpus Getting to know your wheelchair Unlocking • If the control system has switched off, move the paddle forward. • Deflect the joystick forward until the control system beeps. • Deflect the joystick rearward until the control system beeps.
Page 104 F5 Corpus Getting to know your wheelchair Maneuvering the seat 1. Push the mode paddle switch forward one or more times until a seat function icon appears in the control panel display. 2. Move the joystick to the left or right to select a seat function.
Page 105 F5 Corpus Getting to know your wheelchair Return to drive mode Push the mode paddle switch forward one or more times until a standard display image with speed indicator appears in the control panel display. Figure 72. Standard display image with speed...
Page 106 F5 Corpus Getting to know your wheelchair Memory Retrieving position from memory Some seat control systems can memorize three seat positions. The seat adjustment mechanism stores each memorized seat position. This makes it easy to retrieve a seat position saved earlier.
Page 107 F5 Corpus Getting to know your wheelchair Return to drive mode Push the mode paddle switch forward one or more times until a standard display image with speed indicator appears in the control panel display. Saving a seat position to memory 1.
Page 108 F5 Corpus Getting to know your wheelchair Return to drive mode Push the mode paddle switch forward one or more times until a standard display image with speed indicator appears in the control panel display. Figure 75. Save function activated.
Page 109: Joystick Panel, R-Net Led Control Panel
F5 Corpus Getting to know your wheelchair 3.4.2 Joystick panel, R-net LED control panel 3.4.2.1 General The control panel consists of a joystick and function buttons. At the front of the panel is the charger socket. The wheelchair may also be equipped with a seat control panel in addition to the control panel.
Page 110 F5 Corpus Getting to know your wheelchair 3.4.2.2 Charger socket This socket may only be used for charging or locking the wheelchair. Do not connect any type of programming cable to this socket. Do not use the socket as a power supply for any other electrical device.
Page 111 F5 Corpus Getting to know your wheelchair On/Off button The On/Off button switches on power to the control system electronics, which in turn supply power to the wheelchair’s motors. Figure 78. On/Off button. Horn button The horn will sound while this button is depressed.
Page 112 F5 Corpus Getting to know your wheelchair Hazard warning button Only available if the wheelchair is fitted with lights. This button switches the wheelchair hazards lights on or off. The hazards lights are used when the wheelchair constitutes an Figure 82. Hazard warning button and LED.
Page 113 F5 Corpus Getting to know your wheelchair Right turn signal button Only available if the wheelchair is fitted with lights. This button switches the wheelchair’s right turn signal on or off. Push the button to switch the turn signal on and push it again to switch it off.
Page 114 F5 Corpus Getting to know your wheelchair 3.4.2.5 Maximum speed indicator Speed Indicates the maximum speed set for the wheelchair. Driving profile For special applications, the wheelchair can be programmed with more than one driving profile. In this case, the indicator LEDs will instead display the selected driving profile.
Page 115 F5 Corpus Getting to know your wheelchair 3.4.2.6 Seat indicator On certain seats, the power seat lift, seat angle, backrest angle and leg rest angle functions are controlled by the control panel joystick. In this case, the active seat function is shown on the control panel seat indicator.
Page 116: Ics Seat Control Panel
F5 Corpus Getting to know your wheelchair 3.4.3 ICS seat control panel 3.4.3.1 General The seat’s powered functions may be controlled from the drive system control panel. On seats equipped with the control system ICS, the powered functions may also be controlled from the ICS control panel.
Page 117 F5 Corpus Getting to know your wheelchair Feedback The control panel provides feedback regarding the available seat functions, active seat function inhibits, active drive speed limits and active drive inhibits through its LEDs. The LED above the switch can assume three states: 1.
Page 118 F5 Corpus Getting to know your wheelchair • A flashing yellow LED means the seat function is inhibited in one direction, due to a safety limit. The switches below the icon will only move the seat in the safe direction.
Page 119 F5 Corpus Getting to know your wheelchair Seat lift The seat can be raised by pressing the upper part of the button and lowered by pressing the lower part. Figure 90. Seat lift. Backrest recline The backrest can be reclined by pressing the lower part of the button and brought back by pressing the upper part.
Page 120 F5 Corpus Getting to know your wheelchair Anterior tilt The seat can be tilted forward by pressing the upper part of the button and backward by pressing the lower part. When the seat is being tilted forward or backward, the seat will stop when it reaches neutral position.
Page 121 F5 Corpus Getting to know your wheelchair Seat-to-floor function The seat can be lowered to the floor by pressing the upper part of the button, and raised by pressing the lower part. Figure 96. Seat to floor function. Power footplates The footplates can be raised by pressing the lower part of the button and lowered by pressing the upper part.
Page 122 F5 Corpus Getting to know your wheelchair Shift Change the control button functions by pressing the Shift button. Change the function back again by pressing the Shift button. The symbol for the active function will light up. Figure 99. Shift.
Page 123 F5 Corpus Getting to know your wheelchair Return to a preset position 1. Enter memory mode by pressing and holding the memory button (8) for two seconds. While in memory mode, the memory LED flashes green. 2. Press and hold the appropriate Recall button (1, 2 or 3) to move the seating system to the preferred preset position.
Page 124: Accessories
4. Return to standard seat function operating mode by pressing the Memory button (8). Accessories Accessories for Permobil products are subject to continuous development. Contact your nearest Permobil dealer for more information on the accessories available for your product.
Page 125: Connectme
F5 Corpus Getting to know your wheelchair 3.5.1 ConnectMe A. Housing with push button. B. Manual C. EPDM rubber for installation. D. Cable with ICS connector. E. Cable with R-net connector. Figure 103. Overview ConnectMe kit.
Page 126 Getting to know your wheelchair ConnectMe is a cellular solution that provides communication between the Permobil wheelchair and Permobil cloud service. It is also used in near field communication for transfer of data between the wheelchair and a Bluetooth® device (e.g. smartphone).
Page 127 F5 Corpus Getting to know your wheelchair • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance would void the user´s authority to operate this equipment.
Page 128 • No transport or other related damages have occurred to the product. If something has been damaged or appears to be incorrect, please contact your dealer or Permobil for further information as soon as possible. • If ConnectMe is not behaving normally, power off your...
Page 129 • ConnectMe must be installed more than 7.87” from the user. • ConnectMe is solely made for Permobil power wheelchairs. Mounting ConnectMe to equipment other than a Permobil power wheelchair is prohibited. If a user fails to follow this warning, Permobil takes no responsibility for the resulting damage. WARNING!
Page 130 F5 Corpus Getting to know your wheelchair NOTICE Storage When ConnectMe is not attached to a Permobil wheelchair, store the product in a secure location to prohibit unauthorized access.
Page 131 • for safety research or wheelchair diagnosis purpose; • in response to an official request by law enforcement or other government agency; • for use in dispute resolution involving Permobil, its affiliates or sales / service organization; and • as otherwise required or permitted by law.
Page 132 F5 Corpus Getting to know your wheelchair WARNING! Airplane mode The ConnectMe device contains a radio transmitter. In certain areas radio transmission is not allowed and ConnectMe has to be set to airplane mode, see 3.5.1.8 Airplane mode . Examples of these types of areas include, but are not limited to: •...
Page 133 F5 Corpus Getting to know your wheelchair 3.5.1.4 Technical specifications Radio network GSM: Quad-band 850 / 900 / 1800 / 1900 MHz UMTS: RF Band: B1, B2, B5, B8 Network antenna: Internal Connectivity: Bluetooth 4.1 Connectivity antenna: Internal Positioning GNSS:...
Page 134 F5 Corpus Getting to know your wheelchair Dimensions and weight External connectors: 6-pin MODU, 4 pin RNET Weight: 0.13 Ibs, 0.32 Ibs (including cable) Rating Power Operation: Operational: 24 VDC, Imax = 430mA, Iavg = 60mA Standby: 24 VDC, Max 0.5 mA 3.94"...
Page 135 F5 Corpus Getting to know your wheelchair 3.5.1.5 Product approval ConnectMe fulfills the requirements of the following standards: EN 12184 EN 301 908-2 v7.1.1 EN 14971 EN 300 328 V1.9.1 EN 60601-1 + A1 EN 62311 EN 301 489-1 v1.9.2 ISO 7176-9 EN 301 489-7 v1.3.1...
Page 136 Certified according to PTCRB in North America Bluetooth: Declared bluetooth smart product Supported wheelchairs Chassis: M300 M400 This list is subject to change as ConnectMe support for wheelchairs will evolves. Contact your dealer or Permobil for further information about the current list of supported wheelchairs.
Page 137 F5 Corpus Getting to know your wheelchair ConnectMe complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause interference; and 2. This device must accept any interference, including interference that may cause undesired operation of the device.
Page 138 Numbers in parenthesis refer to QR code GS1 Application Identifiers Prod. Date (yymmdd): Date of manufacturing S/N: Serial number Item.no: Permobil internal item number with revision HVIN: Hardware Version Identification Number Figure 104. The serial number label of ConnectMe is...
Page 139 1. Make sure the main fuse is in “On” position. Please see section in your wheelchair manual. Go into seat mode by using ”Mode” button on the joystick. Permobil Joystick module with 2.8” screen is more compact and lacks Mode and Profile buttons. Use left paddle switch for mode selection.
Page 140 F5 Corpus Getting to know your wheelchair 2. Scroll through seat menus until menu M6 is shown. Figure 106. M6 menu. 3. Hold the joystick knob forward for 5 seconds. Figure 107. Time to hold the knob forward.
Page 141 1. Make sure the main fuse is in “On” position. Please see section in your wheelchair manual. Go into seat mode by using ”Mode” button on the joystick. Permobil Joystick module with 2.8” screen is more compact and lacks Mode and Profile buttons. Use left paddle switch for mode selection.
Page 142 F5 Corpus Getting to know your wheelchair 2. Scroll through seat menus until menu M6 is shown. Figure 110. M6 menu. 3. Hold the joystick knob forward for 5 seconds. Figure 111. Time to hold the knob forward.
Page 143 F5 Corpus Getting to know your wheelchair 4. The warning message ”Airplane Mode On” will disappear. ConnectMe is now fully operational again. Figure 112. “Airplane mode on” inactivated. 3.5.1.9 Turn off ConnectMe completely ConnectMe device is powered as long as the battery in the wheelchair is connected to its electronics.
Page 144: Stickers
Do not store ConnectMe in rooms susceptible to mist, dampness or water, such as pool areas, laundry rooms, or similar rooms. If you have questions about proper storage of the ConnectMe, contact your supplier or Permobil. Maintenance and Service Only perform the minor adjustments and maintenance as specified in the user’s manual.
Page 145: Read The Instructions
WARNING! Accident risk – Always replace missing stickers Never remove a sticker from the wheelchair. If a sticker becomes difficult to read or falls off, order a replacement sticker from Permobil. 3.6.1 Read the instructions The sticker indicates that there are instructions that must be read and understood before use or adjustment.
Page 146: Wheel Locks
F5 Corpus Getting to know your wheelchair 3.6.3 Wheel locks The sticker shows the wheel lock release lever positions in released and activated states. A description of wheel lock function is found on page 265. Figure 115. Wheel locks. 3.6.4...
Page 147: Support Wheels
F5 Corpus Getting to know your wheelchair 3.6.5 Support wheels The sticker indicates that the wheelchair is fitted with support wheels to reduce the risk of tipping when driving over obstacles, etc. They must always be fitted when you drive.
Page 148: Warning
F5 Corpus Getting to know your wheelchair 3.6.7 Warning The sticker indicates that special attention is required. Exercise extreme caution where this warning symbol appears. Failure to observe warnings may lead to personal injury, including damage to the wheelchair and other property.
Page 149: Battery Connections And Main Circuit Breaker
F5 Corpus Getting to know your wheelchair 3.6.8 Battery connections and main circuit breaker The stickers shows the polarity which differs depending on which battery capacity, 60 Ah or 73 Ah, the product is equipped with. The positive battery cable (+) is shown in red on the sticker.
Page 150 F5 Corpus Getting to know your wheelchair...
Page 151: Preparing For Use
F5 Corpus Preparing for use 4 Preparing for use Settings and adjustments......................153 4.1.1 Headrest............................153 4.1.2 Permobil headrest with link hardware ....................155 4.1.3 Backrest............................159 4.1.4 Armrest ............................162 4.1.5 Leg rest............................168 4.1.6 Footplates ............................171 4.1.7 Knee support............................173 4.1.8 Panel holder.............................176 4.1.9 Positioning belt ..........................181 Handling and driving .........................182...
Page 152 F5 Corpus Preparing for use 4.4.2 Air transportation ..........................214...
Page 153: Settings And Adjustments
F5 Corpus Preparing for use Settings and adjustments 4.1.1 Headrest Accessory This headrest has expanded adjustment options to give the user optimal comfort. The headrest can also be removed and remounted while preserving the same setting. Figure 122. Headrest overview...
Page 154 F5 Corpus Preparing for use 4.1.1.1 Removing headrest 1. Undo the handle (C) on the rear of the backrest. 2. Remove the headrest by lifting it straight up. 4.1.1.2 Mounting headrest Mount in the reverse order 4.1.1.3 Adjusting headrest height and depth 1.
Page 155: Permobil Headrest With Link Hardware
F5 Corpus Preparing for use 4.1.2 Permobil headrest with link hardware Accessory Figure 124. Removal of headrest. This headrest has expanded adjustment options to give the user optimal comfort. It is easy to find a correct fit for anyone and the headrest may be removed and installed while preserving the same settings.
Page 156 F5 Corpus Preparing for use 4.1.2.3 Headrest height 1. Undo the handle (B) at the back of the backrest. 2. Remove the headrest by lifting it straight up (A). 3. Adjust the height by changing the placement of the screw on the inside of the bracket.
Page 157 F5 Corpus Preparing for use 4.1.2.4 Headrest height and depth 1. Undo the screws located at each link. 2. Adjust the height and depth by angling the links as required. 3. Tighten the screws. Figure 126. Adjust height and depth.
Page 158 F5 Corpus Preparing for use 4.1.2.5 Headrest angle 1. Undo the front screw in the top link (A). 2. Adjust the headrest angle by freely changing the position of the headrest as required (B). 3. Tighten the screw. NOTICE Risk of damaging mechanism Do not put weight on the headrest while adjusting it.
Page 159: Backrest
F5 Corpus Preparing for use 4.1.3 Backrest 4.1.3.1 Removing backrest To make transportation of the wheelchair easier, the backrest can be removed in a few simple moves. 1. Remove the backrest cushion. It is fixed in place by means of Velcro on the rear of the cushion.
Page 160 F5 Corpus Preparing for use 4.1.3.2 Lumbar support The lumbar support consists of three back cushions with Velcro fastening which can be separated, depending on how much lumbar support is required. 1. Remove the backrest cushion. 2. Adjust the lumbar support as required.
Page 161 F5 Corpus Preparing for use 4.1.3.3 Trunk support The height of the trunk support is adjustable. 1. Remove the backrest cushion. 2. Undo the screw on the rear of the backrest holding the trunk support in place. 3. Adjust the trunk support as required.
Page 162: Armrest
F5 Corpus Preparing for use 4.1.4 Armrest WARNING! Risk of injury while adjusting armrests Do not subject the armrests to load while adjusting. 4.1.4.1 Armrest swivel This function is optional The armrest can be angled inwards or outwards in order to provide optimal comfort for the user.
Page 163 F5 Corpus Preparing for use Setting armrest swivel end position The end positions are set by moving one or two screws between three different positions underneath the armrest. Fold the armrests up to get easier access to the screws. 1. Fold up the armrest.
Page 164 F5 Corpus Preparing for use 1. Loosen the four screws on the rear of the backrest that secure the height of the armrest. Figure 134. Adjusting the armrest height. 2. Remove the adjustment crank. Figure 135. The adjustment crank is located in the...
Page 165 F5 Corpus Preparing for use 3. Adjust the armrests to the required position using the adjustment crank in the adjustment screw on the rear of the backrest. 4. Secure the height of the armrest by tightening the four screws on the rear of the backrest.
Page 166 F5 Corpus Preparing for use 4.1.4.4 Armrest angle The armrests are both individually foldable. The armrest angle can easily be adjusted for optimal comfort. 1. Loosen the two lock nuts on the adjustment bars. 2. Adjust the armrest angle by turning the adjustment bars.
Page 167 F5 Corpus Preparing for use 4.1.4.5 Armrest height and angle The following tools are necessary for this task: • 1 Allen key, 8 mm. The armrest height and angle is normally adjusted as described previously. However, for special needs, the armrests is adjustable individually for users who want a left and right arm rest at different heights and/or angles.
Page 168: Leg Rest
F5 Corpus Preparing for use NOTICE Armrest flexible position This type of adjustment should only be made for special needs. It may have negative effects on the movement of the armrest when raising or lowering the backrest WARNING! Risk of injury while adjusting armrests Do not subject the armrests to load while adjusting.
Page 169 F5 Corpus Preparing for use 4.1.5.1 Leg rest cover The leg rest cover must be removed in order to adjust the leg rests. 1. Remove the leg rest cover by undoing the two screws. 2. Pull the cover directly forward.
Page 170 F5 Corpus Preparing for use 4.1.5.2 Leg rest length The leg rest length is adjustable continuously and secured using two locking screws. 1. Remove the leg rest cover. 2. Undo the leg rest’s two inner locking screws. 3. Adjust the leg rest to the required length and secure by tightening the locking screws.
Page 171: Footplates
F5 Corpus Preparing for use 4.1.6 Footplates WARNING! Risk of injury while adjusting footplates Do not place any weight or load on the footplates while adjusting the footplates. 4.1.6.1 Footplate height The height of the footplates is individually and steplessly adjustable.
Page 172: Footplate Angle
F5 Corpus Preparing for use WARNING! Risk of injury – adjust floor-to-footplate clearance After adjustment, and with the seat lift in its lowest position, make sure there is sufficient clearance, at least 1 inch, between the ground and the footplate at all times when moving the leg rest in or out. Perform this test with the user sitting in the wheelchair with his or her feet on the footplates.
Page 173: Knee Support
F5 Corpus Preparing for use 4.1.7 Knee support For this task the following tools are necessary: • 1 Allen key 4 mm. • 1 Allen key 5 mm. WARNING! Leg rest actuator – do not solely use You can not solely operate the leg rest actuator when the knee support is fitted.
Page 174 F5 Corpus Preparing for use 4.1.7.1 Knee support depth The depth of the knee support can be adjusted to give the user optimal comfort. Rotate the knob clockwise, or counter clockwise, to adjust the knee support to a suitable depth.
Page 175 F5 Corpus Preparing for use 4.1.7.2 Knee support width The width of the knee supports can be adjusted to give the user optimal comfort. Loosen the two screws and adjust the knee support pad to a suitable position. Retighten the screws to fix into position.
Page 176: Panel Holder
F5 Corpus Preparing for use 4.1.7.3 Knee support height WARNING! Risk of injury - check tube lock Check that the tube is locked in position by pulling on the support frame upwards. Failure to lock the tube correctly may lead to personal injury.
Page 177 F5 Corpus Preparing for use 4.1.8.1 Rotational panel holder The location of the control panel is adjustable lengthwise for the optimal driving position. It is also possible to adjust the angle of the panel sideways to facilitate getting in and out of the wheelchair.
Page 178: Parallel Panel Holder
F5 Corpus Preparing for use Control panel sliding angle adjustment 1. Remove one of the screws. Choose the side that is desired to be sliding. Figure 148. Only remove one of the screws. 2. Angle the panel. 3. Refit the screw. Tighten the screw to the preferred friction.
Page 179 F5 Corpus Preparing for use Length adjustment 1. Undo the screw(s) on the underside enough to slide the panel holder. Figure 150. The position of the screws on the parallel panel holder. 2. Adjust the panel to the preferred position. Leave at least a gap of 0.4 inches between the armrest and the panel.
Page 180 F5 Corpus Preparing for use Adjusting the friction joint 1. Undo the screw to make the friction joint more loose. Figure 152. The screw’s position on the parallel panel holder. 2. Slide the panel to the preferred position. 3. Tighten the screw to keep it in position.
Page 181: Positioning Belt
F5 Corpus Preparing for use 4.1.9 Positioning belt Accessory There is an accessory rail on each side of the seat frame intended for attaching a positioning belt. etc. The positioning belt should be fitted in the rail's upper groove. 1. Screw the belt in place, with the snap lock on the side which best suits the user and the other part with the buckle on the opposite side.
Page 182: Handling And Driving
Failure to properly use positioning belts and other positioning aids may cause bodily injury. If there is any sign of damage or wear on any positioning belt or aids, immediately contact Permobil for a replacement. WARNING! Positioning belts and aids are not vehicle...
Page 183: General - Driving
F5 Corpus Preparing for use Also bear in mind the crush hazard when using the power seat lift and seat angle functions, especially if the wheelchair has been driven under tables, benches, etc. When driving outdoors, remember to drive very slowly down steep slopes and to take great care when driving on uneven surfaces, up slopes, on side slopes and over obstacles.
Page 184 F5 Corpus Preparing for use 1. Switch on the power. 2. Select a suitable driving profile with the Profile button (if the system is programmed for more than one driving profile). 3. Move the joystick carefully forward to drive forward or backward to back up.
Page 185: Manual Brake Release
F5 Corpus Preparing for use 4.2.2 Manual brake release The wheelchair is fitted with two manual brake releases acting on the magnetic wheel locks to allow manual movement of the wheelchair. WARNING! Wheel locks Do not release or engage the wheel locks unless power to the wheelchair is Figure 156.
Page 186 WARNING! Malfunctioning wheel locks Figure 157. Releasing wheel lock. When the wheel locks are released, the wheelchair cannot be driven. If it can be driven, contact an authorized Permobil service center as soon as possible.
Page 187 F5 Corpus Preparing for use 4.2.2.2 Engaging wheel locks 1. Switch off the wheelchair using the start button on the control panel. 2. Move the lever upwards to its uppermost position to engage the wheel lock. Figure 158. Engaging wheel locks.
Page 188: Support Wheels
F5 Corpus Preparing for use 4.2.3 Support wheels The wheelchair may be fitted with support wheels to reduce the risk of tipping when driving over obstacles, etc. They must always be fitted when you drive. Should your weight increase to more than 220 lbs or should you wish to increase the speed of your wheelchair Figure 159.
Page 189: Driving Technique
F5 Corpus Preparing for use 4.2.4 Driving technique The control panel electronics interpret joystick movements and move the wheelchair accordingly. No complex user techniques are required for normal driving, which is an advantage if the user is inexperienced. A good way to get started is simply to move the joystick in the direction you want to go.
Page 190 F5 Corpus Preparing for use CAUTION! Driving - surface conditions Never drive at full speed in narrow or confined spaces or on sloping or inclined surfaces. Use extra caution when driving the wheelchair on surfaces that have ridges that could cause the chair to steer in a different direction.
Page 191: Driving Restrictions
F5 Corpus Preparing for use 4.2.5 Driving restrictions WARNING! Risk of tipping over Do not allow the leg rest to hit the ground when climbing obstacles, driving on uneven surfaces or slopes or when a slope levels out. Make sure there is...
Page 192 F5 Corpus Preparing for use 4.2.5.1 Driving restrictions related to different surfaces Do not drive at high speed, avoid sudden stops and starts; avoid sudden evasive maneuvers or sharp turns and use extreme caution in any of the following situations: •...
Page 193 F5 Corpus Preparing for use 4.2.5.2 Driving over obstacles You may drive over obstacles up to 4 inches, as long as 4 of the 6 wheels stay in contact with the obstacle’s surface as the transition from front to rear takes place.
Page 194 F5 Corpus Preparing for use 4.2.5.3 Driving on side slopes Always exercise great caution when driving over side slopes. Avoid sudden evasive maneuvers and never drive so fast that you are unable to control the wheelchair safely and without risk.
Page 195 F5 Corpus Preparing for use 4.2.5.4 Driving downhill Always drive downhill at low speed and with great caution. Note that the distance required to stop will increase when driving downhill. Avoid braking suddenly and sudden evasive maneuvers and never Figure 163. Driving downhill.
Page 196 F5 Corpus Preparing for use WARNING! Risk of tipping when driving downhill Do not drive downhill on gradients greater than 12°. Because a raised seat lift, seat angle and/or back angle changes the center of gravity and increases the risk of tipping, only use these seat functions on flat surfaces and always drive with great caution and at low speed.
Page 197 F5 Corpus Preparing for use 4.2.5.5 Driving uphill Always drive uphill with great care. Avoid sudden evasive maneuvers and never drive so fast that you are unable to control the wheelchair safely and without risk. Figure 164. Driving uphill. WARNING! Risk of tipping on uneven surfaces Take great care when driving on side slopes with an uneven surface (e.g.
Page 198: Joystick Error
F5 Corpus Preparing for use 4.2.6 Joystick error 4.2.6.1 Joystick error at startup Do not move the joystick before, during or immediately after the control system is switched on. If the joystick is moved from the central position, a joystick error may be generated.
Page 199: Batteries
F5 Corpus Preparing for use 4.2.6.3 Joystick error LED panel While the control system checks if an error has occurred, the LEDs on the battery voltage indicator will wander backward and forward. If the control system detects an error in the wheelchair electronics, the battery voltage indicator LEDs will flash rapidly.
Page 200 F5 Corpus Preparing for use NOTICE Discharged batteries Should the batteries be drained completely, charge them again as soon as possible since completely drained batteries may reduce battery service life. To achieve the best service life, never let batteries discharge completely.
Page 201: Charging The Batteries
F5 Corpus Preparing for use 4.3.1 Charging the batteries If the wheelchair is switched on during charging process, the battery voltage indicator bars on the wheelchair control panel will climb to show that the battery is being charged. If the power on the wheelchair is turned On during the charging process, it must be switched off again and the charger disconnected before the wheelchair can be driven.
Page 202 Risk of fire or explosion - charging conditions Use only the charger supplied with your wheelchair or a charger recommended by Permobil. The use of other chargers may damage the batteries, the wheelchair electronics or the charger itself. It may also result in parts becoming overheated, which may entail a greater risk of fire.
Page 203 F5 Corpus Preparing for use WARNING! Risk for overheating, sparks or short-circuit To interrupt the charging process, turn off the power supply at the switch on the charger before removing the charging jack from the wheelchair’s charger socket. This is to avoid sparking and unnecessarily high wear on the charging contact.
Page 204 The main circuit breaker must be set to On to charge the batteries. Make sure the charger connector is fully inserted in the wheelchair’s charger socket. The wheelchair cannot be driven when the charger is connected. If it is possible to drive the wheelchair during charging, contact Permobil or your dealer.
Page 205: Transporting The Wheelchair
F5 Corpus Preparing for use Transporting the wheelchair 4.4.1 Vehicle transportation The wheelchair may only be transported in vehicles approved for this purpose. Check that the wheelchair is properly secured and that the wheel locks are engaged. When transporting it in a vehicle, the wheelchair Figure 169.
Page 206 F5 Corpus Preparing for use Figure 171. Front tie-down eyes. Figure 172. Rear tie-down eyes.
Page 207 If these requirements are not followed, the user can sustain bodily injuries or die. Permobil recommends that the wheelchair user is transferred to a vehicle seat and that he or she uses a factory-installed three-point seatbelt.
Page 208 F5 Corpus Preparing for use WARNING! Remove installed trays To reduce the risk of injury to the user and other vehicle occupants, wheelchair-installed trays that are not specifically designed for crash safety should: 1 1 . . be removed and secured separately in the vehicle, or 2 2 .
Page 209 F5 Corpus Preparing for use DANGER! Risk of injury – correct seatbelt positioning The correct position for the vehicle’s three-point seatbelt is on the inside of the wheelchair armrest. The three-point seatbelt should fit snug to the user’s body without anything in the way. Failure to correctly position the three- point seatbelt may cause injury and/or death, if the vehicle is in an accident.
Page 210 Preparing for use CAUTION! Damage during transportation It is extremely important to inform Permobil as soon as possible after the event if the wheelchair and its accessories have suffered transportation damage, damage during driving or damage from other causes. There is a risk that the wheelchair and its accessories can no longer be used safely and securely.
Page 211 Failure to properly use positioning belts and other positioning aids may cause bodily injury. If there is any sign of damage or wear on any positioning belt or aids, immediately contact Permobil for a replacement. WARNING! Secure loose objects during transportation Auxiliary wheelchair equipment, loose or mounted on the wheelchair, must either be secured to the wheelchair or removed from it.
Page 212 F5 Corpus Preparing for use WARNING! Securing the wheelchair in vehicles The wheelchair may only be secured in position using approved fastening straps or a locking system. The locking system must be approved for the Permobil product concerned. Secure the wheelchair by attaching approved fastening straps to the eyes at the front and rear, marked with yellow stickers.
Page 213 F5 Corpus Preparing for use 4.4.1.1 Car lock Dahl docking station See the Dahl docking station’s manual on how to operate it. Figure 174. The Dahl docking station. The wheelchair in this picture is generic. Permolock C3 See the Permolock C3 manual on how to operate it.
Page 214 F5 Corpus Preparing for use 4.4.2 Air transportation NOTICE Preparations for air transportation Airlines have different rules regarding wheelchair transportation. Please contact your specific airline for more information and to make sure the wheelchair can be transported safely. 4.4.2.1 Batteries Gel batteries: in most cases, gel batteries do not have to be removed from the wheelchair.
Page 215 F5 Corpus Preparing for use 4.4.2.2 The wheelchair’s dimensions and weight The wheelchair‘s weight and dimensions are important, depending on the size and type of airplane in which the wheelchair is to be transported. Always check with the airline what rules apply.
Page 216 F5 Corpus Preparing for use...
Page 217: Maintenance And Repairs
F5 Corpus Maintenance and repairs 5 Maintenance and repairs Frequency of maintenance and inspection................221 Tool bag ............................222 Cleaning............................223 5.3.1 Metal surfaces ..........................223 5.3.2 Plastics ............................224 5.3.3 Upholstery, cloth and vinyl .........................224 Battery replacement........................225 5.4.1 Removing batteries..........................225 5.4.2 Installing batteries ..........................232 Batteries storage .........................238...
Page 218 F5 Corpus Maintenance and repairs Main circuit breaker ........................264 Brake release ..........................265 Positioning belt..........................265 5.10 Serial number labels........................266 5.10.1 Serial number label on chassis ......................266 5.10.2 Serial number label R-net power module ....................267 5.10.3 Serial number label on the control panel ....................267...
Page 219 Maintenance by a qualified service technician Only qualified service technicians should perform the maintenance and repair specified in this manual. Read all instructions carefully before proceeding. If any questions arise, contact Permobil for assistance. NOTICE When replacing batteries or circuit breakers,...
Page 220 F5 Corpus Maintenance and repairs NOTICE Additional tools may be required Some repairs may require tools other than those supplied with the wheelchair.
Page 221: Frequency Of Maintenance And Inspection
F5 Corpus Maintenance and repairs Frequency of maintenance and inspection Permobil recommends compliance with the following maintenance and inspection schedule. Contact your authorized dealer for all service-related needs or questions. Maintenance and inspection schedule Daily Weekly Monthly Yearly Check battery level indicator and charge if necessary.
Page 222: Tool Bag
F5 Corpus Maintenance and repairs Maintenance and inspection schedule Daily Weekly Monthly Yearly Check that the brake release and the brake release lever work properly. Complete inspection, safety check and service performed by an authorized wheelchair dealer. Tool bag The wheelchair comes with a tool bag with the following contents for use for maintenance and minor repairs.
Page 223: Cleaning
Permobil product. Use only the following cleaning methods. In the case of severe soiling of the upholstery or damage to the surface finish, contact Permobil for information. CAUTION! Switch off the wheelchair before cleaning Always switch off the power supply to the wheelchair before cleaning.
Page 224: Plastics
F5 Corpus Maintenance and repairs Remove scuff marks and scratches from shiny surfaces using car polish, either liquid or paste. After polishing, apply soft car wax to restore the original surface gloss. 5.3.2 Plastics For normal cleaning, wash plastic surfaces with a soft cloth, mild detergent and hot water.
Page 225: Battery Replacement
F5 Corpus Maintenance and repairs Battery replacement 5.4.1 Removing batteries WARNING! Use safety gloves and safety goggles Always use safety gloves and safety goggles when working with batteries. Exercise caution when using metallic tools or other objects while working with batteries. Batteries are heavy and charged devices and must be handled with great caution.
Page 226 F5 Corpus Maintenance and repairs 1. Place the wheelchair on a level surface. If possible, raise the seat lift halfway up, to facilitate removal of the chassis top cover. 2. Switch off the power supply using the On/Off key on the control panel and switch the automatic main circuit breaker to Off.
Page 227 F5 Corpus Maintenance and repairs 3. Remove the two knobs holding the chassis top and front covers. Figure 178. The chassis covers are secured with two knobs. 4. Slide the top cover off the chassis. Figure 179. Top cover.
Page 228 F5 Corpus Maintenance and repairs 5. Pull the back cover off the dual locks and off the chassis. Figure 180. Back cover. Figure 181. An enlargement of the back cover going over the rear axle.
Page 229 F5 Corpus Maintenance and repairs WARNING! Do not load the seat Do not load the seat or the AP elevator during this operation. Any load on the seat or the AP elevator could cause permanent damage to the wheelchair or injuries on person(s) in the wheelchair or in its close vicinity.
Page 230 F5 Corpus Maintenance and repairs 10. Use the straps to pull the battery box out of the chassis. Figure 184. Straps for pulling out battery box.
Page 231 F5 Corpus Maintenance and repairs 11. Slide the battery terminal covers along the cables to access all four battery terminal screws. 12. Disconnect the cables from the four battery terminals. 13. Lift the batteries out of the battery box using the battery straps.
Page 232: Installing Batteries
E. Battery strap. Always use Permobil recommended batteries. Other replacement batteries F. Battery terminal cover. have not been tested for use with Permobil wheelchairs. G. Battery box pull-out strap. Figure 186. Battery box when pulled out from chassis. 1. Use the battery straps and lift the new batteries in reverse order...
Page 233 F5 Corpus Maintenance and repairs 2. Make sure the batteries are positioned correctly to bring terminals into the right position; refer to the wiring diagram. Connect the four wires to the correct terminals on the batteries as shown in the diagram. Also refer to the sticker inside of the cover.
Page 234 F5 Corpus Maintenance and repairs 4. Attach the cable that is connected to the front battery's right terminal in its cable holder. Figure 189. Attach the cable that is connected to the front battery's right terminal in its cable holder as shown.
Page 235 F5 Corpus Maintenance and repairs 6. Connect the right motor and inhibit cable connector (C). 7. Connect the left motor and bus cable connector (B). 8. Connect the control panel connector (A). Figure 191. Connectors (B) and (C); for connection.
Page 236 F5 Corpus Maintenance and repairs 10. Refit the rear chassis cover on to the chassis. Figure 193. Rear cover. Figure 194. An enlargement of the rear cover going over the rear axle.
Page 237 F5 Corpus Maintenance and repairs 11. Refit the top chassis covers on to the chassis. Figure 195. Top cover. 12. Refit the two knobs. Figure 196. The chassis covers are secured with two knobs.
Page 238: Batteries Storage
ON / OFF ON / OFF Figure 197. Main circuit breaker located under the Permobil logotype on the rear cover. Batteries storage • The wheelchair must not be stored in areas subject to condensation (steam or moisture on surfaces), e.g. utility rooms or similar.
Page 239: Wheels And Tires
F5 Corpus Maintenance and repairs 5.5.2 Long-term storage For long-term battery storage the room may be unheated, but to guard against battery corrosion, make sure the room is a few degrees warmer than its surroundings, as this will keep the room drier.
Page 240 F5 Corpus Maintenance and repairs F. Wheel hub, do not remove the hub from drive unit while performing service on the wheel.
Page 241 If a wheel bolt is removed for tire service, replace it with a new, unused bolt from Permobil and tighten it to the recommended torque. Also, inspect the drive axle and wheel rim for any damage. Damage to either part can cause the wheel bolt to loosen or fracture.
Page 242 F5 Corpus Maintenance and repairs 1. Switch off the main power switch on the control panel. Figure 199. On/Off symbol depending on model. 2. Jack up the wheelchair until the wheel turns freely. Figure 200. Use a jack or equivalent to lift up the...
Page 243 F5 Corpus Maintenance and repairs 3. Use the blocks to secure the chair further. Figure 201. Use two blocks on each side of the chassis. The wheels have been removed in this figure for a better view. Figure 202. Block location. The arrow shows the...
Page 244 F5 Corpus Maintenance and repairs 4. Remove the hub cap (the design may vary depending on markets and market regulations) by carefully levering it out using fingers on two edges of the hub cap. Figure 203. Use your fingers as follows on two edges of the hub cap.
Page 245 F5 Corpus Maintenance and repairs 5.6.1.2 Installing drive wheels 1. Fit the spacer (only on some models). 2. Fit the wheel onto the wheel hub. 3. Insert the three screws and the three washers. Tighten the screws no more than 11 lb.ft.
Page 246 F5 Corpus Maintenance and repairs 5. Push the hub cap (the design may vary depending on markets and market regulations) in place. 6. Remove the blocks. 7. Lower the wheelchair using a jack or equivalent. 5.6.1.3 Drive wheel rim Figure 207. The hub cap snaps when it is in place.
Page 247 F5 Corpus Maintenance and repairs 5.6.1.4 Taking the drive wheel rim apart WARNING! Risk of injury - release air from tire Before taking the wheel rim apart, release air from the pneumatic tire. Failure to do so may cause damage to the tire, rim and/or bodily injury.
Page 248 F5 Corpus Maintenance and repairs 5.6.1.5 Assembling the drive wheel rim Read all warnings contained in this section before filling the tires. Failure to do so may result in injury to the user and damage to the wheelchair and other property and also void any warranty applicable to the wheelchair.
Page 249 Insufficient tire pressure may result in abnormal wear and a shorter driving range. CAUTION! Maintenance by a qualified service technician Only qualified service technicians should perform the maintenance and repair specified in this manual. Read all instructions carefully before proceeding. If any questions arise, contact Permobil for assistance.
Page 250: Inflating Tires
F5 Corpus Maintenance and repairs 5.6.2 Inflating tires Read all warnings contained in this section before filling the tires. Failure to do so may result in injury to the user and damage to the wheelchair and other property and also void any warranty applicable to the wheelchair.
Page 251 F5 Corpus Maintenance and repairs CAUTION! Risk of injury if tire pressure is incorrect Before operating the wheelchair for the first time and regularly thereafter, check that the tire pressure meets the specifications in this manual. Check the tire pressure when the wheelchair experiences a significant change in temperature or altitude.
Page 252 F5 Corpus Maintenance and repairs CAUTION! Maintenance by a qualified service technician Only qualified service technicians should perform the maintenance and repair specified in this manual. Read all instructions carefully before proceeding. If any questions arise, contact Permobil for assistance.
Page 253: Casters
F5 Corpus Maintenance and repairs 5.6.3 Casters A. Spacer. B. Installing casters Wheel. C. Washer, 8,5x23x3. D. Screw, ISO 4762 M8x16 10.9 Fe/Zn/ TUF-LOK. E. Hub cap (the design may vary depending on markets and market regulations). Figure 210. Assembling the rim.
Page 254 F5 Corpus Maintenance and repairs The following tools are necessary for this task: • 1 Torque wrench. • 1 Allen key socket, 6 mm. • 1 Jack. • 4 Blocks for securing the wheelchair. 5.6.3.1 Removing casters 1. Switch off the main power switch on the control panel.
Page 255 F5 Corpus Maintenance and repairs 3. Use the blocks to secure the chair further. Figure 213. Use two blocks on each side of the chassis. The wheels have been removed in this figure for a better view. Figure 214. Block location. The arrow shows in the...
Page 256 F5 Corpus Maintenance and repairs 4. Remove the hub cap (E) by carefully prying it out using a screw driver. 5. Remove the screw (D) and the washer (C). 6. Pull the wheel off the shaft. Figure 215. Assembling the rim.
Page 257 If a wheel bolt is removed for tire service, replace it with a new, unused bolt from Permobil and tighten it to the recommended torque. Also, inspect the drive axle and wheel rim for any damage. Damage to either part can cause the wheel bolt to loosen or fracture.
Page 258 F5 Corpus Maintenance and repairs 1. Check that the wheel shaft and rim are undamaged. Clean to remove dirt and rust. Replace damaged parts. 2. Fit the spacer (A) on the axle. 3. Install the wheel (B) on the axle by hand without using any tools.
Page 259 F5 Corpus Maintenance and repairs 5.6.3.3 Taking the caster rim apart 1. Remove the caster from the wheel fork. See 5.6.3.1 Removing casters , Page 254. 2. If the tire is pneumatic, release the air. 3. Remove the three bolts with nuts which holds the inner and outer parts of the rim together.
Page 260 F5 Corpus Maintenance and repairs 5.6.3.4 Putting the caster rim together 1. Fit the two rim halves together with tire. 2. Tighten the three screws using a torque wrench. Tightening torque: 7.2 lb.ft. 3. Fit the wheel on to the wheelchair. See 5.6.3.2 Installing casters , Page 257.
Page 261: Inflating Casters
F5 Corpus Maintenance and repairs 5.6.4 Inflating casters Applies only if the wheelchair is fitted with pneumatic caster tires. Read all warnings contained in this section before filling the tires. Failure to do so may result in injury to the user and damage to the wheelchair and other property and also void any warranty applicable to the wheelchair.
Page 262 F5 Corpus Maintenance and repairs CAUTION! Risk of injury if tire pressure is incorrect Before operating the wheelchair for the first time and regularly thereafter, check that the tire pressure meets the specifications in this manual. Check the tire pressure when the wheelchair experiences a significant change in temperature or altitude.
Page 263 F5 Corpus Maintenance and repairs CAUTION! Maintenance by a qualified service technician Only qualified service technicians should perform the maintenance and repair specified in this manual. Read all instructions carefully before proceeding. If any questions arise, contact Permobil for assistance.
Page 264: Main Circuit Breaker
F5 Corpus Maintenance and repairs Main circuit breaker The main circuit breaker also functions as a battery isolator although it is referred to as the main circuit breaker in the user’s manual. The main circuit breaker is automatic and can be reset when it has tripped.
Page 265: Brake Release
Every month, check that the brake release and the brake release lever(s) are working properly. When the brakes are released, it must not be possible to drive the wheelchair. If it can be driven, contact an authorized Permobil service center as soon as possible. Positioning belt Accessory Figure 221.
Page 266: Serial Number Labels
F5 Corpus Maintenance and repairs 5.10 Serial number labels 5.10.1 Serial number label on chassis The serial number label is located on the lower, left hand side of the wheelchair chassis. Look between the rim spokes. Figure 222. Chassis identification number label.
Page 267: Serial Number Label R-Net Power Module
F5 Corpus Maintenance and repairs 5.10.2 Serial number label R-net power module Figure 224. Power module ID number. 5.10.3 Serial number label on the control panel The serial number label is only visible when the panel is removed from the panel holder.
Page 268 F5 Corpus Maintenance and repairs...
Page 269: Approved Locking Systems
F5 Corpus Approved locking systems 6 Approved locking systems • Dahl Docking System MKII...
Page 270 F5 Corpus Approved locking systems...
Page 271: Restrictions And Limitations
F5 Corpus Restrictions and limitations 7 Restrictions and limitations Support wheels ...........................272 7.1.1 Support wheels, restrictions ........................272 7.1.2 Wheelchairs with support wheels ......................272 7.1.3 Wheelchairs without support wheels ....................272 Speed restriction conditions .......................273 Conditions that limit seat movement ..................274 7.3.1...
Page 272: Support Wheels
F5 Corpus Restrictions and limitations Support wheels 7.1.1 Support wheels, restrictions The wheelchair is available in different configurations with and without support wheels. The purpose of these wheels is to reduce the risk of tipping forward when traveling at higher speeds. The weight, speed and stability information below will help achieve the right configuration for the user.
Page 273: Speed Restriction Conditions
F5 Corpus Restrictions and limitations • Max speed is limited to 6 mph. Speed restriction conditions Speed When or when or when or when restriction Seat Back angle Tilt angle Leg rest Low speed elevated ≥150º -6º - -10º angle >150º...
Page 274: Conditions That Limit Seat Movement
F5 Corpus Restrictions and limitations Conditions that limit seat movement 7.3.1 Actuator end limits excluded Conditions > When or when or when Function Tilt back angle Seat lift stopped >130º and rear of seat raised less than 5” when user weight >220 lbs...
Page 275 F5 Corpus Restrictions and limitations Conditions > When or when or when Function Tilt back angle Tilt back angle Recline stopped ≥180º ≤85º Total leg rest Total leg rest Leg rest stopped angle ≤93° angle ≤ 98° when anterior when anterior tilt >-10°...
Page 276 F5 Corpus Restrictions and limitations...
Page 277: Troubleshooting
F5 Corpus Troubleshooting 8 Troubleshooting Troubleshooting guide........................278 Diagnostics R-net LCD control panel ..................279 8.2.1 General............................279 8.2.2 Diagnostic screens ..........................280 8.2.3 Example of a screen showing a system fault ..................282 Diagnostics R-net LED control panel ..................283 8.3.1 Battery voltage indicator ........................283 8.3.2...
Page 278: Troubleshooting Guide
Note that the guide cannot describe all the problems and events which may occur and you should always contact your service provider or Permobil in case of doubt. Possible cause Remedy Event The wheelchair does not start.
Page 279: Diagnostics R-Net Lcd Control Panel
F5 Corpus Troubleshooting Possible cause Remedy Event The wheelchair stops while being driven. The cable connection to the control Insert the cable in the control panel. panel has come loose. Main circuit breaker tripped. See page 264. The wheelchair can only be driven at Seat lift or seat angle raised too high.
Page 280: Diagnostic Screens
F5 Corpus Troubleshooting 8.2.2 Diagnostic screens 8.2.2.1 Current diagnostic screen When the control system’s integrated protection circuits have tripped so that the control system can no longer operate the wheelchair, a diagnostic screen is displayed in the control panel display.
Page 281 Unapproved replacement of parts If any part is replaced without approval from Permobil, the wheelchair warranty will become void. Permobil accepts no liability for any loss that occurs as a result of a control system component being opened, adjusted or modified without permission.
Page 282: Example Of A Screen Showing A System Fault
F5 Corpus Troubleshooting 8.2.3 Example of a screen showing a system fault 8.2.3.1 Identified module The system fault indicator is displayed on the screen when the control system module has detected a problem. The codes below indicate where the problem is located.
Page 283: Diagnostics R-Net Led Control Panel
F5 Corpus Troubleshooting Diagnostics R-net LED control panel 8.3.1 Battery voltage indicator Each time the wheelchair is started, parts of its electronics are checked. When a fault occurs in these parts, it is displayed on the control panel battery voltage indicator and the indicator for speed or driving profile in the form of one or more flashing LEDs.
Page 284: Slowly Flashing Red Leds, 1-2 Leds
F5 Corpus Troubleshooting 8.3.3 Slowly flashing red LEDs, 1–2 LEDs The batteries must be charged immediately. 8.3.4 Rapidly flashing, 1–10 LEDs A fault has been detected in the wheelchair‘s electronics and the wheelchair may not be driven. 1. Switch off the wheelchair.
Page 285 Unapproved replacement of parts If any part is replaced without approval from Permobil, the wheelchair warranty will become void. Permobil accepts no liability for any loss that occurs as a result of a control system component being opened, adjusted or modified without permission.
Page 286: Example Of Error Messages And Remedies
F5 Corpus Troubleshooting 8.3.5 Example of error messages and remedies Remedy Event Indication 1 LED Check the condition of the batteries. Check the contact between the Low battery voltage battery and the control unit. 2 LEDs Check the connection of the left drive motor.
Page 287 F5 Corpus Troubleshooting Remedy Event Indication 8 LEDs Check the contacts to the output stage. Control system error 9 LEDs Check the contacts to the magnetic brakes. Failure in brake circuit 10 LEDs Check the battery and the contacts between the battery and the output High battery voltage stage.
Page 288: Repairing Defective Units
Apart from specific OEM-approved spare parts, there are no replaceable parts in the R-net control system. Contact Permobil for further information on OEM-approved spare parts. Defective units must be sent for repair to Permobil or an authorized Permobil service center.
Page 289 F5 Corpus Index Index Backrest, adjustment ....159 ConnectMe ......126 Backrest, remove ....... 159 Control panel R-net LED, Accessories........ 124 Batteries........59 diagnostics....... 283 Accessories, ordering....14 Batteries, charging ....199, 238 Control panel seat, ICS ....116 Admonitions, descriptions .... 18 Batteries, storage......
Page 290 F5 Corpus Index Drive, joystick......189 Driving restrictions ....191 Headrest, adjust ......155 Leg length, power adjustable..120 Headrest, adjustment....153 Leg rest angle ......56 Leg rest angle, power ....52 Leg rest angle, seat control Emergency stop, R-net LCD..73 panel........
Page 291 R-net LED control panel, Permobil headrest, height diagnostics....... 283 adjustment ......156 Reflectors ........58 Permobil headrest, install.... 155 Permobil headrest, remove ..155 Technical specifications, Permobil Joystick Module for ConnectMe......133 R-net ........63 Technical support ......13 Scrapping and recycling....15 Positioning belt ......
Page 292 F5 Corpus Index Transporting the wheelchair by vehicle ........205 Troubleshooting guide....278 Trunk support......161 Turn off ConnectMe ....143 Unlock the control system, R- net LCD ......... 102 Uphill, drive ......197 Warranty ........12 Wheel locks .......185, 265 Wheels ........
Page 294 7 330818 313003...

Permobil F5 Corpus User Manual
