When cutting through the covering to re-
move it, cut with only enough pressure
to only cut through the covering itself. Cutting
into the balsa structure may weaken it.
Put the vertical stabilizer into the in the top
of the horizontal fin. The bottom edge of the
stabilizer should also be firmly pushed against
the top of the horizontal stabilizer.
Horizontal 90º
Stabilizer.
C/A glue.
Elevator and rudder pushrods assembly follow pictures below.
M2 clevis.
Attach to servo arm in fuselage.
16
.
Vertical
Stabilizer.
Hinge.
Instruction Manual.
Epoxy.

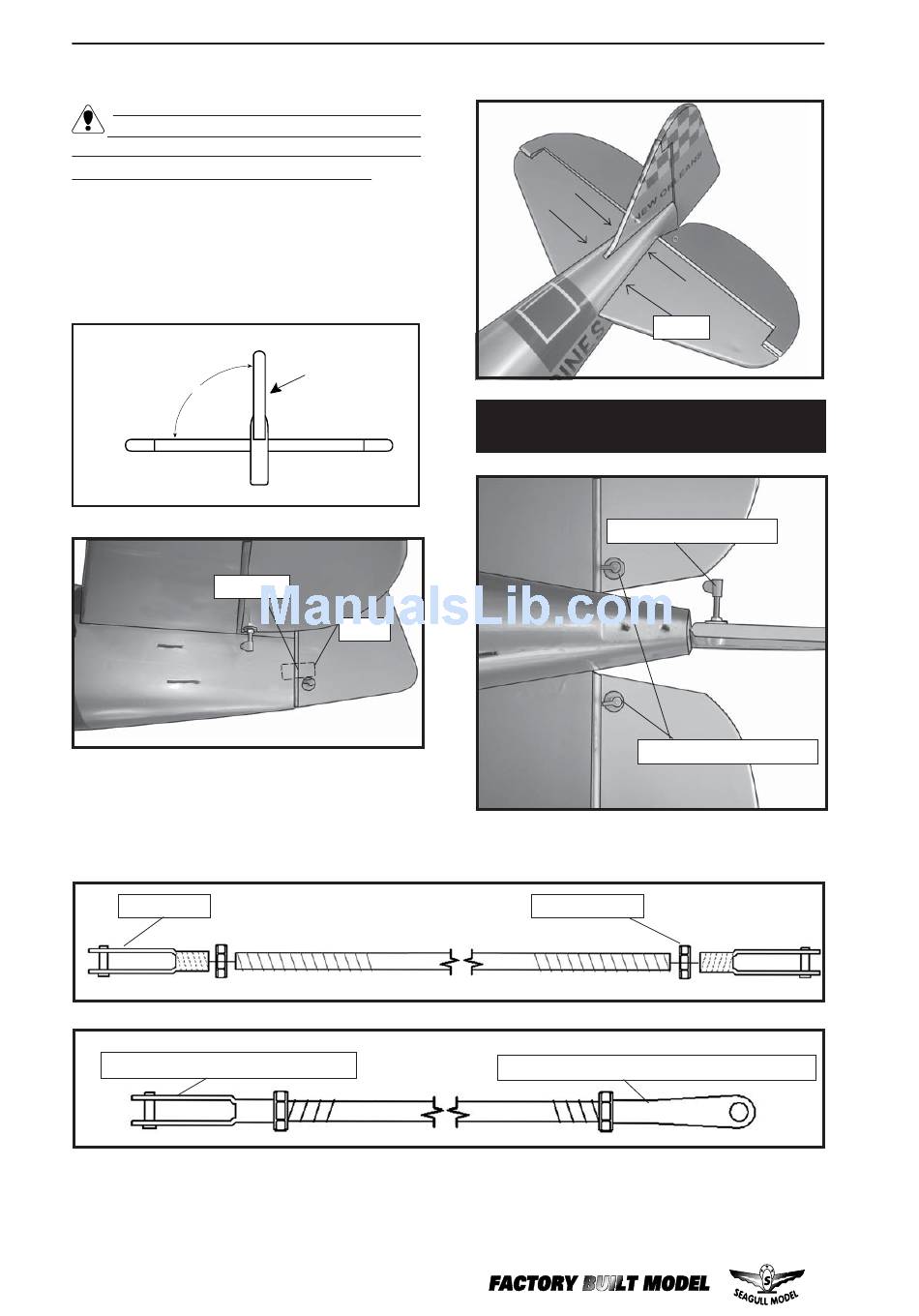

ELEVATOR - RUDDER PUSHROD
INSTALLATION.
Rudder control horn.
Elevator control horn.
M2 Lock nut.
Attach to elevator - rudder control horn.
