Chapter 2: Jumpers and Connectors

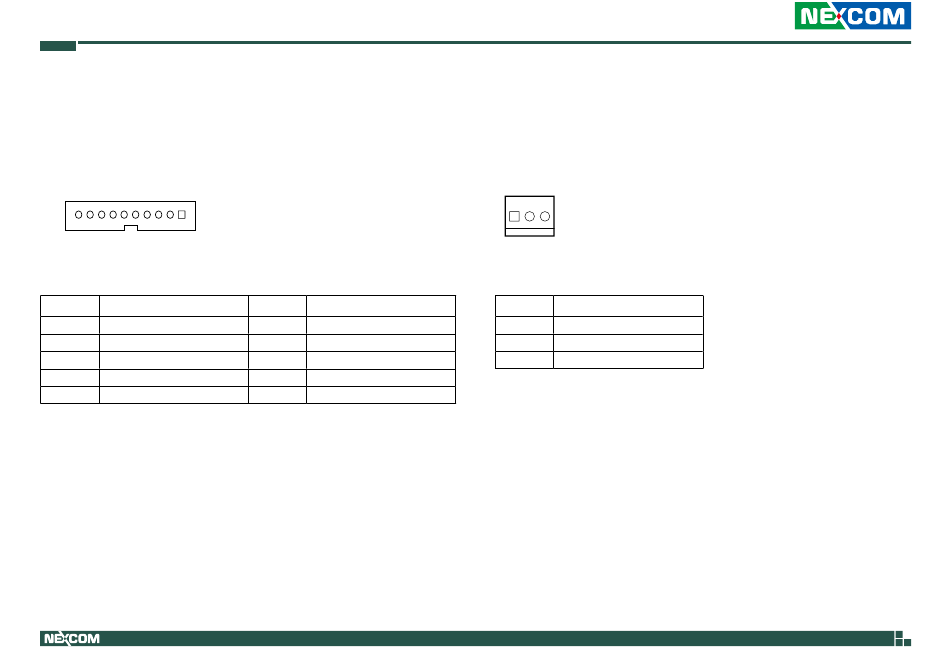

TPM Connector

Connector type: 1x10 10-pin header
Connector location: TPM1
10
1
Pin
Definition
1
GND
3
S_ILB_LPC_CLK_1
5
S_ILB_LPC_AD_3
7
S_ILB_LPC_AD_1
9
ILB_LPC_SERIRQ
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
PLTRST_3P3#
4
S_ILB_LPC_FRAME#
6
S_ILB_LPC_AD_2
8
S_ILB_LPC_AD_0
10
+3.3V

System Fan Connector

Connector type: 1x3 3-pin Wafer
Connector location: SYSF1
1
3
Pin
Definition
1
GND
2
+12V
3
FAN_SPEED
27
NEX 650-ADU User Manual
