Chapter 2: Jumpers and Connectors

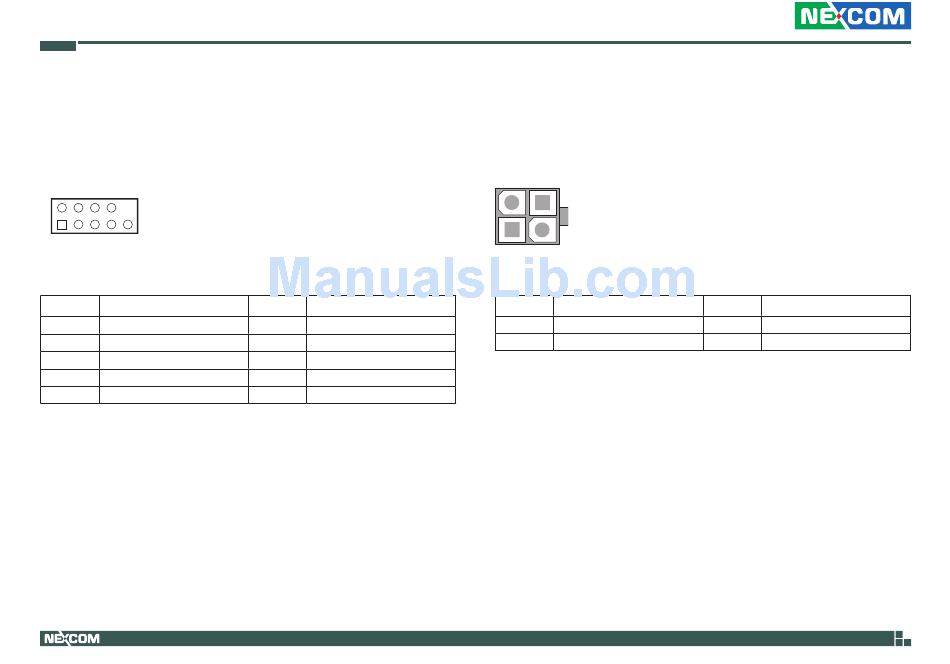

System Panel Connector

Connector type: 2x5 10-pin header
Connector location: F_PANEL1
2
10
1 9
Pin Definition
1 HDD_LED+
3 HDD_LED#
5 GND
7 RST
9 N/A
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 +5VSB
4 PWR_LED#
6 PANSWIN#
8 GND

ATX +12V Power Connector

Connector type: 2x2 4-pin header
Connector location: ATX12V1
2 4
1 3
Pin Definition
1 GND
3 +12V
13
Pin Definition
2 GND
4 +12V
