1.7.1

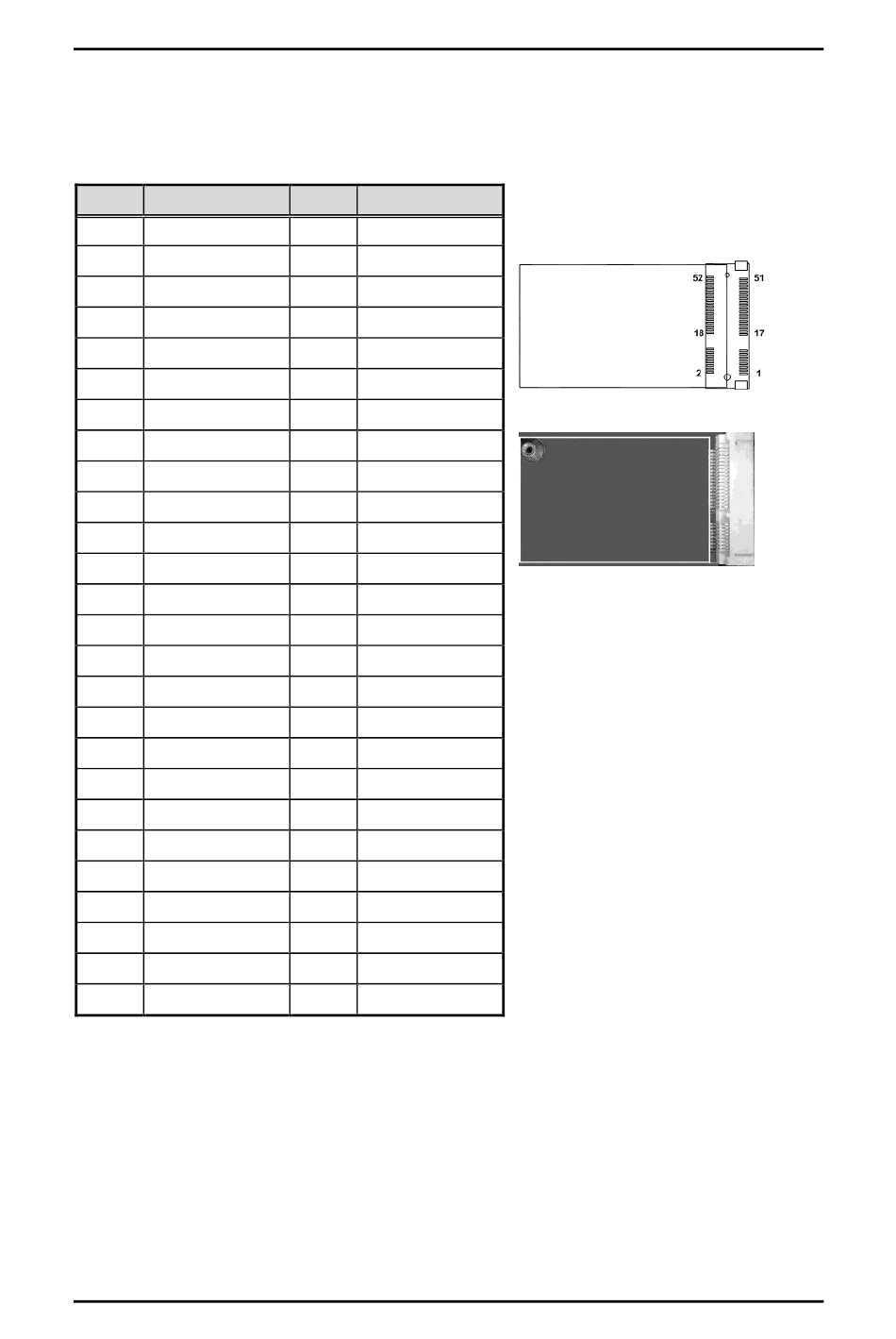

MINI CARD SLOT (CN3)

There is a PCI-Express Mini Card connector on the top side applying USB 2.0. It supports an
USB mini card.
Pins
Signals
1
W AKE#
3
No use
5
No use
7
CLKREQ#
9
GND
11
REFCLK-
13
REFCLK+
15
GND
17
No use
19
No use
21
GND
23
PE_RXN3/
25
SATA_RXP
PE_RXP3/
27
GND
SATA_RXN
29
GND
31
PE_TXN3/
33
PE_TXP3/
SATA_TXN
35
GND
SATA_TXP
37
GND
39
+3.3VSB
41
+3.3VSB
43
GND
45
No use
47
No use
49
No use
51
No use
Introduction
Pins
Signals
2
+3.3VSB
4
GND
6
+1.5V
8
No use
10
No use
12
No use
14
No use
16
No use
18
GND
20
W _DISABLE#
22
PERST#
24
+3.3VSB
26
GND
28
+1.5V
30
SMB_CLK
32
SMB_DATA
34
GND
36
USB_D8-
38
USB_D8+
40
GND
42
No use
44
No use
46
No use
48
+1.5V
50
GND
52
+3.3VSB
IPC962/IPC964 Series User's Manual
