Important
Be sure to read and understand the entire
instruction manual before installing or operating
the flame detection system. Any deviation from
the recommendations in this manual may impair
system performance and compromise safety.
attEntIon
The X5200 includes the Automatic Optical Integrity
( o i
) feature — a calibrated performance test that
®
is automatically performed once per minute to
verify complete detector operation capabilities. no
testing with an external test lamp is required.

DESCRIPTION

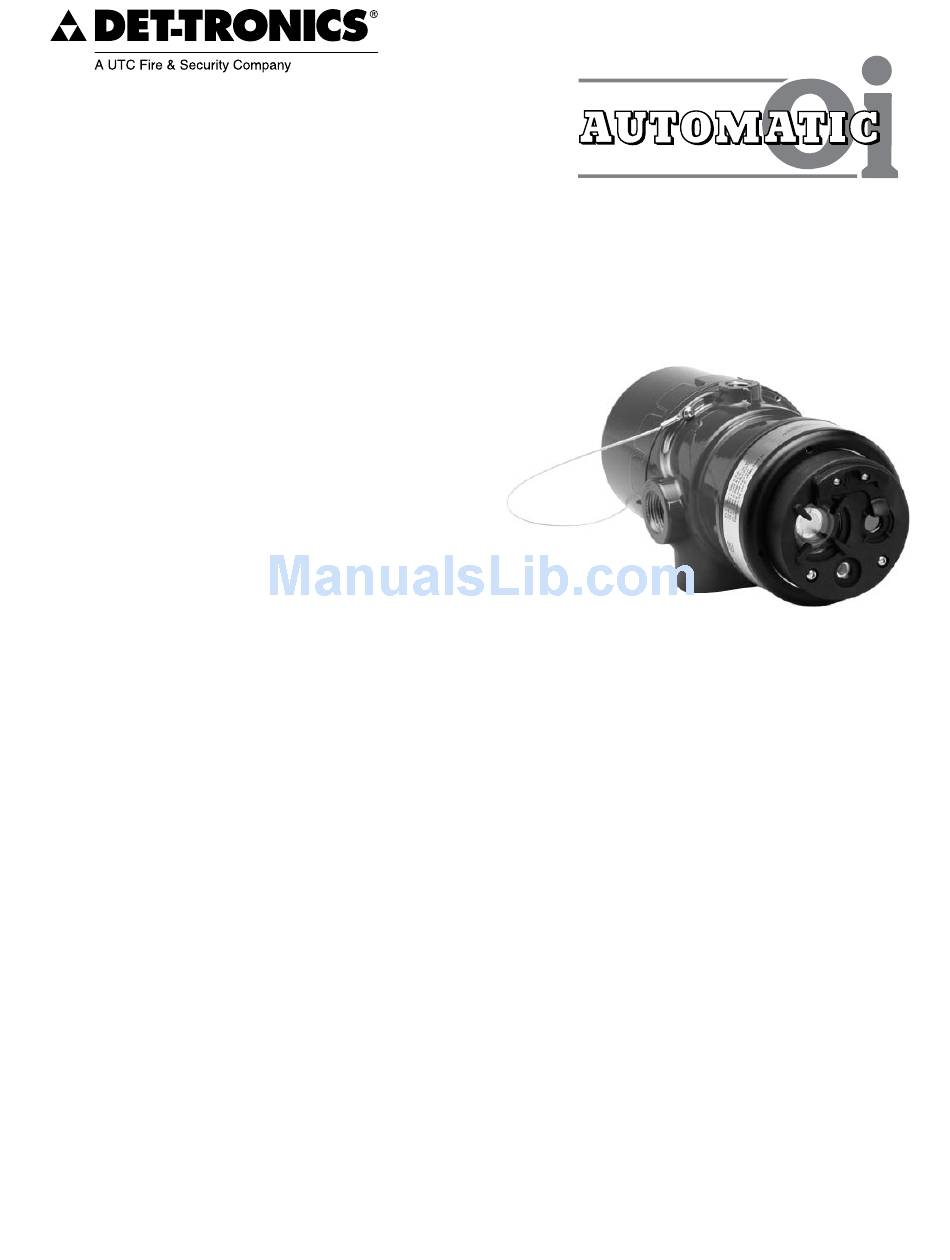

The evolution continues with the new X5200 UVIR
Flame Detector. The X5200 meets the most stringent
requirements worldwide with advanced detection
capabilities and immunity to extraneous sources,
combined with a superior mechanical design.
mounting arrangement allows the UV and IR sensors to
monitor the same hazardous location with a 90 degree
cone of vision. When both sensors simultaneously detect
the presence of a flame, an alarm signal is generated.
The detector has Division and Zone explosion-proof
ratings and is suitable for use in indoor and outdoor
applications.
The standard output configuration includes fire, fault and
auxiliary relays. Output options include:
– 0 to 20 mA output (in addition to the three relays)
– Pulse output for compatibility with existing controller
based systems (with fire and fault relays)
– Eagle Quantum Premier (EQP) compatible model
(no analog or relay outputs)
– HART Communication
©
8.2 Detector Electronics Corporation 2010
A multi-color LED on the detector faceplate indicates
detector status condition.
Microprocessor controlled heated optics increase
The
resistance to moisture and ice.
The X5200 housing is available in copper-free aluminum
or stainless steel, both with NEMA 4X and IP66 rating.

Outputs

Relays
The standard detector is furnished with fire, fault and
auxiliary relays. All three relays are rated 5 amperes at
30 Vdc.
The Fire Alarm relay has redundant terminals and
normally open / normally closed contacts, normally
de-energized operation, and latching or non-latching
operation.
The Fault relay has redundant terminals and normally
open contacts, normally energized operation, and
latching or non-latching operation.
INstRuCtIONs
UVIR Flame Detector
Rev: 6/10
X5200
95-8546
