IMPORTANT
Be sure to read and understand the entire
instruction manual before installing or operating
the flame detection system. Any deviation from
the recommendations in this manual may impair
system performance and compromise safety.
ATTENTION
The X5200 includes the Automatic o i ® (Optical
Integrity) feature — a calibrated performance test
that is automatically performed once per minute
to verify complete detector operation capabilities.
Testing with an external test lamp is not
approved or required.

DESCRIPTION

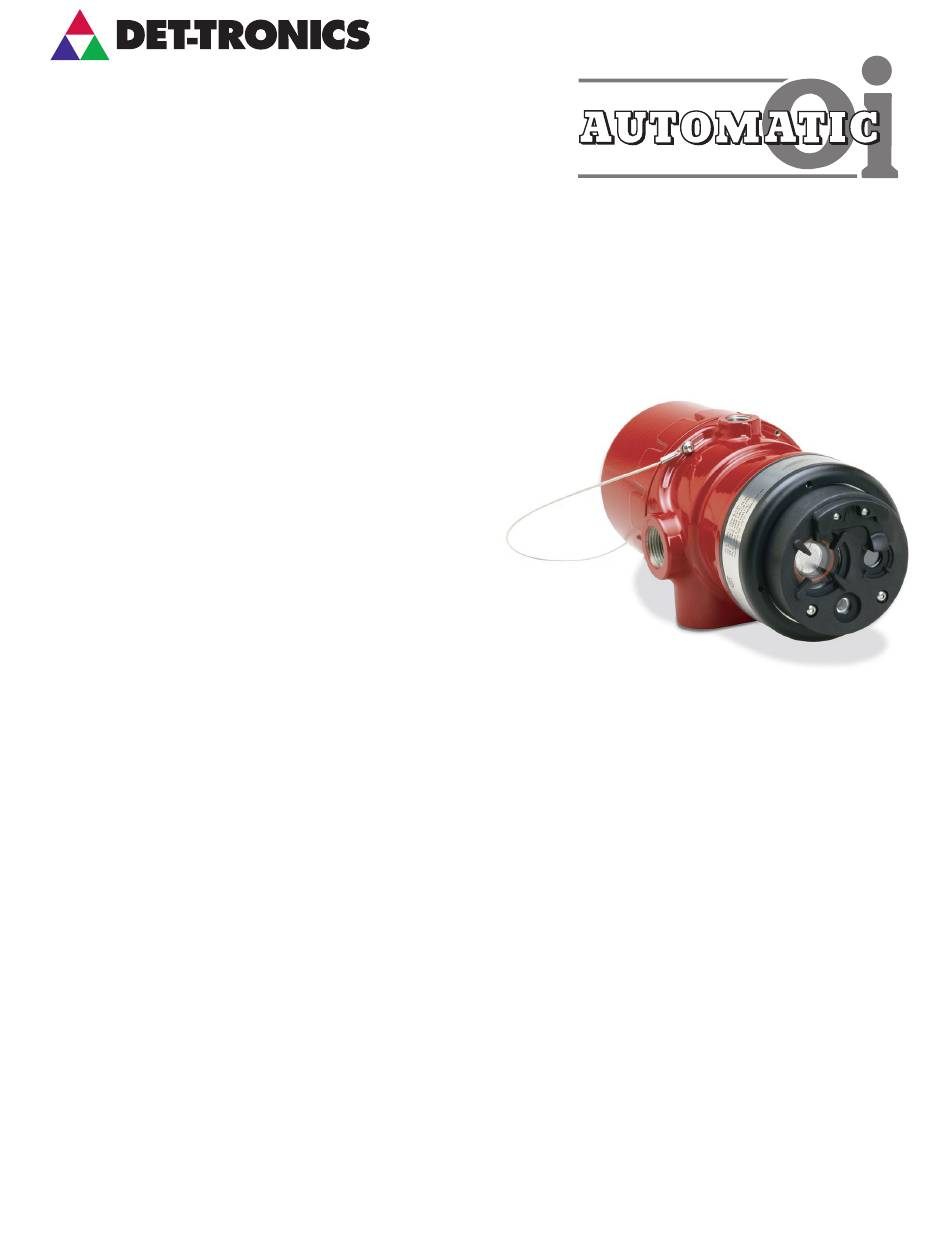

The X5200, X5200G, X5200M meet the most stringent
requirements worldwide with advanced detection
capabilities and immunity to extraneous sources,
combined with a superior mechanical design. The
mounting arrangement allows the UV and IR sensors to
monitor the same hazardous location with a 90 degree
cone of vision. When both sensors simultaneously detect
the presence of a flame, an alarm signal is generated.
The X5200 with pulse/relay output is designed for use
in controller based systems. In addition to use in new
systems, it can serve as a direct field replacement
for Detector Electronics Corporation's (Det-Tronics)
controller based flame detectors that generate a pulse
output (not compatible with R7484 and R7409B/C).
©
9.2
Detector Electronics Corporation 2016
UVIR Flame Detector
X5200, X5200G, X5200M
When used as a field replacement, all operating features
of the current controller are retained in addition to gaining
the advanced features of the X5200 Flame Detector. In
typical applications, the four wire X5200 can use all
existing system wiring.
The detector has Division and Zone explosion-proof
ratings and is suitable for use in indoor and outdoor
applications. The X5200 housing is available in copper-
free aluminum or stainless steel, with NEMA/Type 4X and
IP66/IP67 rating.
A tri-color LED on the detector faceplate indicates
normal condition and notifies personnel of fire alarm or
fault conditions.
Microprocessor controlled heated optics increase
resistance to moisture and ice.
1
INSTRUCTIONS
with Pulse Output
Rev: 11/15
95-8547
