Det-Tronics X3300 Instructions Manual

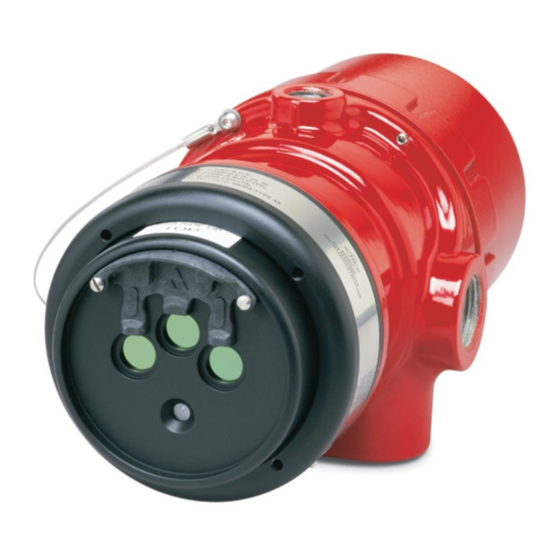

Protect-ir multispectrum ir flame detector with pulse output
Hide thumbs Also See for X3300:
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions
95-8517
Protect•ir Multispectrum IR Flame Detector
with Pulse Output
X3300
Detector Electronics Corporation
6901 West 110th Street • Minneapolis, Minnesota 55438 USA
12/00
95-8517
Tel: 952.941.5665 or 800.765.3473 • Fax: 952.829.8750

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X3300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Det-Tronics X3300

Summary of Contents for Det-Tronics X3300

  • Page 1 Instructions 95-8517 Protect•ir Multispectrum IR Flame Detector with Pulse Output X3300 Detector Electronics Corporation 6901 West 110th Street • Minneapolis, Minnesota 55438 USA 12/00 95-8517 Tel: 952.941.5665 or 800.765.3473 • Fax: 952.829.8750...

  • Page 2: Table Of Contents

    A Typical System, X3300 Detectors Wired MOUNTING AND WIRING PROCEDURE......4 to R7405 Controller ........11 o i Plate Orientation ..........4 Figure 11A Dimensions of Standard X3300 in Inches Installation Procedure..........4 (mm)............14 OPTICAL INTEGRITY (o i ) ..........12 Figure 11B Dimensions of X3300 with Integral Junction STARTUP PROCEDURE..........12...

  • Page 3: Description

    X3300 detector. In typical applications, the four wire X3300 can utilize all ATTENTION existing system wiring. Observe precautions for handling electrostatic sensitive devices.

  • Page 4: General Application Information

    (no fault or fire alarm) during the welding operation and are detectable by the X3300. Welding rods with clay binders do not burn and Fault Yellow will not be detected by the X3300. However, system...

  • Page 5: Wiring Requirements

    • Dense fog, rain or ice can absorb IR radiation and of the system. The wiring pigtail for the X3300 is factory reduce the sensitivity of the detector. sealed for easy installation onto a junction box where electrical connections are made.

  • Page 6: Mounting And Wiring Procedure

    M25 threads must use an IP66 washer. Refer to Figure 2 and insure that the o i plate will be oriented as shown when the X3300 is mounted and MOUNTING AND WIRING PROCEDURE sighted. This will ensure proper operation of the o i...

  • Page 7: Figure 3A X3300 With Q9001L Swivel Mount

    Figure 4A—Q9001L Swivel Mount Dimensions in Inches (mm) Figure 3B—X3300 with Q9033 Mounting Bracket (EExe Installation Only) 3.9 (9.9) 10.7 (27.2) 3.0 (7.6) 3.9 (9.9) 0.4 (1.0) DIA. 3.0 (7.6) 7.8 (19.8) A1981 Figure 4B—Dimensions of X3300 with Q9033 Mounting Bracket in Inches (cm) 95-8517...

  • Page 8: Figure 5A Wiring Identification For X3300 With Pigtails

    Oi ("D" LEAD) A2010 Oi ("D" LEAD) A2023 Figure 5A—Wiring Identification for X3300 with Pigtails Figure 5B—Terminal Identification for X3300 with Integral Junction Box 3. Make the field wiring connections following local 4. Check all field wiring to be sure that the proper ordinances and the guidelines in this manual.

  • Page 9: Figure 6 A Typical System, X3300 Detectors Wired To R7404 Controller

    NOTE: DO NOT CONNECT THE X3300 "A" LEAD (RED) TO TERMINAL J1-3 (290 VDC). R7404 CONTROLLER ZONE OUTPUT 1 10 TO 38 VDC BLACK – BLACK – ZONE OUTPUT 2 X3300 WHITE WHITE GREEN (A) +290 VDC ZONE OUTPUT 3...

  • Page 10: Figure 7 A Typical System, X3300 Detectors Wired To R7404 Star Logic Controller

    TERMINAL NO. FUNCTION NOTE: 2.5 AMPERES @ 24 VDC REQUIRED PER EIGHT DETECTORS. DC+ ("A" LEAD) SIGNAL ("B" LEAD) DC– ("C" LEAD) Oi ("D" LEAD) GROUND FAULT PROTECTED SYSTEMS Figure 7—A Typical System, X3300 Detectors Wired to R7404 Star Logic Controller...

  • Page 11: Figure 8 A Typical System, X3300 Detectors Wired To R7494 Controller

    TERMINAL NO. FUNCTION NOTE: 2.5 AMPERES @ 24 VDC REQUIRED PER EIGHT DETECTORS. DC+ ("A" LEAD) SIGNAL ("B" LEAD) DC– ("C" LEAD) Oi ("D" LEAD) GROUND FAULT PROTECTED SYSTEMS Figure 8—A Typical System, X3300 Detectors Wired to R7494 Controller 95-8517...

  • Page 12: Figure 9 A Typical System, X3300 Detectors Wired To R7495 Controller

    TERMINAL NO. FUNCTION NON-POLARIZED NOTE: 2.5 AMPERES @ 24 VDC REQUIRED PER EIGHT DETECTORS. DC+ ("A" LEAD) SIGNAL ("B" LEAD) DC– ("C" LEAD) Oi ("D" LEAD) GROUND FAULT PROTECTED SYSTEMS Figure 9—A Typical System, X3300 Detectors Wired to R7495 Controller...

  • Page 13: Figure 10 A Typical System, X3300 Detectors Wired To R7405 Controller

    NOTE: DO NOT CONNECT THE X3300 "A" LEAD (RED) TO TERMINAL J2-34 (290 VDC). R7405 CONTROLLER +24 VDC BLACK BLACK GROUND – X3300 WHITE WHITE GREEN GREEN DETECTOR 1 BLACK BLACK X3300 WHITE WHITE J2-44 GREEN GREEN J2-36 DETECTOR 2...

  • Page 14: Optical Integrity (O I )

    OPTICAL INTEGRITY (o i ) COUNT TEST MODE The X3300 includes the Automatic Optical Integrity (o i ) The detector can be tested using the Count Test mode. feature — a calibrated performance test that is When in the Count Test mode, the frequency of the...

  • Page 15: Periodic Checkout Procedure

    1. Disable any extinguishing equipment that is To maintain maximum sensitivity, the viewing windows connected to the unit. of the X3300 must be kept relatively clean. Refer to the procedure below for instructions. 2. Inspect the viewing windows for contamination and clean as necessary.

  • Page 16: Features

    - Explosion-proof/flame-proof detector housing. 0.76 (19.3) CSA, FM and CENELEC Certified. A1941 - Models available with CENELEC Certified EEx d e. Figure 11A—Dimensions of Standard X3300 in Inches (mm) • Class A wiring per NFPA-72. • 5 year warranty. 3.23 (82.04) SPECIFICATIONS 4.08 (103.6)

  • Page 17: Integral Junction Box

    The detector has a 90° cone of vision (horizontal) with Aluminum (red-painted) or 316 stainless steel. the highest sensitivity lying along the central axis. Unlike conventional detectors, the X3300 provides full THREAD SIZE— coverage at a minimum of 70% of the maximum Cable gland entries: M25.

  • Page 18: For Methanol At Very High Sensitivity

    0° 0° 15° 15° 15° 15° 150 ft 150 ft 30° 30° 30° 30° 135 ft 135 ft 120 ft 120 ft 45° 45° 45° 45° 105 ft 105 ft 90 ft 90 ft 75 ft 75 ft 60 ft 60 ft 45 ft 45 ft...

  • Page 19: Device Repair And Return

    CERTIFICATION— DEVICE REPAIR AND RETURN Reference Appendix A. The detector is not designed to be repaired in the field. CSA: Class I, Div. 1, Groups B, C and D; If a problem should develop, refer to the Class II, Div. 1, Groups E, F and G (T4A); Troubleshooting section.

  • Page 20: Ordering Information

    ORDERING INFORMATION REPLACEMENT PARTS When ordering, specify detector sensitivity. Refer to Part Number Description Appendix A for details. 001680-001 Window cleaner squeeze bottle (package of six bottles) o i plate kit 006967-001 005003-001 Silicone-free grease ACCESSORIES Q9001L Mounting Bracket is recommended for For assistance in ordering a system to fit your mounting the detector when using flexible conduit.
  • Page 21 APPENDIX A [Factory Mutual Research (FMR) Approval Description] THE FOLLOWING ITEMS, FUNCTIONS AND OPTIONS DESCRIBE THE FMR APPROVAL: • Explosion-proof for Class I, Div. 1, Groups B, C and D (T4A) Hazardous (Classified) Locations per FM 3615. • Dust-ignition proof for Class II/III, Div. 1, Groups E, F and G (T4A) Hazardous (Classified) Locations per FM 3615. •...
  • Page 22 X3300 Pulse Output Response Characteristics Medium Sensitivity Ave. Response Time, Sec. Connection to Connection to Fuel Size Distance R7404 Controller R7494 Controller Ft. (M) On Axis (0°) Off Axis (45°) On Axis (0°) Off Axis (45°) Heptane 36 Sq. In.
  • Page 23 RESPONSE CHARACTERISTICS IN THE PRESENCE OF FALSE ALARM SOURCES: Very High Sensitivity False Alarm Source Distance Fire Source Distance Average Response Time (feet) (feet) (seconds) Sunlight, direct, modulated, reflected — 6-inch propane < 4 Vibration 6-inch propane < 10 Radio frequency interference 6-inch propane <...
  • Page 24 FALSE ALARM IMMUNITY: Very High Sensitivity False Alarm Source Distance Modulated Response Unmodulated Response (feet) Sunlight, direct, reflected — No alarm No alarm Vibration No alarm Radio frequency interference No alarm (keyed) No alarm (steady) Arc welding No alarm No alarm 6 kw heater No alarm No alarm...
  • Page 25 FIELD OF VIEW: Very High Sensitivity Fuel Size Distance Horizontal Avg. Horiz. Response Time Vertical Avg. Vert. Response Time (feet) (degrees) (seconds) (degrees) (seconds) Gasoline 1 x 1 foot 11.9 –45 –30 Gasoline 1 x 1 foot –45 –30 Diesel** 1 x 1 foot –45 –30...
  • Page 26 HIGH RESOLUTION FIELD OF VIEW (Factory Mutual Research Verified) 0° 10° 10° 0° 10° 20° 10° 20° 20° 20° 30° 30° 30° 30° 40° 40° 40° 40° 45° 45° 45° 45° Figure A1—Horizontal Field of View at Indicated Distance in Feet Figure A2—Horizontal Field of View at Indicated Distance in Feet for Methane at Very High Sensitivity for Methane at Medium Sensitivity...
  • Page 27 Printed in USA Detector Electronics Corporation 6901 West 110th Street • Minneapolis, Minnesota 55438 USA Tel: 952.941.5665 or 800.765.3473 • Fax: 952.829.8750...
