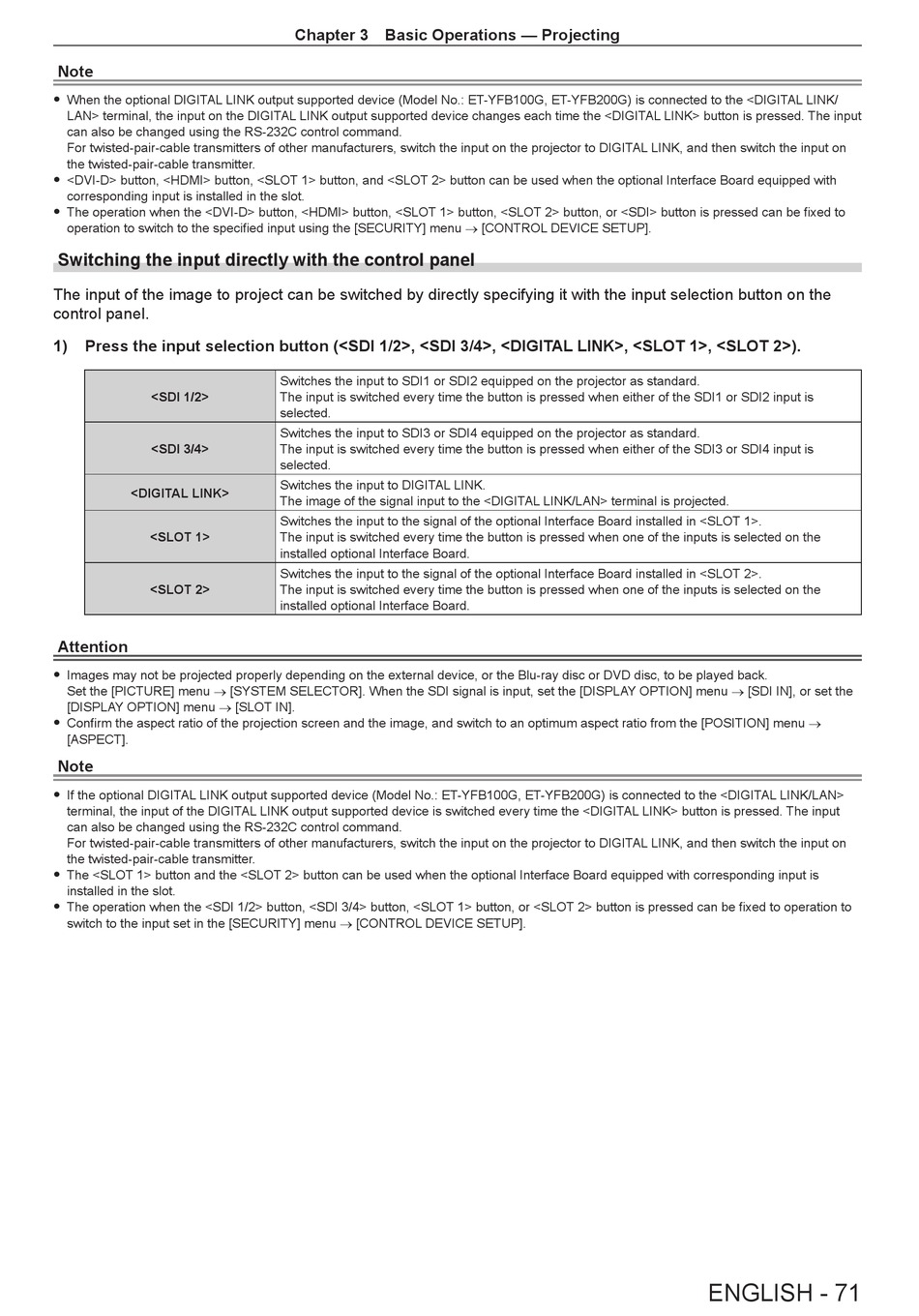

Panasonic PT-RQ32K Operating Instructions Manual page 71

Note
f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/
LAN> terminal, the input on the DIGITAL LINK output supported device changes each time the <DIGITAL LINK> button is pressed. The input
can also be changed using the RS-232C control command.
For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGITAL LINK, and then switch the input on
the twisted-pair-cable transmitter.
f <DVI-D> button, <HDMI> button, <SLOT 1> button, and <SLOT 2> button can be used when the optional Interface Board equipped with
corresponding input is installed in the slot.
f The operation when the <DVI-D> button, <HDMI> button, <SLOT 1> button, <SLOT 2> button, or <SDI> button is pressed can be fixed to
operation to switch to the specified input using the [SECURITY] menu → [CONTROL DEVICE SETUP].
Switching the input directly with the control panel
The input of the image to project can be switched by directly specifying it with the input selection button on the
control panel.
1) Press the input selection button (<SDI 1/2>, <SDI 3/4>, <DIGITAL LINK>, <SLOT 1>, <SLOT 2>).
<SDI 1/2>
<SDI 3/4>
<DIGITAL LINK>
<SLOT 1>
<SLOT 2>
Attention
f Images may not be projected properly depending on the external device, or the Blu-ray disc or DVD disc, to be played back.
Set the [PICTURE] menu → [SYSTEM SELECTOR]. When the SDI signal is input, set the [DISPLAY OPTION] menu → [SDI IN], or set the
[DISPLAY OPTION] menu → [SLOT IN].
f Confirm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu →
[ASPECT].
Note
f If the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/LAN>
terminal, the input of the DIGITAL LINK output supported device is switched every time the <DIGITAL LINK> button is pressed. The input
can also be changed using the RS-232C control command.
For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGITAL LINK, and then switch the input on
the twisted-pair-cable transmitter.
f The <SLOT 1> button and the <SLOT 2> button can be used when the optional Interface Board equipped with corresponding input is
installed in the slot.
f The operation when the <SDI 1/2> button, <SDI 3/4> button, <SLOT 1> button, or <SLOT 2> button is pressed can be fixed to operation to
switch to the input set in the [SECURITY] menu → [CONTROL DEVICE SETUP].
Chapter 3 Basic Operations — Projecting
Switches the input to SDI1 or SDI2 equipped on the projector as standard.
The input is switched every time the button is pressed when either of the SDI1 or SDI2 input is
selected.
Switches the input to SDI3 or SDI4 equipped on the projector as standard.
The input is switched every time the button is pressed when either of the SDI3 or SDI4 input is
selected.
Switches the input to DIGITAL LINK.
The image of the signal input to the <DIGITAL LINK/LAN> terminal is projected.
Switches the input to the signal of the optional Interface Board installed in <SLOT 1>.
The input is switched every time the button is pressed when one of the inputs is selected on the
installed optional Interface Board.
Switches the input to the signal of the optional Interface Board installed in <SLOT 2>.
The input is switched every time the button is pressed when one of the inputs is selected on the
installed optional Interface Board.
ENGLISH - 71
