MoRoS ADSL 2.1 PRO

13.3

VPN

13.3.1

A VPN (virtual private network) is used to connect IP end devices or entire

networks with each other, in a safe way. The data is transmitted tamper-proof to a

destination and can not be read by third parties.

You can configure the MoRoS ADSL 2.1 PRO for an OpenVPN, PPTP or IPsec

connection.

The exact proceeding for creating a certificate structure and configuring a VPN

participant is described in a series of configuration guides. These are available from

our website (http://www.insys-icom.com/cg/) or our support team (support@insys-

icom.de).

13.3.2

You can use the MoRoS ADSL 2.1 PRO as OpenVPN server or OpenVPN client.

Figure 7 shows a sample configuration for an OpenVPN connection. One MoRoS

ADSL 2.1 PRO is configured as OpenVPN server and a second as OpenVPN client

here. Both, client as well as server can be replaced by any OpenVPN-capable

devices. In the example, a PPP connection between the two devices exists. Via this

PPP connection, an OpenVPN connection is established.

As soon as a WAN connection has been established, IP connections between both

networks can be established. OpenVPN uses an existing WAN connection to

establish a VPN tunnel. A tunnel consists of an IP connection, which transports all

packets to be tunnelled in its payload. OpenVPN will make a virtual network card

available for sending data traffic.

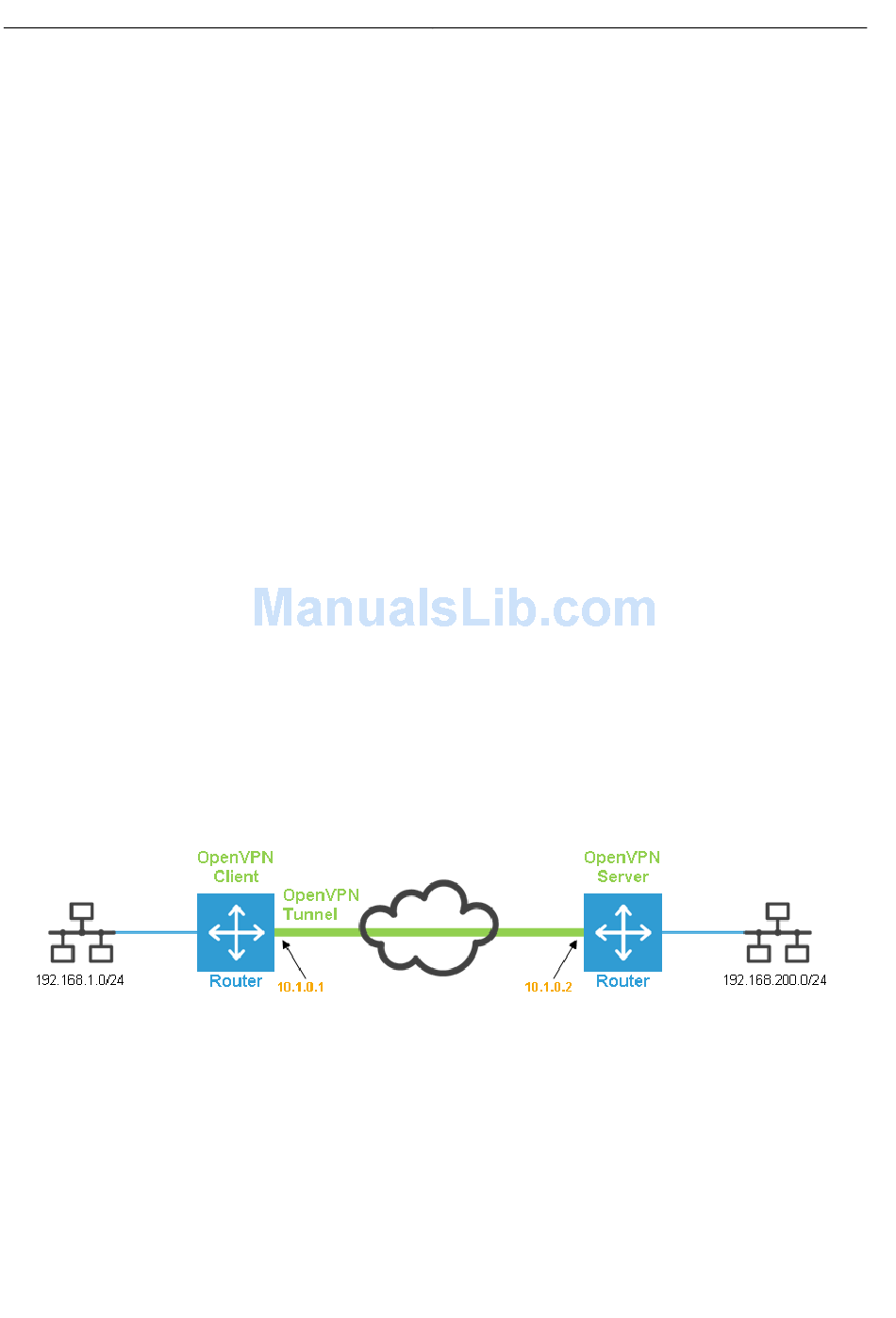

Figure 7: OpenVPN connection and IP addresses in the sample configuration
