MoRoS ADSL 2.1 PRO
8.4

Pin Assignment of the Serial Interface

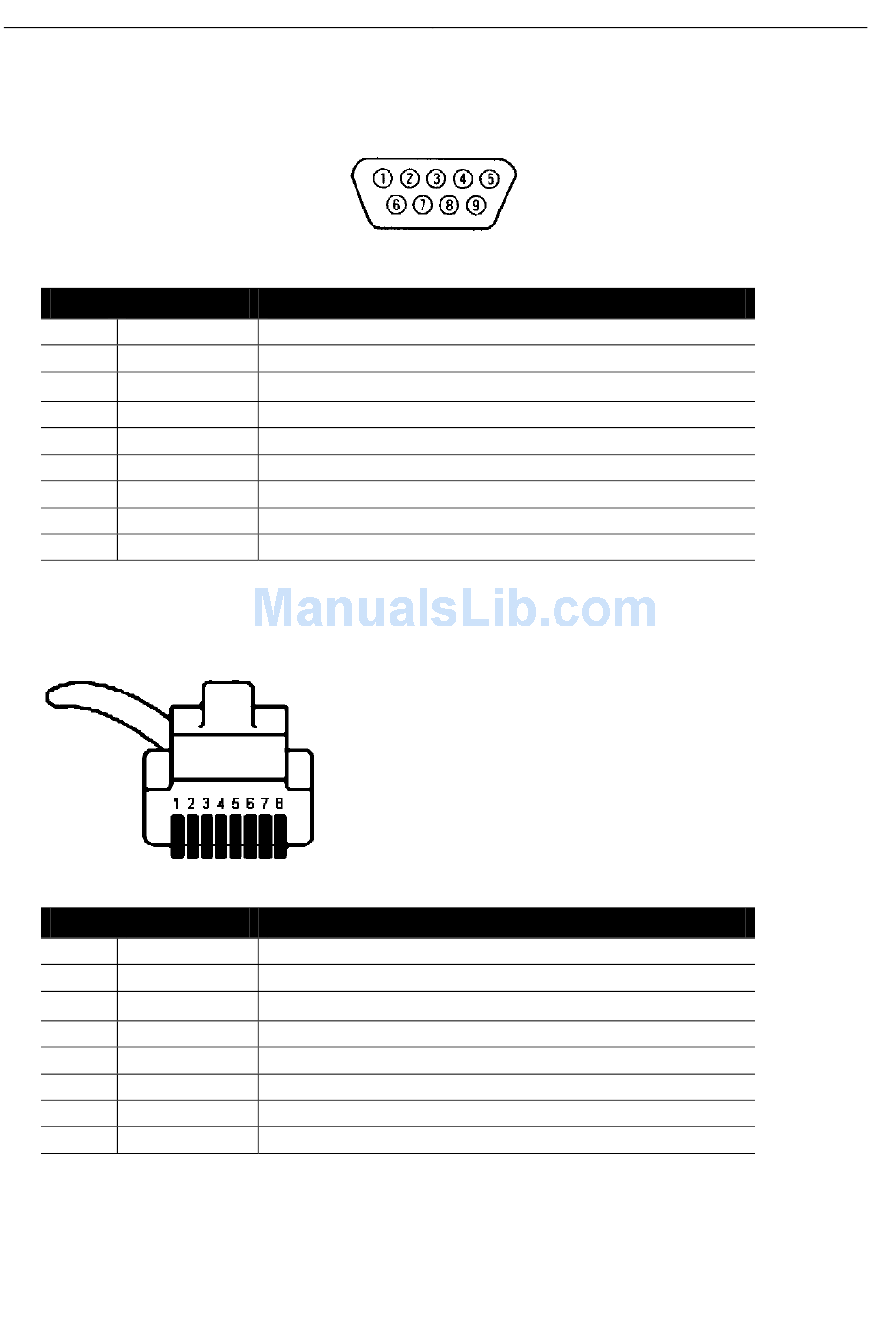

Figure 5: 9-pin D-Sub socket at the device
Pin Signal
1 DCD
2 RXD
3
TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Table 9: Description of the pin allocation of the D-Sub socket
8.5 LAN Connection
Table 10: RJ45 connector Ethernet cable
Pin Signal
1 RX+
2 RX-
3 TX+
4 n/a
5 n/a
6 TX-
7 n/a
8 n/a
Table 11: Description of the pin allocation of the RJ45 connector
Description
Data Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indication
Description
Receive positive
Receive negative
Transmit positive
Not connected
Not connected
Transmit negative
Not connected
Not connected
Connections
27
