Operating Principle

12

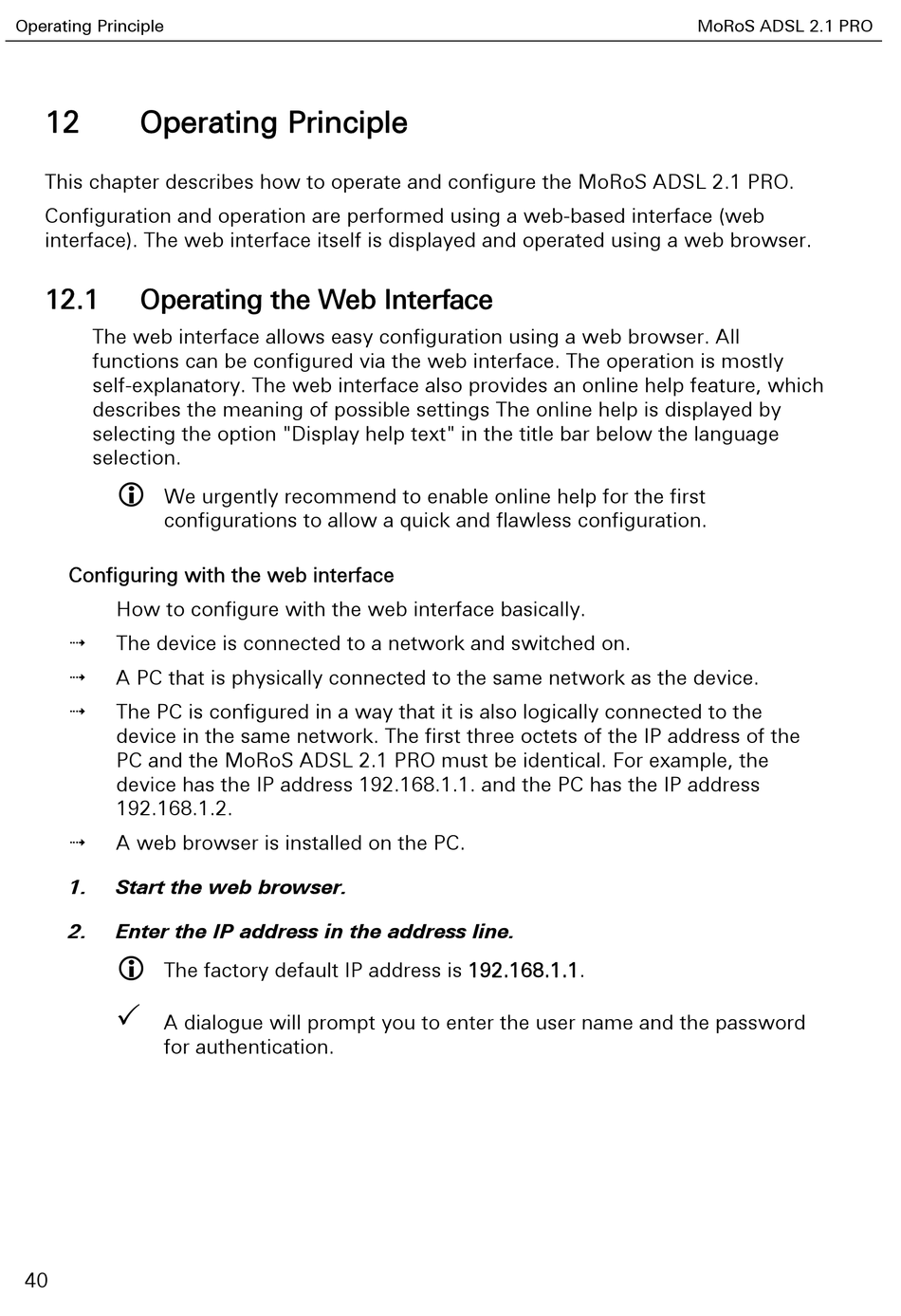

Operating Principle
This chapter describes how to operate and configure the MoRoS ADSL 2.1 PRO.
Configuration and operation are performed using a web-based interface (web
interface). The web interface itself is displayed and operated using a web browser.
12.1

Operating the Web Interface

The web interface allows easy configuration using a web browser. All
functions can be configured via the web interface. The operation is mostly
self-explanatory. The web interface also provides an online help feature, which
describes the meaning of possible settings The online help is displayed by
selecting the option "Display help text" in the title bar below the language
selection.
We urgently recommend to enable online help for the first
configurations to allow a quick and flawless configuration.
Configuring with the web interface
How to configure with the web interface basically.
The device is connected to a network and switched on.
A PC that is physically connected to the same network as the device.
The PC is configured in a way that it is also logically connected to the
device in the same network. The first three octets of the IP address of the
PC and the MoRoS ADSL 2.1 PRO must be identical. For example, the
device has the IP address 192.168.1.1. and the PC has the IP address
192.168.1.2.
A web browser is installed on the PC.
1.
Start the web browser.
2.
Enter the IP address in the address line.
The factory default IP address is 192.168.1.1.
A dialogue will prompt you to enter the user name and the password
for authentication.
40
MoRoS ADSL 2.1 PRO
