MoRoS / MLR
Reference Manual ASCII Configuration File
Nov-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MoRoS and is the answer not in the manual?

Questions and answers

Related Manuals for INSYS MoRoS

Summary of Contents for INSYS MoRoS

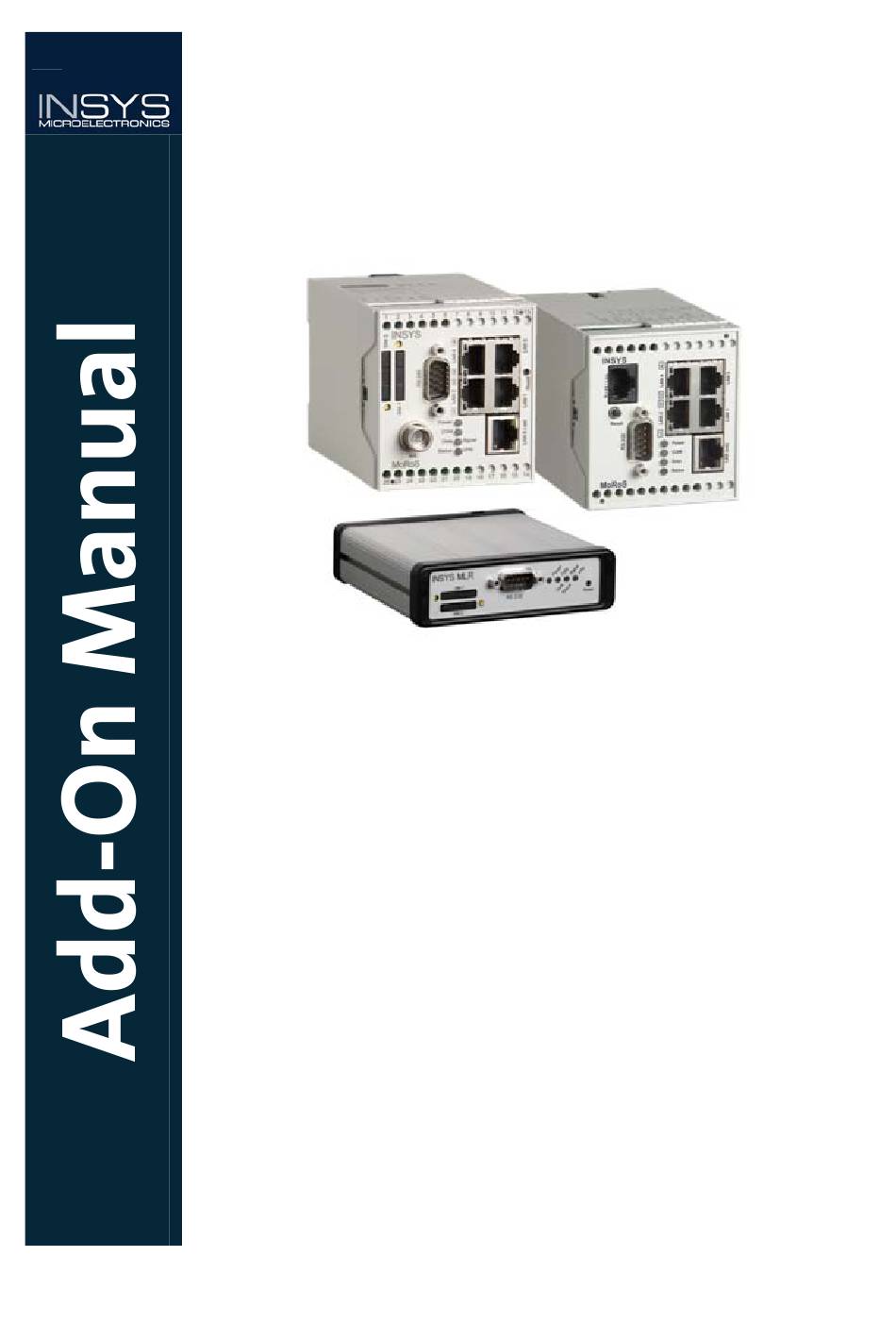

  • Page 1 MoRoS / MLR Reference Manual ASCII Configuration File Nov-10...
  • Page 3 MNP is a registered trademark of Microcom Inc. IBM PC, AT, XT are registered trademarks of International Business Machine Corporation. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation. Linux is a registered trademark of Linus Torvalds.

  • Page 4: Table Of Contents

    Contents General Information ................... 5 Version History....................6 ASCII Configuration File ..................7 Set-Up of the Configuration File ..................7 3.1.1 Comments..........................7 3.1.2 Formatting ...........................8 3.1.3 Strings ...........................8 3.1.4 Endless Lists .........................8 3.1.5 Missing or Double Sections / Objects ................9 3.1.6 Mutually Exclusive Settings ....................9 3.1.7 Restart at the End of the Configuration..............

  • Page 5: General Information

    Safety instructions, technical data, and functional descriptions must be taken from the operator manual. This add-on manual is valid for all routers of the models MoRoS and MLR of INSYS MI- CROELECTRONICS GmbH with a firmware version of 2.4.x or higher.

  • Page 6: Version History

    Version History MoRoS / MLR Version History Version Description Release Update for FW 2.5.x...

  • Page 7: Ascii Configuration File

    MoRoS / MLR ASCII Configuration File ASCII Configuration File The router allows to export the configuration as ASCII text file. This text file can be modi- fied accordingly and uploaded again to the router to configure it in a convenient way.

  • Page 8: Formatting

    ASCII Configuration File MoRoS / MLR 3.1.2 Formatting Blank lines can be inserted between any lines. Blanks and tabs can be inserted  at the beginning of a line  at the end of a line  between square brackets and section names ...

  • Page 9: Missing Or Double Sections / Objects

    MoRoS / MLR ASCII Configuration File 3.1.5 Missing or Double Sections / Objects If sections or objects are missing in an ASCII configuration file, the missing sections or objects will not be uploaded to the router, i.e. the configuration of these objects remains untouched.

  • Page 10: Restart At The End Of The Configuration

    ASCII Configuration File MoRoS / MLR 3.1.7 Restart at the End of the Configuration The section " " of the ASCII configuration file contains the object " " to textconfig reboot define whether a restart of the router is to be made following the configuration (0 = no restart;...

  • Page 11: Including Files

    [ email ] start_email = 1 list = d new_entry = recipient = support@insys-tec.de ; cause = 0001 ; attach = 0001 ; status = 1 ; text = -----BEGIN MESSAGE----- E-Mail-Text will be sent on system start-----END MESSAGE----- new_entry = recipient = support@insys-tec.de ;...

  • Page 12: Log File

    A log file is written during the configuration file is processed. Besides start and end of the configuration, the following faults are recorded in the log file.  Unknown section  Section not available on this router (e.g. [ dialout ] on MoRoS LAN)  Missing value of an object  Unknown object The log file can be displayed on the web interface of the router in the "System"...

  • Page 13: Configuration Using Ascii Configuration File

    MoRoS / MLR Configuration Using ASCII Configuration File Configuration Using ASCII Configuration File This section describes how to download an ASCII configuration file from the router, edit it accordingly, and loading it up to the router again. Your router must be in operation and you must have access to the web interface to per- form the following steps.

  • Page 14: Reference For The Ascii Configuration File

    0 = No reload of the old configuration after abort (default) 1 = Reload of the old configuration after abort [ webinterface ] username User name for web interface access (default: insys) The object value must be passed in single quotes! password Password for web interface access (default: moros)
  • Page 15 MoRoS / MLR Reference for the ASCII Configuration File [ com1 ] for UMTS routers PIN of SIM card 1 pin2 PIN of SIM card 2 provider_mode auto = Automatic log-in to standard provider of SIM card 1 preferred = Log-in to preferred provider for SIM card 1, oth-...
  • Page 16 Reference for the ASCII Configuration File MoRoS / MLR [ com2 ] for redundant UMTS communication device PIN of the SIM card of the redundant communication device provider_mode auto = Automatic log-in to standard provider of SIM card 1 preferred = Log-in to preferred provider for SIM card 1, oth-...
  • Page 17 MoRoS / MLR Reference for the ASCII Configuration File [ dialin ] start_dialin 0 = Dial-in disabled (default) 1 = Dial-in using internal communication device 2 = Dial-in using redundant communication device 3 = Dial-in using internal or redundant communication device...
  • Page 18 Reference for the ASCII Configuration File MoRoS / MLR [ routing dialin ] default_route 0 = Set no default route 1 = Set default route (default) nat_incoming 0 = NAT for incoming packets disabled 1 = NAT for incoming packets enabled (default)
  • Page 19 MoRoS / MLR Reference for the ASCII Configuration File [ openvpn server dialin ] start_openvpn_server 0 = OpenVPN server for dial-in connections disabled (default) 1 = OpenVPN server for dial-in connections enabled lport Local port of the tunnel (default: 1194)
  • Page 20 Reference for the ASCII Configuration File MoRoS / MLR common_name "Common Name" in certificate of the client Network address of the client netmask Net mask of the client vpn_ip VPN IP address of the client dh_parameters Diffie-Hellman parameter set Certificate Revocation List...
  • Page 21 MoRoS / MLR Reference for the ASCII Configuration File username User name of the client for log-in at the OpenVPN server The object value must be passed in single quotes! password Password of the client for log-in at the OpenVPN server...
  • Page 22 Reference for the ASCII Configuration File MoRoS / MLR [ ipsec dialin ] FW 2.4.x start_ipsec 0 = IPsec for dial-in connections disabled (default) 1 = IPsec for dial-in connections enabled remote_peer IP address or domain name of remote site...
  • Page 23 MoRoS / MLR Reference for the ASCII Configuration File dpd_action clear = Closing the connection on dead peer detection hold = Holding the connection on dead peer detection restart = Restarting the connection on dead peer detection (default) key_lifetime Interval for key renegotiation (in seconds, default: 3600)
  • Page 24 Reference for the ASCII Configuration File MoRoS / MLR [ ipsec dialin ] from FW 2.5.x; <x> = 1-10 start_ipsec 0 = IPsec for dial-in connections disabled (default) 1 = IPsec for dial-in connections enabled nat_traversal on = NAT traversal is enabled (default)
  • Page 25 MoRoS / MLR Reference for the ASCII Configuration File dpd_action<x> clear = Closing the connection on dead peer detection hold = Holding the connection on dead peer detection restart = Restarting the connection on dead peer detection (default) pfs<x> 0 = Perfect forward secrecy is disabled 1 = Perfect forward secrecy is enabled (default) key_lifetime<x>...
  • Page 26 Reference for the ASCII Configuration File MoRoS / MLR [ dialout ] start_dialout 0 = Dial-out disabled (default) 1 = Dial-out using internal communication device 2 = Dial-out primarily using internal or secondarily using re- dundant communication device 3 = Dial-out primarily using redundant or secondarily using...
  • Page 27 MoRoS / MLR Reference for the ASCII Configuration File flat 0 = Leased-line operation disabled (default) 1 = Leased-line operation enabled check_interval Interval of connection check (in minutes, default: 60) check_type dns = Connection check via DNS request (default) ping = Connection check via ping...
  • Page 28 Reference for the ASCII Configuration File MoRoS / MLR [ firewall dialout ] start_firewall 0 = Firewall for dial-out connections disabled (default) 1 = Firewall for dial-out connections enabled list a = New entries are appended to existing list d = Existing list is deleted (default)
  • Page 29 MoRoS / MLR Reference for the ASCII Configuration File [ openvpn server dialout ] start_openvpn_server 0 = OpenVPN server for dial-out connections disabled (de- fault) 1 = OpenVPN server for dial-out connections enabled lport Local port of the tunnel (default: 1194)
  • Page 30 Reference for the ASCII Configuration File MoRoS / MLR sub-objects: common_name "Common Name" in certificate of the client Network address of the client netmask Net mask of the client vpn_ip VPN IP address of the client dh_parameters Diffie-Hellman parameter set...
  • Page 31 MoRoS / MLR Reference for the ASCII Configuration File icmp_ping IP address or domain name for additional ICMP ping username User name of the client for log-in at the OpenVPN server The object value must be passed in single quotes!
  • Page 32 Reference for the ASCII Configuration File MoRoS / MLR [ ipsec dialout ] FW 2.4.x start_ipsec 0 = IPsec for dial-out connections disabled (default) 1 = IPsec for dial-out connections enabled remote_peer IP address or domain name of remote site...
  • Page 33 MoRoS / MLR Reference for the ASCII Configuration File dpd_action clear = Closing the connection on dead peer detection hold = Holding the connection on dead peer detection restart = Restarting the connection on dead peer detection (default) key_lifetime Interval for key renegotiation (in seconds, default: 3600)
  • Page 34 Reference for the ASCII Configuration File MoRoS / MLR [ ipsec dialout ] from FW 2.5.x; <x> = 1-10 start_ipsec 0 = IPsec for dial-out connections disabled (default) 1 = IPsec for dial-out connections enabled nat_traversal on = NAT traversal is enabled (default)
  • Page 35 MoRoS / MLR Reference for the ASCII Configuration File dpd_action<x> clear = Closing the connection on dead peer detection hold = Holding the connection on dead peer detection restart = Restarting the connection on dead peer detection (default) pfs<x> 0 = Perfect forward secrecy is disabled 1 = Perfect forward secrecy is enabled (default) key_lifetime<x>...
  • Page 36 Reference for the ASCII Configuration File MoRoS / MLR [ dsl ] username User name for dial-in to DSL provider The object value must be passed in single quotes! password Password for dial-in to DSL provider The object value must be passed in single quotes!
  • Page 37 MoRoS / MLR Reference for the ASCII Configuration File [ dialfilters lan ] start_dialfilter 0 = Dial filter for LAN (ext) interface disabled (default) 1 = Dial filter for LAN (ext) interface enabled list a = New entries are appended to existing list...
  • Page 38 Reference for the ASCII Configuration File MoRoS / MLR [ portforward lan ] start_portforwarding 0 = Port forwarding for LAN (ext) interface disabled 1 = Port forwarding for LAN (ext) interface enabled (default) exposed_host IP address of exposed host list...
  • Page 39 MoRoS / MLR Reference for the ASCII Configuration File [ openvpn server lan ] start_openvpn_server 0 = OpenVPN server for LAN (ext) interface disabled (default) 1 = OpenVPN server for LAN (ext) interface enabled lport Local port of the tunnel (default: 1194)
  • Page 40 Reference for the ASCII Configuration File MoRoS / MLR common_name "Common Name" in certificate of the client Network address of the client netmask Net mask of the client vpn_ip VPN IP address of the client dh_parameters Diffie-Hellman parameter set Certificate Revocation List...
  • Page 41 MoRoS / MLR Reference for the ASCII Configuration File username User name of the client for log-in at the OpenVPN server The object value must be passed in single quotes! password Password of the client for log-in at the OpenVPN server...
  • Page 42 Reference for the ASCII Configuration File MoRoS / MLR [ ipsec lan ] FW 2.4.x start_ipsec 0 = IPsec for LAN (ext) interface disabled (default) 1 = IPsec for LAN (ext) interface enabled remote_peer IP address or domain name of remote site...
  • Page 43 MoRoS / MLR Reference for the ASCII Configuration File dpd_action clear = Closing the connection on dead peer detection hold = Holding the connection on dead peer detection restart = Restarting the connection on dead peer detection (default) key_lifetime Interval for key renegotiation (in seconds, default: 3600)
  • Page 44 Reference for the ASCII Configuration File MoRoS / MLR [ ipsec lan ] from FW 2.5.x; <x> = 1-10 start_ipsec 0 = IPsec for LAN (ext) interface disabled (default) 1 = IPsec for LAN (ext) interface enabled nat_traversal on =...
  • Page 45 MoRoS / MLR Reference for the ASCII Configuration File dpd_action<x> clear = Closing the connection on dead peer detection hold = Holding the connection on dead peer detection restart = Restarting the connection on dead peer detection (default) pfs<x> 0 = Perfect forward secrecy is disabled 1 = Perfect forward secrecy is enabled (default) key_lifetime<x>...
  • Page 46 Reference for the ASCII Configuration File MoRoS / MLR [ outputs ] out1_set idle = Output 1 in idle condition (default) operated = Output 1 in operated condition out2_set idle = Output 2 in idle condition (default) operated = Output 2 in operated condition...
  • Page 47 MoRoS / MLR Reference for the ASCII Configuration File [ switch port ] active1 0 = Switch port 1 disabled 1 = Switch port 1 enabled (default) active2 0 = Switch port 2 disabled 1 = Switch port 2 enabled (default)
  • Page 48 Reference for the ASCII Configuration File MoRoS / MLR [ switch led ] led_green 100 = Green LED displays speed 100 MBit/s (de- fault) link = Green LED displays link full = Green LED displays full-duplex protocol collision = Green LED displays collision...
  • Page 49 MoRoS / MLR Reference for the ASCII Configuration File [ switch vlan ] start_vlan 0 = VLAN configuration disabled (default) 1 = VLAN configuration enabled vlana_port1 0 = Port 1 does not belong to VLAN A (default) 1 = Port 1 belongs to VLAN A...
  • Page 50 Reference for the ASCII Configuration File MoRoS / MLR remove = Remove VLAN tag for port 2 (default) port3_tag insert = Insert VLAN tag for port 3 remove = Remove VLAN tag for port 3 (default) port4_tag insert = Insert VLAN tag for port 4...
  • Page 51 MoRoS / MLR Reference for the ASCII Configuration File [ serial ethernet basic ] start_serial 0 = Serial Ethernet gateway disabled (default) 1 = Serial Ethernet gateway enabled connection_mode demand = Connection enabled on request (default) flat = Leased-line mode enabled...
  • Page 52 Reference for the ASCII Configuration File MoRoS / MLR [ serial ethernet interfaces ] speed Speed of serial interface (110, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Bit/s; default: 115200) databits Data bits on serial interface (7, 8; default: 8) parity Parity of serial interface (O, E, N;...
  • Page 53 MoRoS / MLR Reference for the ASCII Configuration File [ message ] email_address E-mail address of e-mail account real_name Name of e-mail account owner The object value must be passed in single quotes! server SMTP server address port SMTP port (default: 25)
  • Page 54 Reference for the ASCII Configuration File MoRoS / MLR 17 = Message dispatch on switching the SIM cards 18 = Message dispatch on DSL connection set-up 19 = Message dispatch on receiving IP address via DCHP 20 = Message dispatch on switching to integrated communi-...
  • Page 55 MoRoS / MLR Reference for the ASCII Configuration File [ sms ] start_sms 0 = Dispatch of SMS messages disabled 1 = Dispatch of SMS messages enabled (default) list a = New entries are appended to existing list d = Existing list is deleted (default)
  • Page 56 Reference for the ASCII Configuration File MoRoS / MLR [ dyndns ] start_dyndns 0 = Dynamic DNS update disabled (default) 1 = Dynamic DNS update enabled provider dyndns = DynDNS as DynDNS provider (default) dyndns-custom = DynDNS custom as DynDNS provider...
  • Page 57 MoRoS / MLR Reference for the ASCII Configuration File [ ipt ] from FW 2.5.x start_ipt 0 = IPT slave disabled (default) 1 = IPT slave enabled master IP address or domain name of primary IPT master port Port of primary IPT master...
  • Page 58 Reference for the ASCII Configuration File MoRoS / MLR [ settime ] Set system time to day (01-31) Set system time to month (01-12) year Set system time to year (01-31) hour Set system time to hour (00-23) Set system time to minute (00-59)
  • Page 59 MoRoS / MLR Reference for the ASCII Configuration File timezone UTC = Time zone UTC GMT = Time zone GMT GMT-1 = Time zone GMT -1 GMT+1 = Time zone GMT +1 GMT-2 = Time zone GMT -2 GMT+2 =...
  • Page 60 Reference for the ASCII Configuration File MoRoS / MLR Europe/London = Time zone Europe/London Europe/Luxembourg = Time zone Europe/Luxembourg Europe/Madrid = Time zone Europe/Madrid Europe/Malta = Time zone Europe/Malta Europe/Minsk = Time zone Europe/Minsk Europe/Monaco = Time zone Europe/Monaco Europe/Moscow =...
  • Page 61 MoRoS / MLR Reference for the ASCII Configuration File [ update ] start_update 0 = Automatic daily update disabled (default) 1 = Automatic daily update enabled timing_type mac = Update time depending on MAC (default) manual = Update at user-defined time time_hour Update at (hour;...
