MoRoS ADSL 2.1 PRO

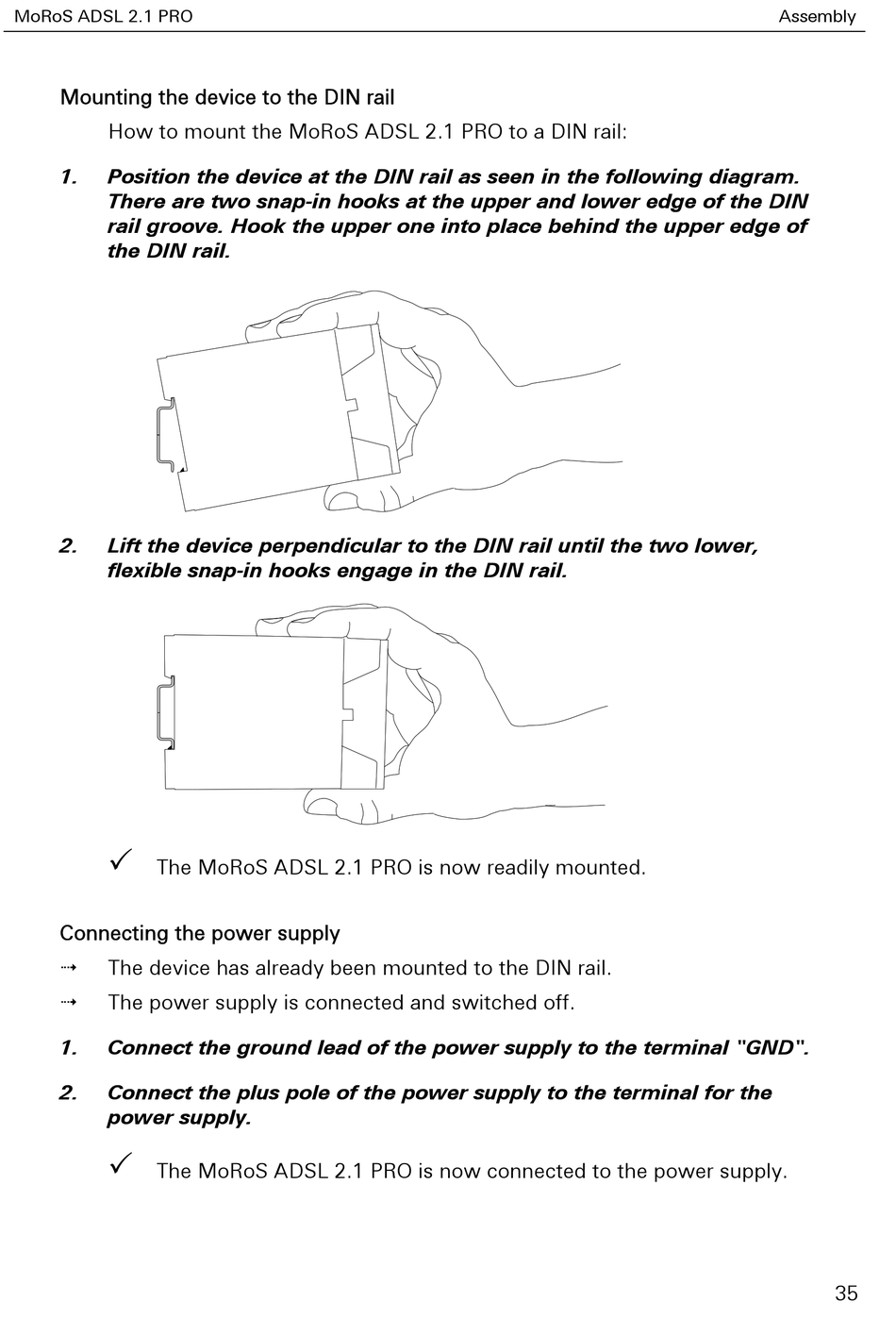

Mounting the device to the DIN rail
How to mount the MoRoS ADSL 2.1 PRO to a DIN rail:
1. Position the device at the DIN rail as seen in the following diagram.
There are two snap-in hooks at the upper and lower edge of the DIN
rail groove. Hook the upper one into place behind the upper edge of
the DIN rail.
2. Lift the device perpendicular to the DIN rail until the two lower,
flexible snap-in hooks engage in the DIN rail.

The MoRoS ADSL 2.1 PRO is now readily mounted.
Connecting the power supply

The device has already been mounted to the DIN rail.

The power supply is connected and switched off.
1. Connect the ground lead of the power supply to the terminal "GND".
2. Connect the plus pole of the power supply to the terminal for the
power supply.

The MoRoS ADSL 2.1 PRO is now connected to the power supply.
Assembly
35
