Connections
8.3

Terminal Connections on the Bottom

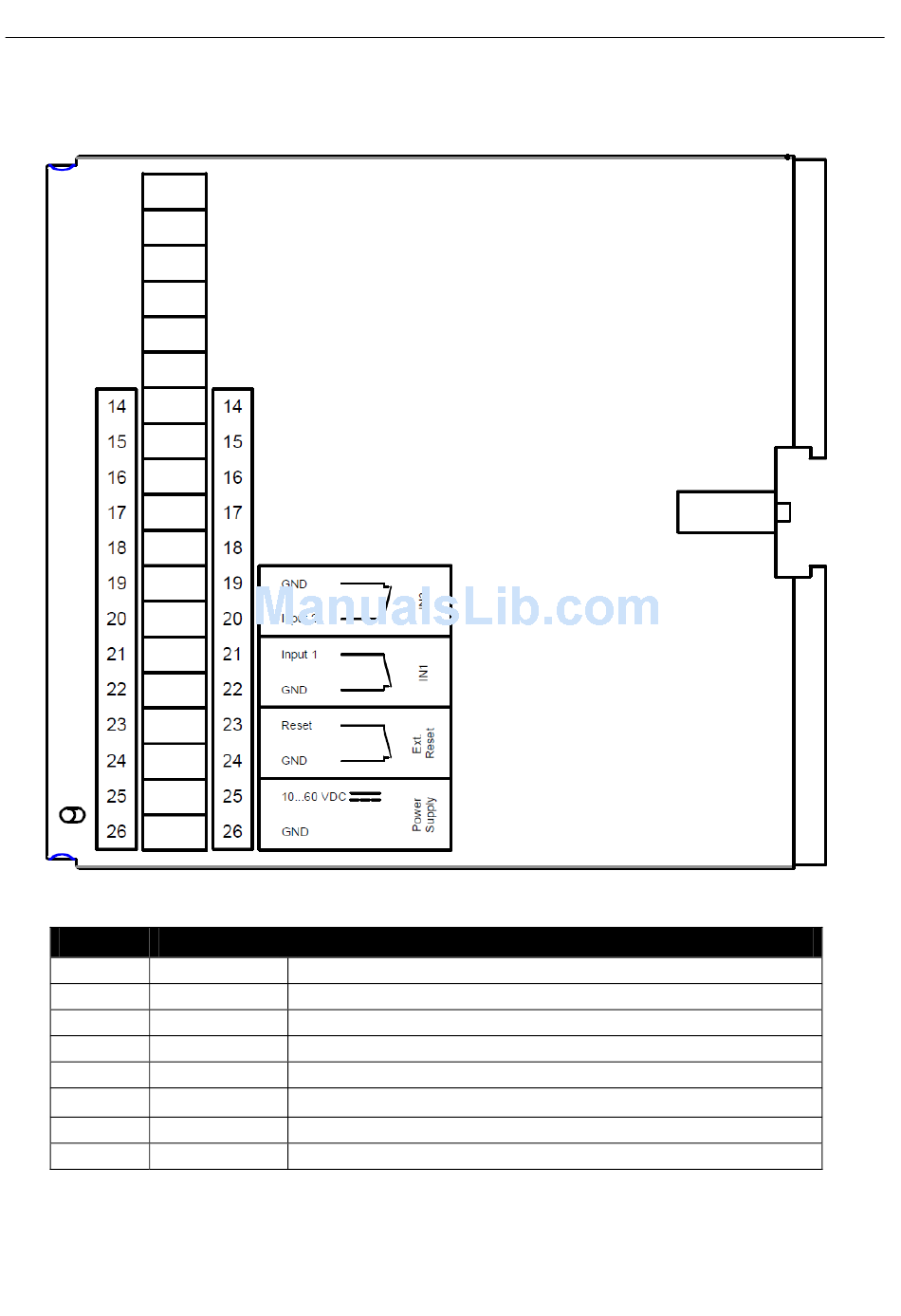

Figure 4: Connections on the bottom of the device
Terminal Description
19 GND
20 Input 2
21 Input 1
22 GND
23 Reset
24
GND
25 10 ... 60 VDC
26 GND
Table 8: Description of the connections on the bottom of the device
26
Description
Ground
Input 2
Input 1
Ground
Reset input
Ground
Power supply 10 V – 60 V DC
Ground
