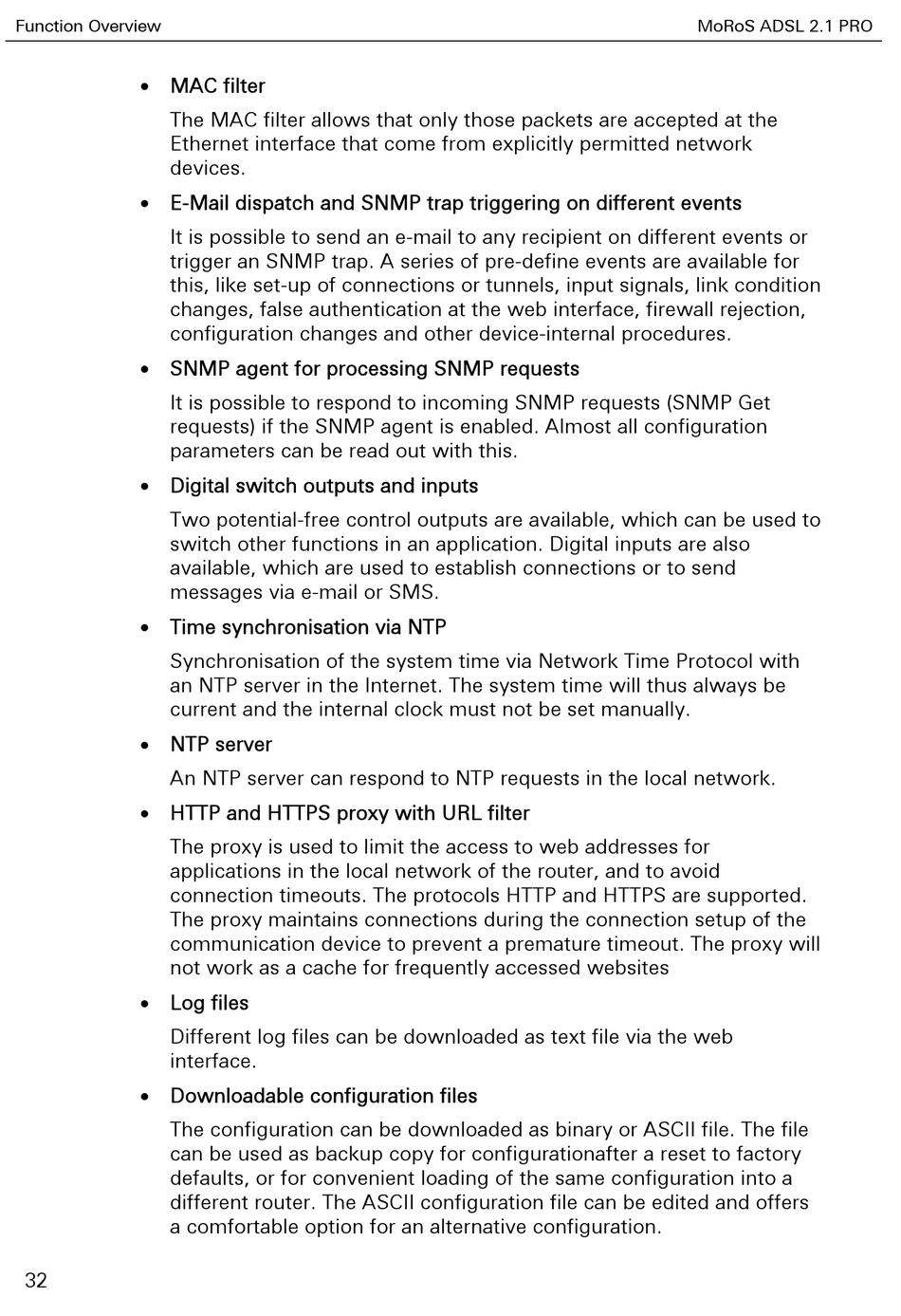

INSYS MoRoS ADSL 2.1 PRO Manual page 32

Function Overview
 MAC filter
The MAC filter allows that only those packets are accepted at the
Ethernet interface that come from explicitly permitted network
devices.
 E-Mail dispatch and SNMP trap triggering on different events
It is possible to send an e-mail to any recipient on different events or
trigger an SNMP trap. A series of pre-define events are available for
this, like set-up of connections or tunnels, input signals, link condition
changes, false authentication at the web interface, firewall rejection,
configuration changes and other device-internal procedures.
 SNMP agent for processing SNMP requests
It is possible to respond to incoming SNMP requests (SNMP Get
requests) if the SNMP agent is enabled. Almost all configuration
parameters can be read out with this.
 Digital switch outputs and inputs
Two potential-free control outputs are available, which can be used to
switch other functions in an application. Digital inputs are also
available, which are used to establish connections or to send
messages via e-mail or SMS.
 Time synchronisation via NTP
Synchronisation of the system time via Network Time Protocol with
an NTP server in the Internet. The system time will thus always be
current and the internal clock must not be set manually.
 NTP server
An NTP server can respond to NTP requests in the local network.
 HTTP and HTTPS proxy with URL filter
The proxy is used to limit the access to web addresses for
applications in the local network of the router, and to avoid
connection timeouts. The protocols HTTP and HTTPS are supported.
The proxy maintains connections during the connection setup of the
communication device to prevent a premature timeout. The proxy will
not work as a cache for frequently accessed websites
 Log files
Different log files can be downloaded as text file via the web
interface.
 Downloadable configuration files
The configuration can be downloaded as binary or ASCII file. The file
can be used as backup copy for configurationafter a reset to factory
defaults, or for convenient loading of the same configuration into a
different router. The ASCII configuration file can be edited and offers
a comfortable option for an alternative configuration.
32
MoRoS ADSL 2.1 PRO
