Introduction

•
•
•

About this Guide

This guide describes the Extron DTP T USW 233 switcher with an integrated DTP
transmitter. The switcher outputs a signal to a compatible DTP receiver. This guide
describes how to install, operate, and configure the switcher.
NOTE: In this guide, the DTP T USW 233 is commonly referred to as a "switcher" or a

About the DTP T USW 233 Switcher

The DTP T USW 233 is a 3 input VGA and HDMI switcher with a DTP transmitter output
(see figure 1). It switches among one analog VGA and two HDMI inputs, including embedded
audio (or DVI video with the appropriate adapters). The switcher converts the selected input,
an optional analog audio input, and bidirectional RS-232 and infrared (IR) control signals to
a proprietary digital signal. It outputs the signal to a compatible DTP receiver. The switcher
and receiver extend the usable distance of video, audio, and control signals up to 230 feet
(70 meters) over a single shielded twisted pair cable (STP).
AUTO
1
SWITCH
CONFIG
Extron Extron
DTP T USW 233 DTP T USW 233
Transmitter Transmitter
AUTO SW
AUDIO IN AUDIO IN
HDCP HDCP
1 1
HDMI IN HDMI IN
2
CONFIG
IR OUT
G
S

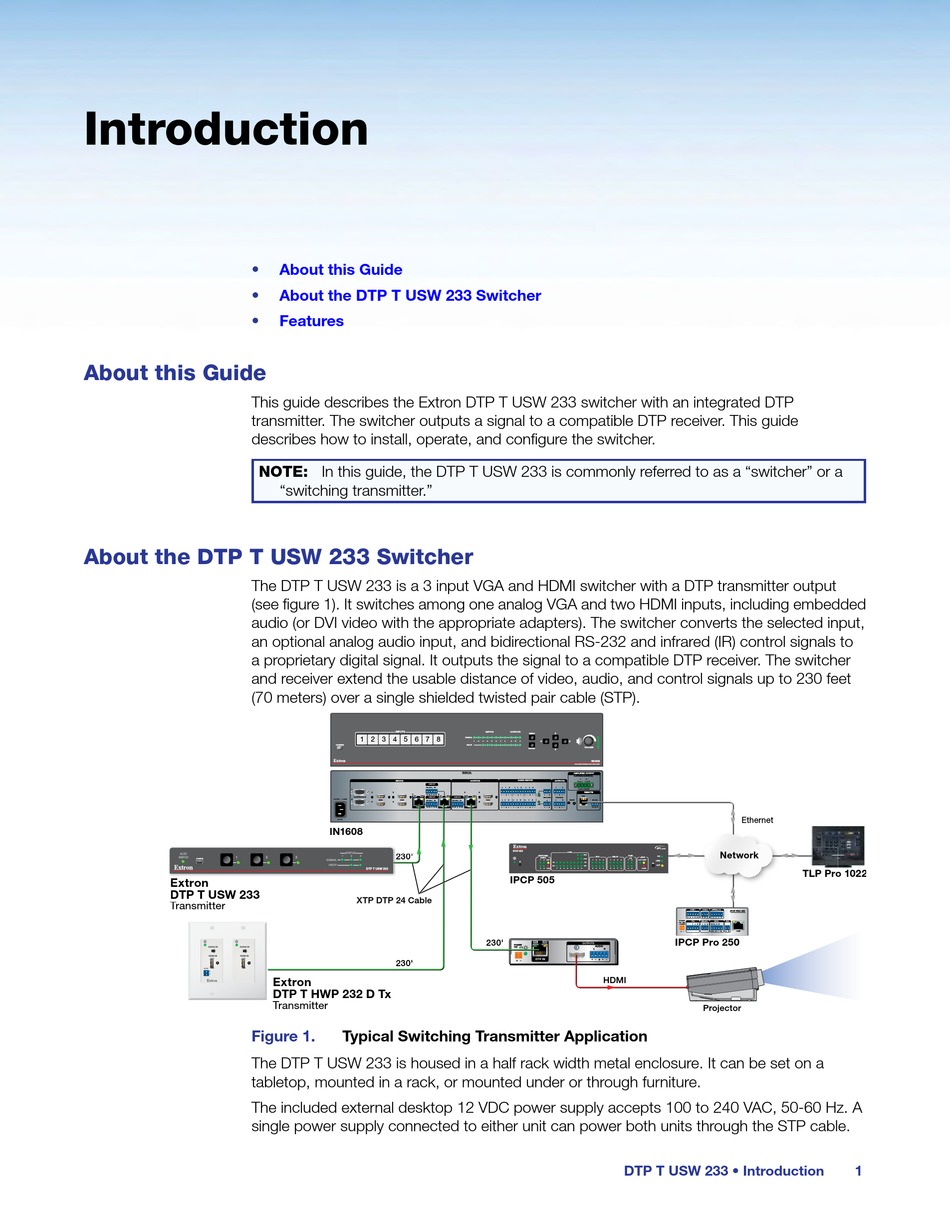

Figure 1.
The DTP T USW 233 is housed in a half rack width metal enclosure. It can be set on a
tabletop, mounted in a rack, or mounted under or through furniture.
The included external desktop 12 VDC power supply accepts 100 to 240 VAC, 50-60 Hz. A
single power supply connected to either unit can power both units through the STP cable.
