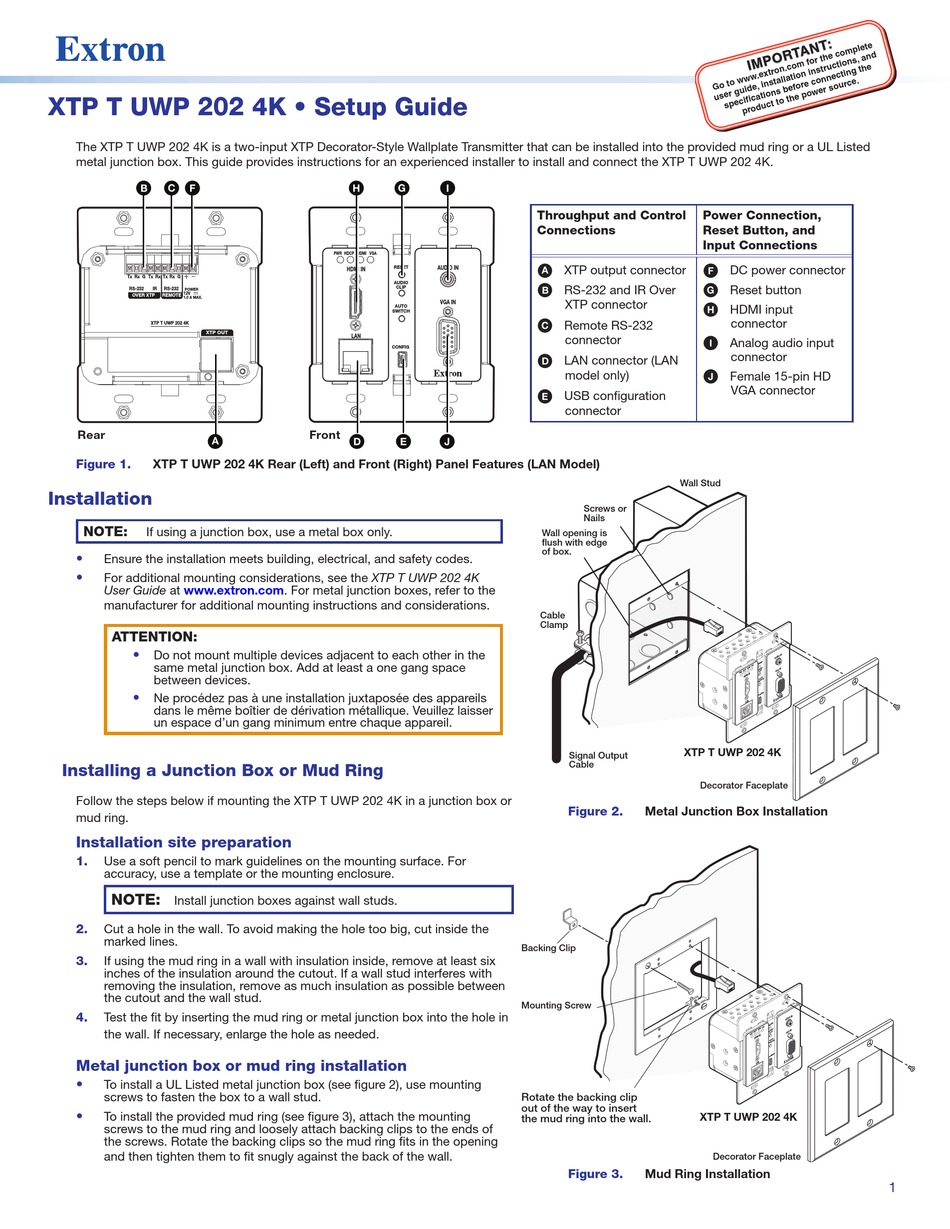

Extron electronics XTP T UWP 202 4K Setup Manual

XTP T UWP 202 4K • Setup Guide
The XTP T UWP 202 4K is a two-input XTP Decorator-Style Wallplate Transmitter that can be installed into the provided mud ring or a UL Listed
metal junction box. This guide provides instructions for an experienced installer to install and connect the XTP T UWP 202 4K.
B C F
Tx Rx G Tx Rx Tx Rx G
RS-232 IR RS-232 POWER
12V
OVER XTP REMOTE
1.0 A MAX.
XTP T UWP 202 4K
XTP OUT
Rear
A
XTP T UWP 202 4K Rear (Left) and Front (Right) Panel Features (LAN Model)
Figure 1.
Installation
NOTE:
If using a junction box, use a metal box only.
•
Ensure the installation meets building, electrical, and safety codes.
•
For additional mounting considerations, see the XTP T UWP 202 4K
User Guide at www.extron.com. For metal junction boxes, refer to the
manufacturer for additional mounting instructions and considerations.
ATTENTION:
•
Do not mount multiple devices adjacent to each other in the
same metal junction box. Add at least a one gang space
between devices.
•
Ne procédez pas à une installation juxtaposée des appareils
dans le même boîtier de dérivation métallique. Veuillez laisser
un espace d'un gang minimum entre chaque appareil.
Installing a Junction Box or Mud Ring
Follow the steps below if mounting the XTP T UWP 202 4K in a junction box or
mud ring.
Installation site preparation
1. Use a soft pencil to mark guidelines on the mounting surface. For
accuracy, use a template or the mounting enclosure.
NOTE:
Install junction boxes against wall studs.
2. Cut a hole in the wall. To avoid making the hole too big, cut inside the
marked lines.
3. If using the mud ring in a wall with insulation inside, remove at least six
inches of the insulation around the cutout. If a wall stud interferes with
removing the insulation, remove as much insulation as possible between
the cutout and the wall stud.
4. Test the fit by inserting the mud ring or metal junction box into the hole in
the wall. If necessary, enlarge the hole as needed.
Metal junction box or mud ring installation
•
To install a UL Listed metal junction box (see figure 2), use mounting
screws to fasten the box to a wall stud.
•
To install the provided mud ring (see figure 3), attach the mounting
screws to the mud ring and loosely attach backing clips to the ends of
the screws. Rotate the backing clips so the mud ring fits in the opening
and then tighten them to fit snugly against the back of the wall.
H G I
PWR HDCP HDMI VGA
RESET AUDIO IN
HDMI IN
AUDIO
CLIP
VGA IN
AUTO
SWITCH
LAN
CONFIG
Front
D E J
Throughput and Control
Connections
A XTP output connector
RS-232 and IR Over
B
XTP connector
C Remote RS-232
connector
LAN connector (LAN
D
model only)
USB configuration
E
connector
Wall Stud
Screws or
Nails
Wall opening is
flush with edge
of box.
Cable
Clamp
XTP T UWP 202 4K
Signal Output
Cable
Decorator Faceplate
Figure 2. Metal Junction Box Installation
Backing Clip
Mounting Screw
Rotate the backing clip
out of the way to insert
XTP T UWP 202 4K
the mud ring into the wall.
Figure 3. Mud Ring Installation
Power Connection,
Reset Button, and
Input Connections
F DC power connector
Reset button
G
H HDMI input
connector
Analog audio input
I
connector
J Female 15-pin HD
VGA connector
IN
D IO
A U
S E T
R E
VG A
M I
H D D IO
P A U A IN
D C IP V G
R H C L
PW
M I IN
H D
T O
A U H
IT C
S W
IG
N F
C O
L A N
IN
D IO
A U
T
S E
R E
VG A
M I
H D
D IO A IN
D C P A U
R H C L IP V G
PW
IN
M I
H D
T O
A U H
IT C
S W
N F IG
C O
L A N
Decorator Faceplate
1
