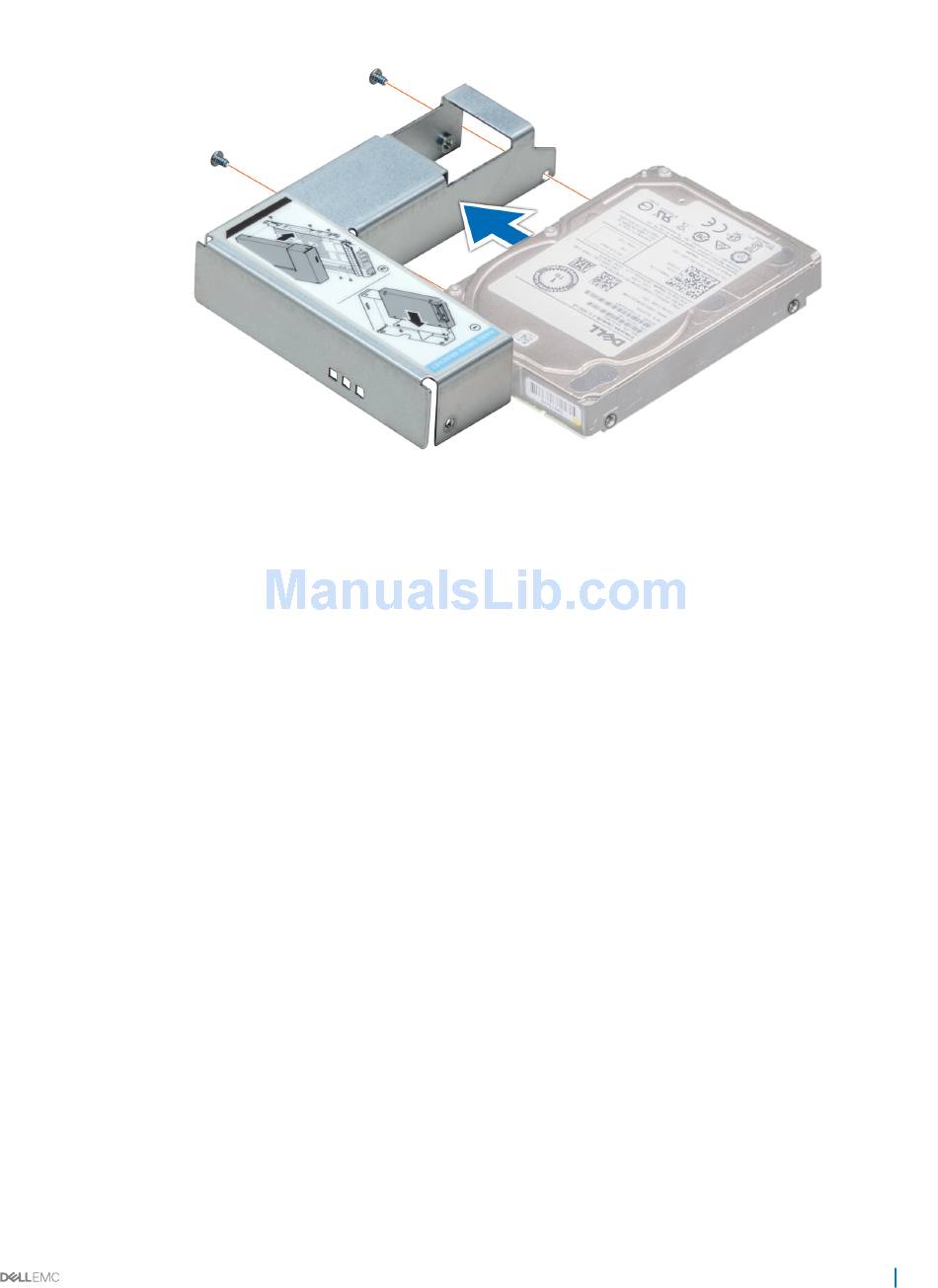

Figure 52. Installing a 2.5 inch drive into the 3.5 inch drive adapter
Next steps
1
Install a 3.5 inch adapter into the 3.5 inch drive carrier.
2
Follow the procedure listed in
Removing a 3.5 inch adapter from a 3.5 inch drive carrier
Prerequisites
1
Follow the safety guidelines listed in
2
Follow the procedure listed in
3
Remove the 3.5 inch drive carrier from the system.
Steps
1
Remove the screws from the rails on the drive carrier.
2
Lift the 3.5 inch drive adapter out of the drive carrier.
After working inside your
system.
Safety
instructions.
Before working inside your
system.
Installing and removing system components
103
