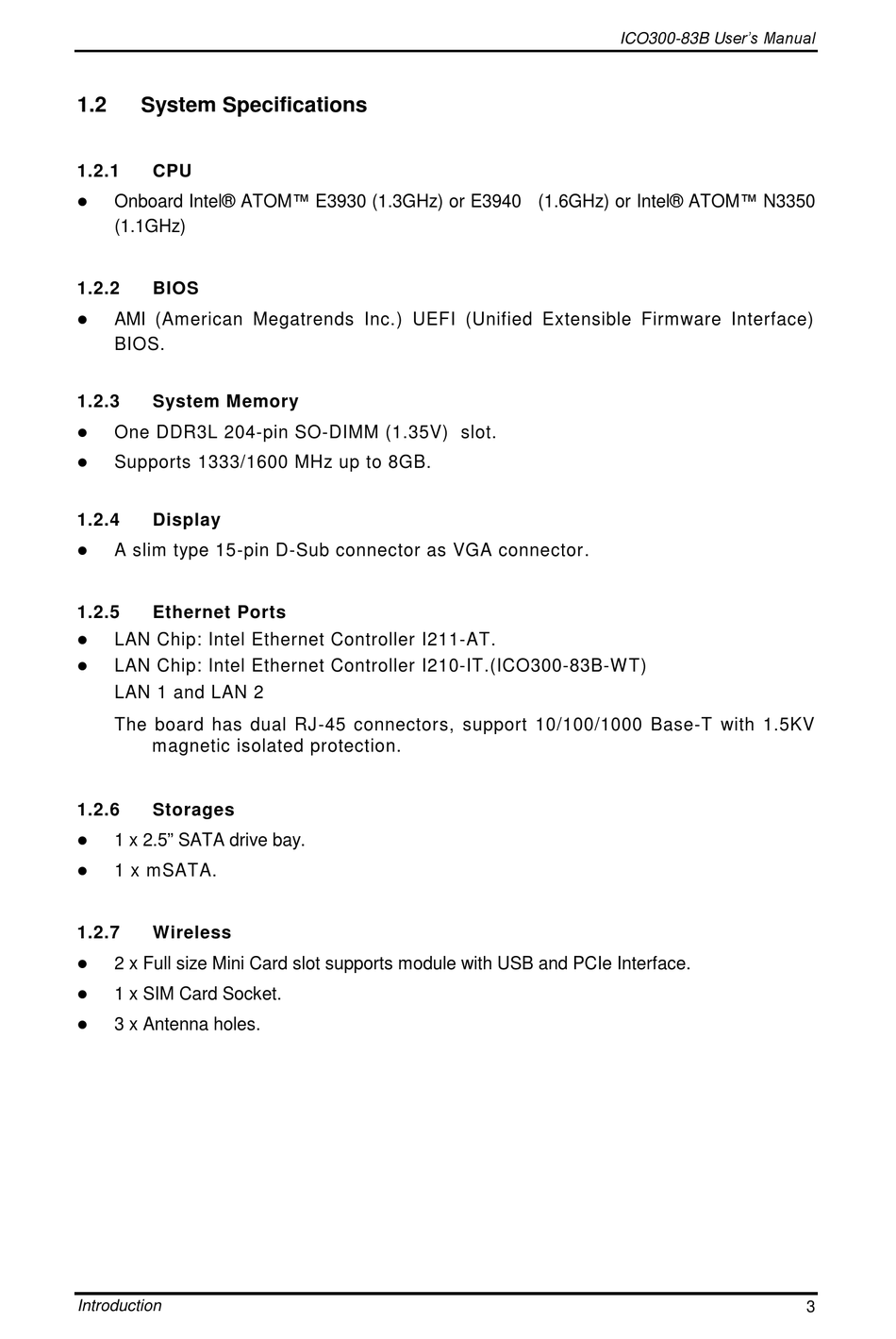

System Specifications - AXIOMTEK ICO300-83B User Manual

1.2

System Specifications

1.2.1 CPU
 Onboard Intel® ATOM™ E3930 (1.3GHz) or E3940 (1.6GHz) or Intel® ATOM™ N3350
(1.1GHz)
1.2.2 BIOS
 AMI (American Megatrends Inc.) UEFI (Unified Extensible Firmware Interface)
BIOS.
1.2.3 System Memory

One DDR3L 204-pin SO-DIMM (1.35V) slot.
 Supports 1333/1600 MHz up to 8GB.
1.2.4 Display
 A slim type 15-pin D-Sub connector as VGA connector.
1.2.5 Ethernet Ports
 LAN Chip: Intel Ethernet Controller I211-AT.
 LAN Chip: Intel Ethernet Controller I210-IT.(ICO300-83B-W T)
LAN 1 and LAN 2
The board has dual RJ-45 connectors, support 10/100/1000 Base-T with 1.5KV
magnetic isolated protection.
1.2.6 Storages
 1 x 2.5" SATA drive bay.
 1 x mSATA.
1.2.7 Wireless
 2 x Full size Mini Card slot supports module with USB and PCIe Interface.
 1 x SIM Card Socket.
 3 x Antenna holes.
Introduction
ICO300-83B User's Manual
3
