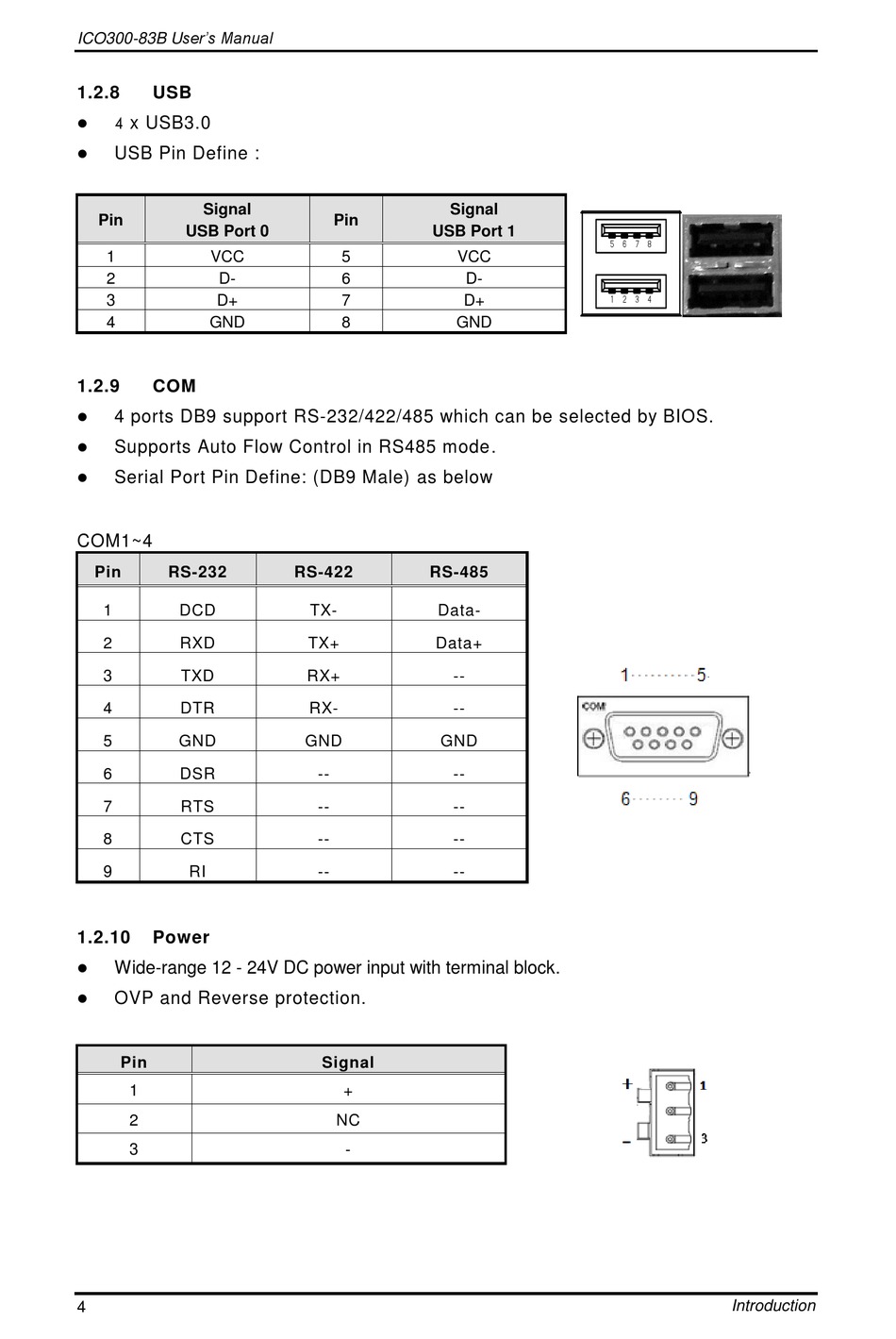

ICO300-83B User's Manual
1.2.8 USB
4
 x USB3.0
 USB Pin Define :
Signal
Pin
USB Port 0
1 VCC
2 D-
3 D+
4 GND
1.2.9 COM
 4 ports DB9 support RS-232/422/485 which can be selected by BIOS.

Supports Auto Flow Control in RS485 mode.
 Serial Port Pin Define: (DB9 Male) as below
COM1~4
Pin RS-232
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
1.2.10

Power

 Wide-range 12 - 24V DC power input with terminal block.
 OVP and Reverse protection.
Pin
1
2
3
4
Signal
Pin
USB Port 1
5 VCC
6
7
8 GND
RS-422 RS-485
TX- Data-
TX+ Data+
RX+ --
RX- --
GND GND
-- --
-- --
-- --
-- --
Signal
+
NC
-
5 6 7 8
D-
1 2 3 4
D+
Introduction
