4. ACCESSORIES

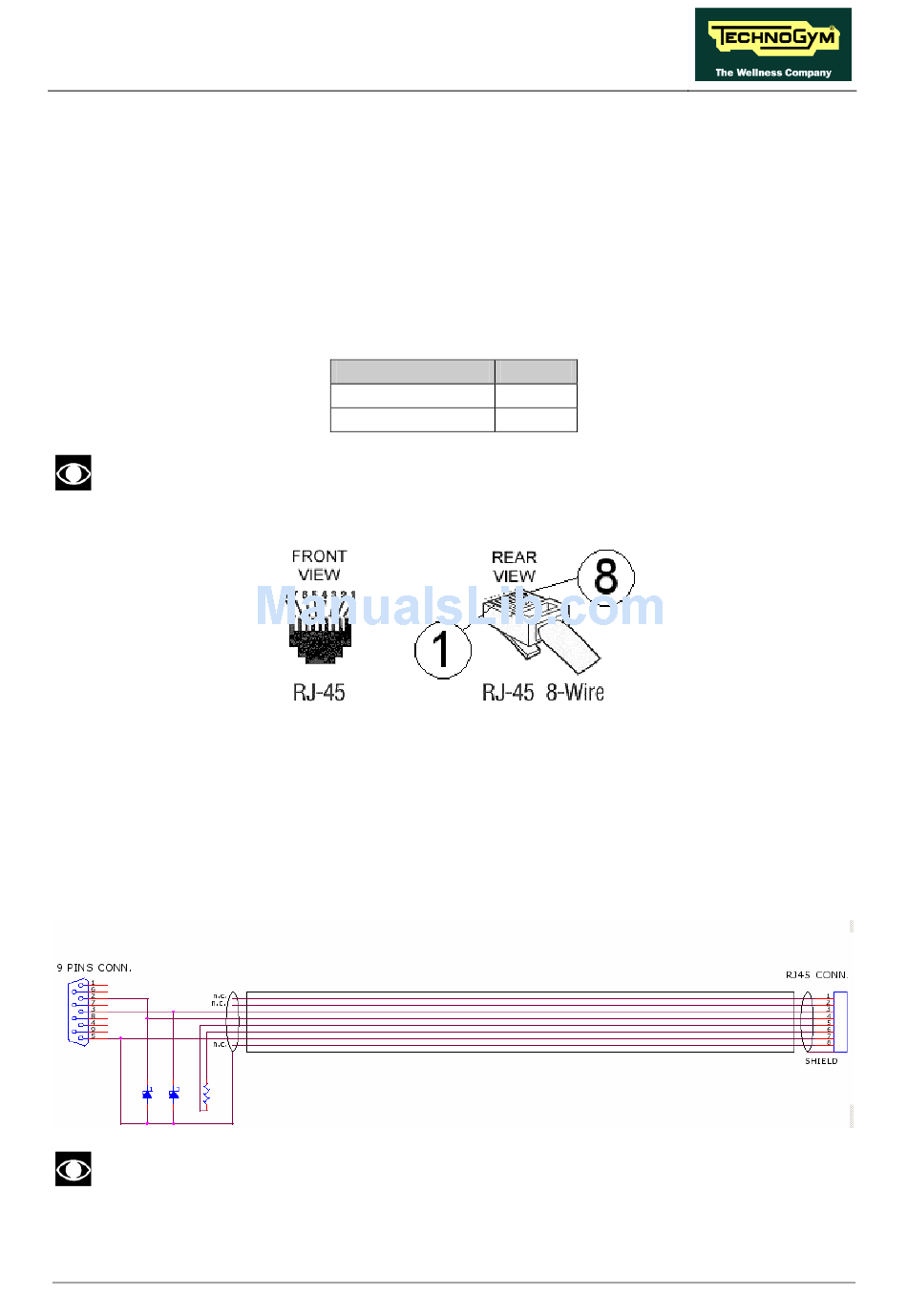

4.1. CARDIO THEATER CONNECTION
The machine can be connected to the CardioTheater by means of the RJ45 connector on the CSafe
board. The CardioTheater unit must be provided with a power cable having the following pin-out:
ATTENTION: for the numbering of the pins, on RJ45 connector, please refer to the
diagram below:
4.2. PC LINK FOR PROGRAMMING
The machine can be connected to a PC for programming by means of the RJ45 connector on the
CSafe board.
The cable to use must be wired as follows:
ATTENTION: for the numbering of the pins, on RJ45 connector, please refer to the
diagram below:
RJ45 Connector Signal
5 +5 Vdc
7 Ground
