7.7. DISPLAY FAN DISASSEMBLY
Only for 700 / 700E and 900 / 900E models.

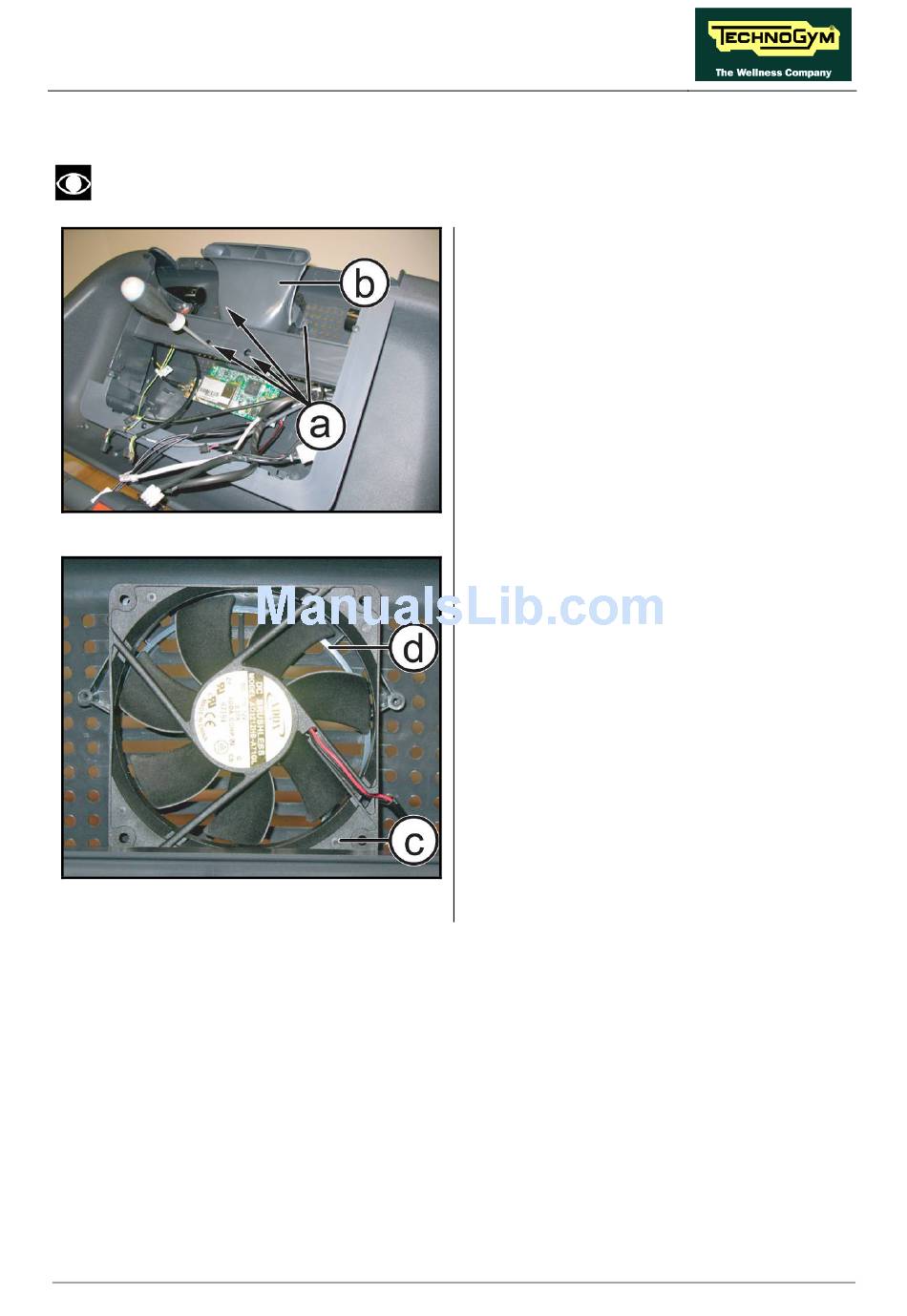

Figure7.7-1
Figure7.7-2
Carry out the operations
paragraphs: 7.1. "Display disassembly".
1. Back off the 4 screws (a) using a medium
Phillips screwdriver, as shown in the figure
on left side.
2. Remove the plastic air duct (b).
3. Remove the fan (c) from the rearsupport of
the display (d).
To reassemble the Fan, carry out the above steps
in reverse order.
described in
Page 7.11
