7.5. DOCKING STATION DISASSEMBLY
Figure7.5-1
Figure7.5-2
Figure7.5-3

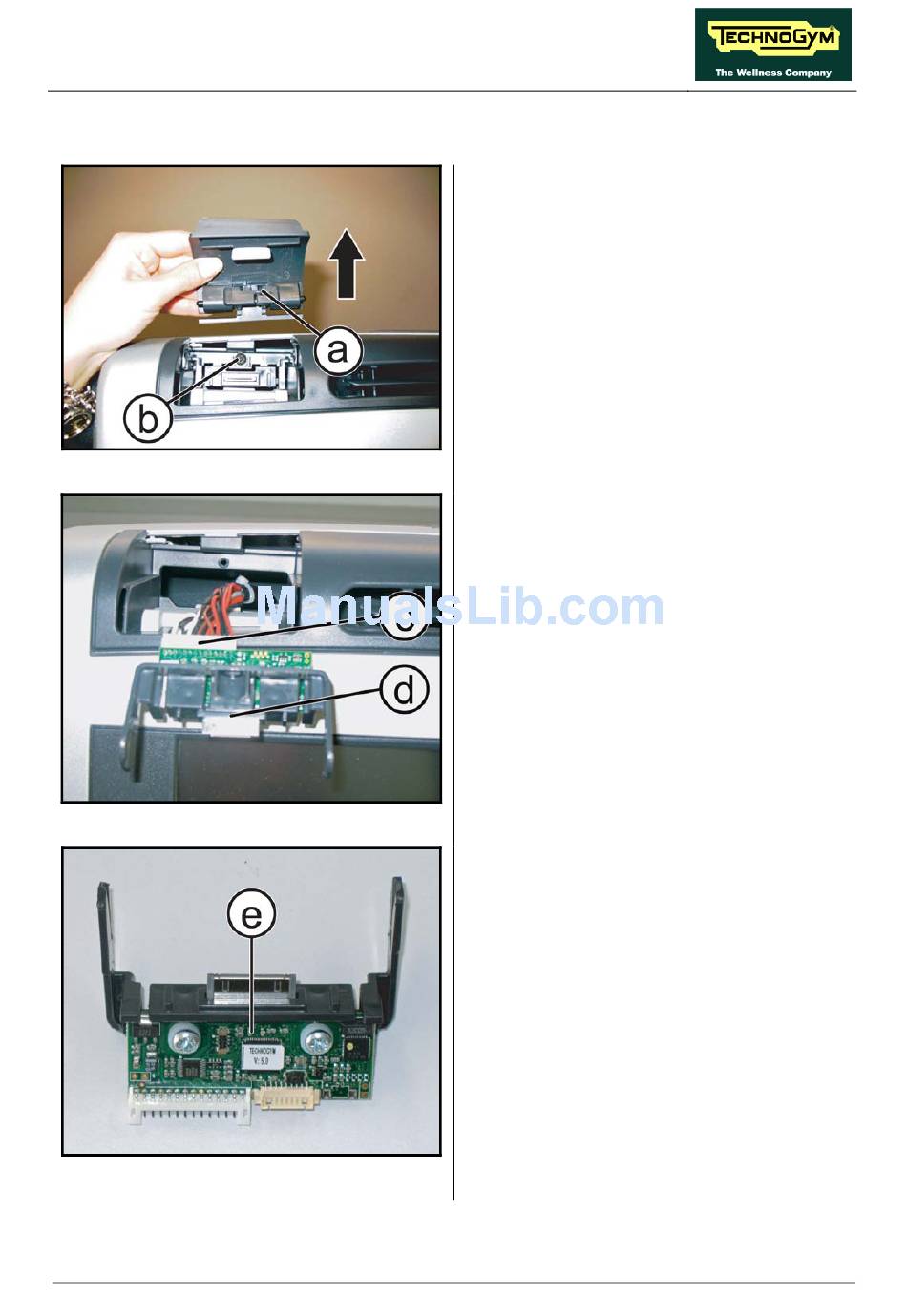

1. Open the docking Station cap (a) and lightly
force on a side to extract it from its display
support.
2. Back off the screw (b) with a mediun Phillips
screwdriver.
3. Remove the Docking Station (d) and
disconnect the connector (c)..
4. Remove the board (e) if is necessary.
To reassemble the Docking Station, carry out the
above steps in reverse order.
Page 7.9
