7.14. ALE DRIVER DISASSEMBLY

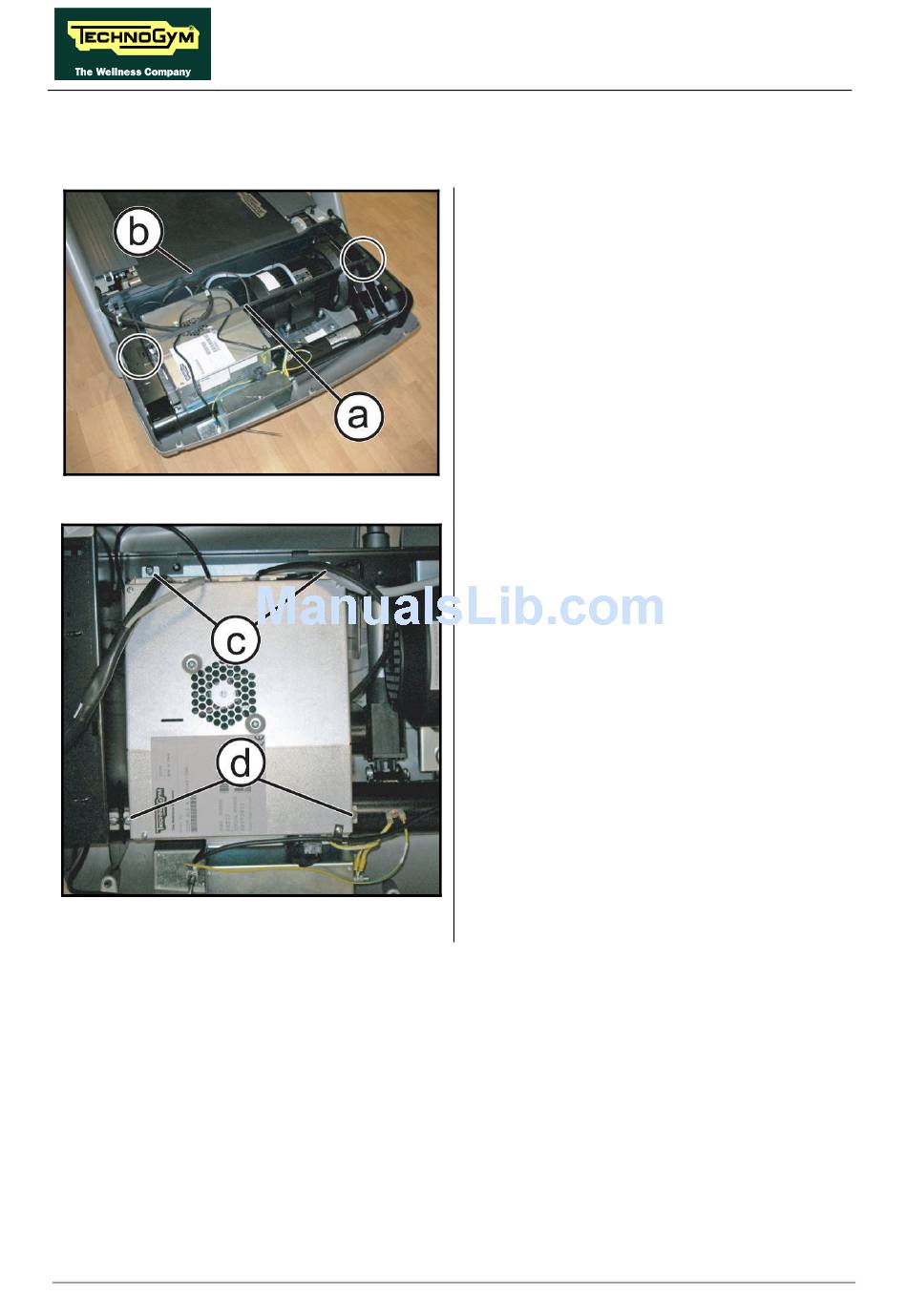

Figure7.14-1
Figure7.14-2
Page 7.22
RUN EXCITE-2008: Service & Maintenance Manual - rev. 1.3
Carry out the
paragraph: 7.12. "Motor guard disassembly",
only as far as removing the upper guard.
1. Remove the fit protection (a), extracting the
2 clip highlight in figure.
2. Remove the dust guard (b).
3. Loosen the 2 screws (c) with a medium
Phillips screwdriver.
4. Back off the 2 screws (d) with a medium
Phillips screwdriver.
procedure described
Continued on following page
in
→
