7.15. ALE DRIVER COMPONENTS DISASSEMBLY

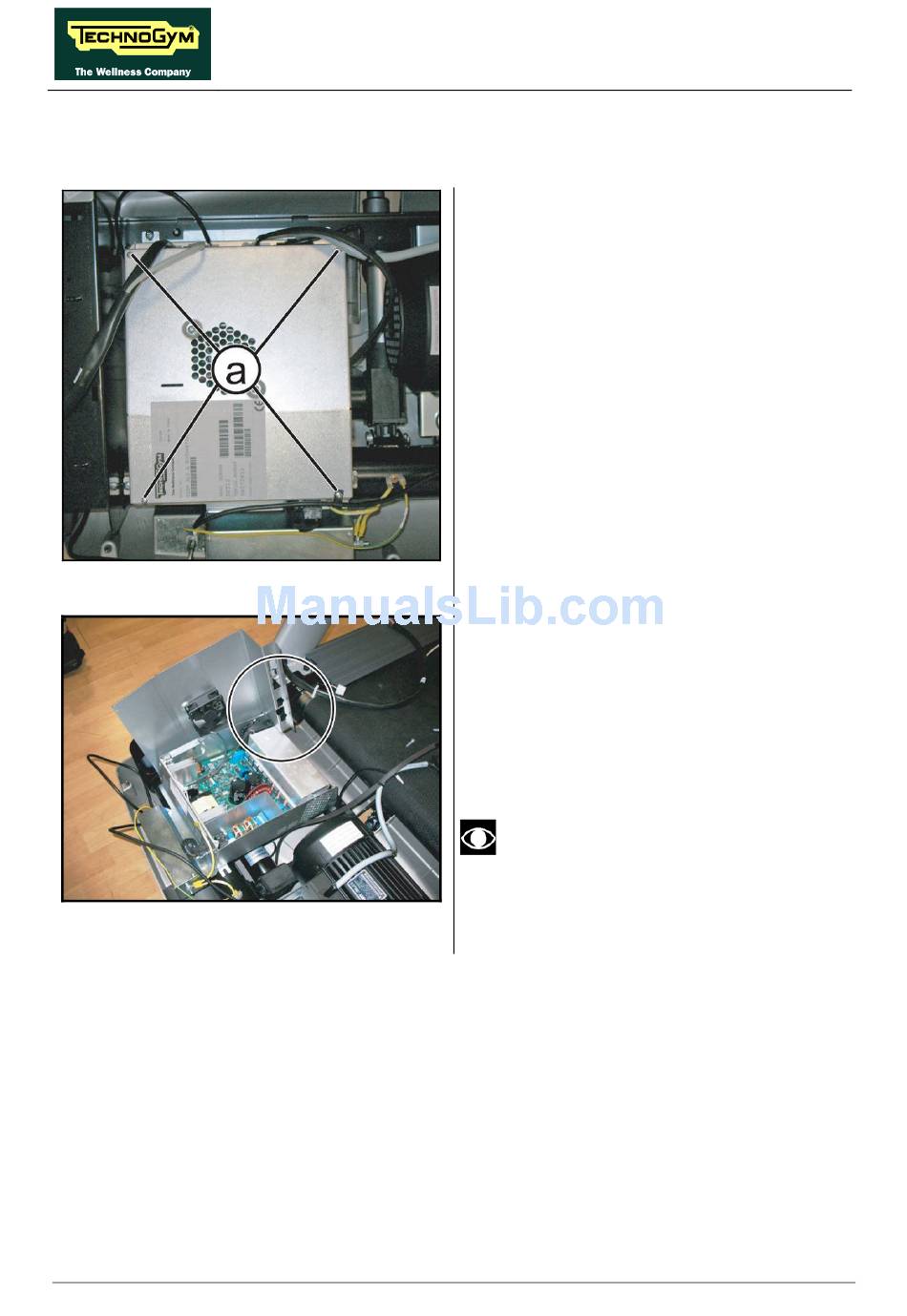

Figure7.15-1
Figure7.15-2
Page 7.24
RUN EXCITE-2008: Service & Maintenance Manual - rev. 1.3
Carry out the
paragraph: 7.12. "Motor guard disassembly",
only as far as removing the upper guard.
1. Back off the 4 screws (a), with a medium
Phillips screwdriver.
2. Lift up the cover and put it on a box side
through the slot on it, as shown in the figure
on left side.
3. Now it is possible to:
• Replace the 5 fuses,
• Remove the fan on the top,
For other operations it is necessary to
remove the electronics from the machine
and bring it on a work bench, as detailed
in paragraph:
disassembly".
procedure described
7.14. "ALE
Continued on following page
in
driver
→
