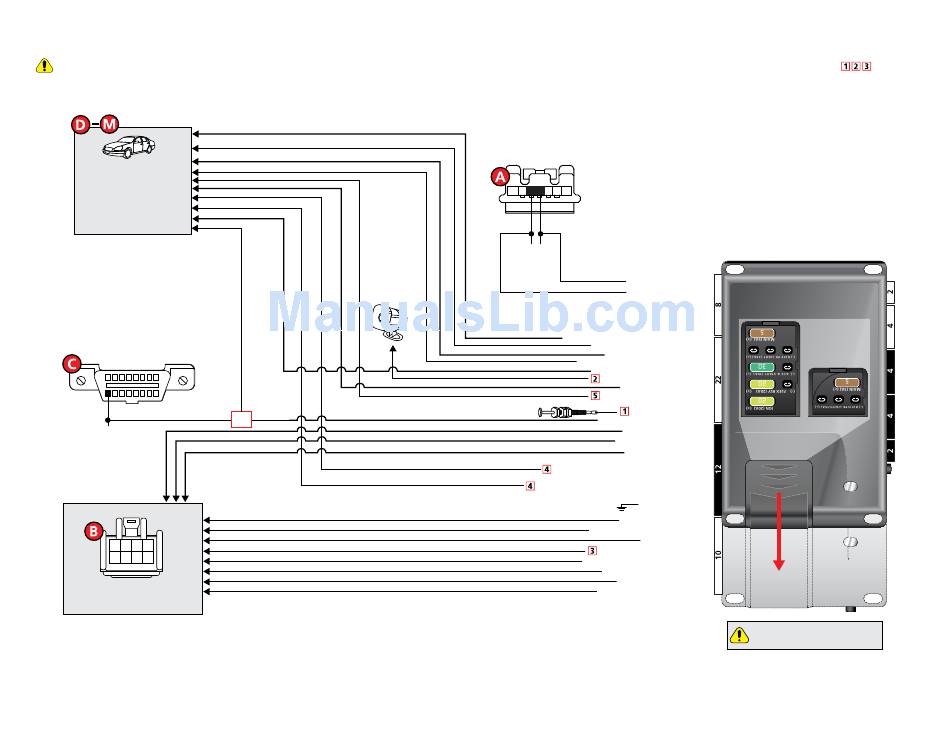

Type - Directed DS4+ Installation Manual

Type 3

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
Refer to 'Vehicle Wiring
Reference Chart' for wire
and connector details.
Parking lights & Autolights
are secondary options for
Tach.
Diagnostic Connector
at OBDII
1 8
1 8
9 9 16 16
(AC) Tach: Pin 9
Ignition Switch
1 2 3 4
5 6 7 8
Refer to the Vehicle Wiring
Reference Charts for wire and
connector details.
14
Siren
OR
Transponder Key Amplier
(black 7-pin ignition connector)
7 6 5 4 3 2 1
Data TX: Data RX:
Pin 5 Pin 4
Data RX: Orange/Black 7
Data TX: Yellow/Black: 8
(-) Parking Lights Output: Lt.Green/Black: 1
(-) Keysense Output: Blue/White: 2
(-) Lock Output: Green/Black: 3
(-) Trunk Release Output: Red/White: 4
(-) Unlock Output: Dk.Blue/Black: 9
(+) Siren Output: Brown/Red: 11
(+) Brake Input: Brown: 14
(-) Door Trigger Input: Green: 20
Hood Pin
(-) Hood Input: Gray: 21
(AC) Tach Input: Violet/White: 22
(+) 12V Input: Blue/Red: 2
(+) Starter 2 Output: Blue: 3
(+) 12V Input: Red: 6 &12
Autolights Interrupt (vehicle side): Lt. Green: 8
Autolights Interrupt (conn.side): Lt. Green/White: 9
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+) Ignition 2 Output: Pink/White: 4
(+) 12V Input: Red: 5
Starter Input (Key Side): Green: 6
(+) Starter Output (Car Side): Violet: 7
(+) Accessory Output: Orange: 8
(+) 12V Input: Red/White: 9
(+) Ignition Input/Ouput: Pink: 10
).
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
DS4+ TL11
