Directed DS4+ Installation Manual page 15

Vehicle wiring reference chart

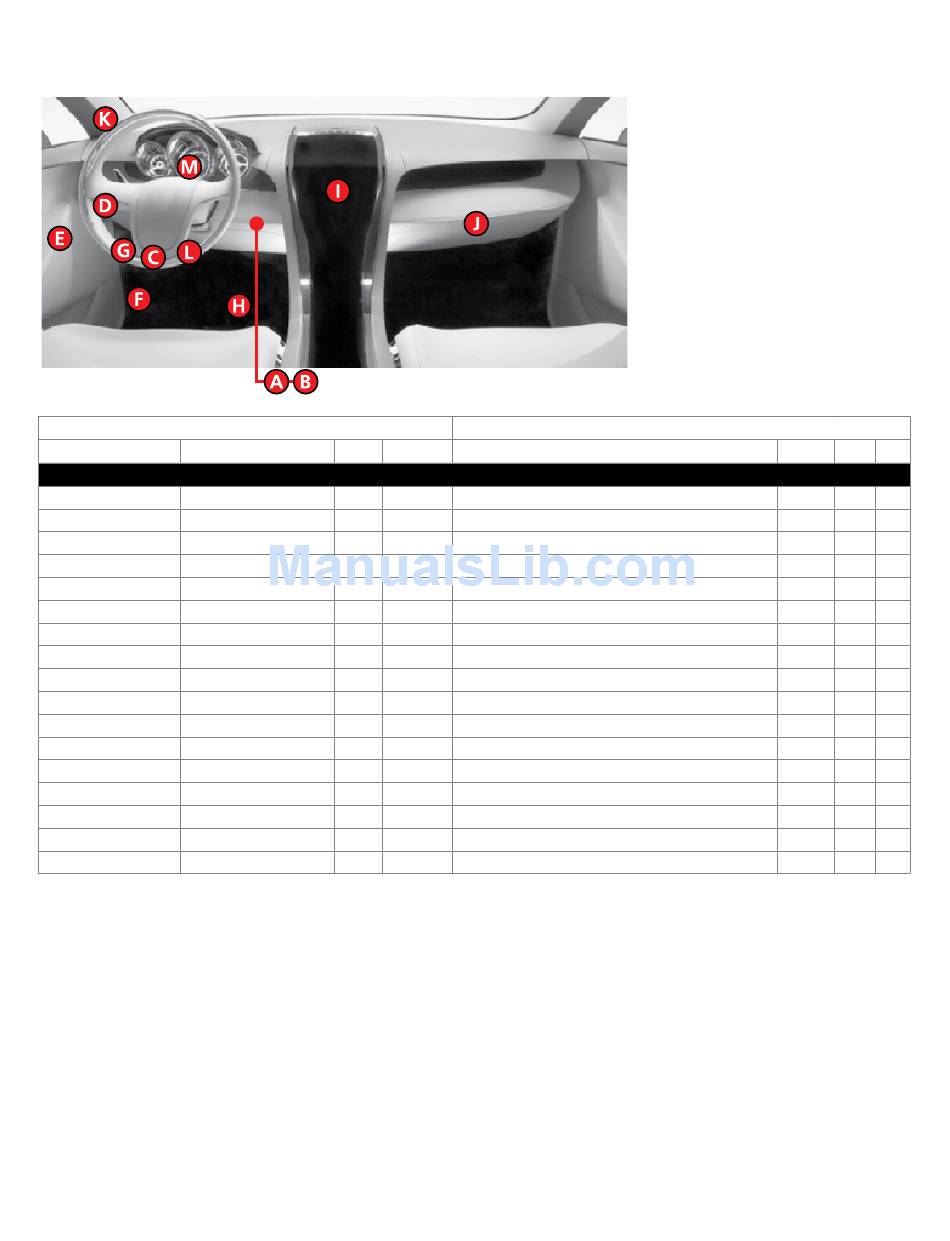

This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Lexus ES 330 2004-2006
RX Green/White
TX Blue/Yellow
Keysense Blue
12V White Red
Starter 1 Black/White
Starter 2 Green/Yellow
Ignition 1 Black/Red
Ignition 2 Black/Yellow
Accessory Blue/Red
Autolights White
Parking Lights Red
Lock Blue/Yelllow
Unlock Blue
Brake Green/White
Trunk Release Red or Blue/Yellow
Door Trigger Green/Red
Tach Black/Orange
15
Pin Polarity Location
4 Data Transponder Key Amplifier on ignition switch.
5 Data Transponder Key Amplifier on ignition switch.
2 (-) Key warning switch.
7 (+) Ignition switch.
8 (+) Ignition switch.
1 (+) Ignition switch.
6 (+) Ignition switch.
4 (+) Ignition switch.
3 (+) Ignition switch.
12 Cut Headlight switch.
14 (-) Headlight switch.
4 (-) DDM (Drivers Door Module) in drivers door.
14 (-) DDM in drivers door.
15 (+) Bottom of fuse box.
5 (-) Body ECU on left rear of fuse box.
16 (-) Body ECU on left rear of fuse box.
5 AC ECM behind glove box.
Connector Information
Color
Black
Black
White
White
White
White
White
White
White
White
White
White
White
White
White
White
White
© 2017-11-27 Directed. All rights reserved.
Pins Ref.
7 A
7 A
2 B
8 B
8 B
8 B
8 B
8 B
8 B
17 D
17 D
20 E
20 E
20 G
18 G
20 G
31 J
DS4+ TL11
