D2D port configuration

The system will automatically configure the D2D ports based on your selections in the module programming. The white D2D port is
reserved for SmartStart. To ensure proper functionality with SmartStart, it is important that it is selected in the system programming
of the DirectLink application or via the online web tool.
Note: Both black D2D ports are reserved for the Control Center (antenna) and 8504D Combo Sensor.
Module programming
Refer to "LED diagnostics and troubleshooting" on page 30 for more information and for troubleshooting purposes.

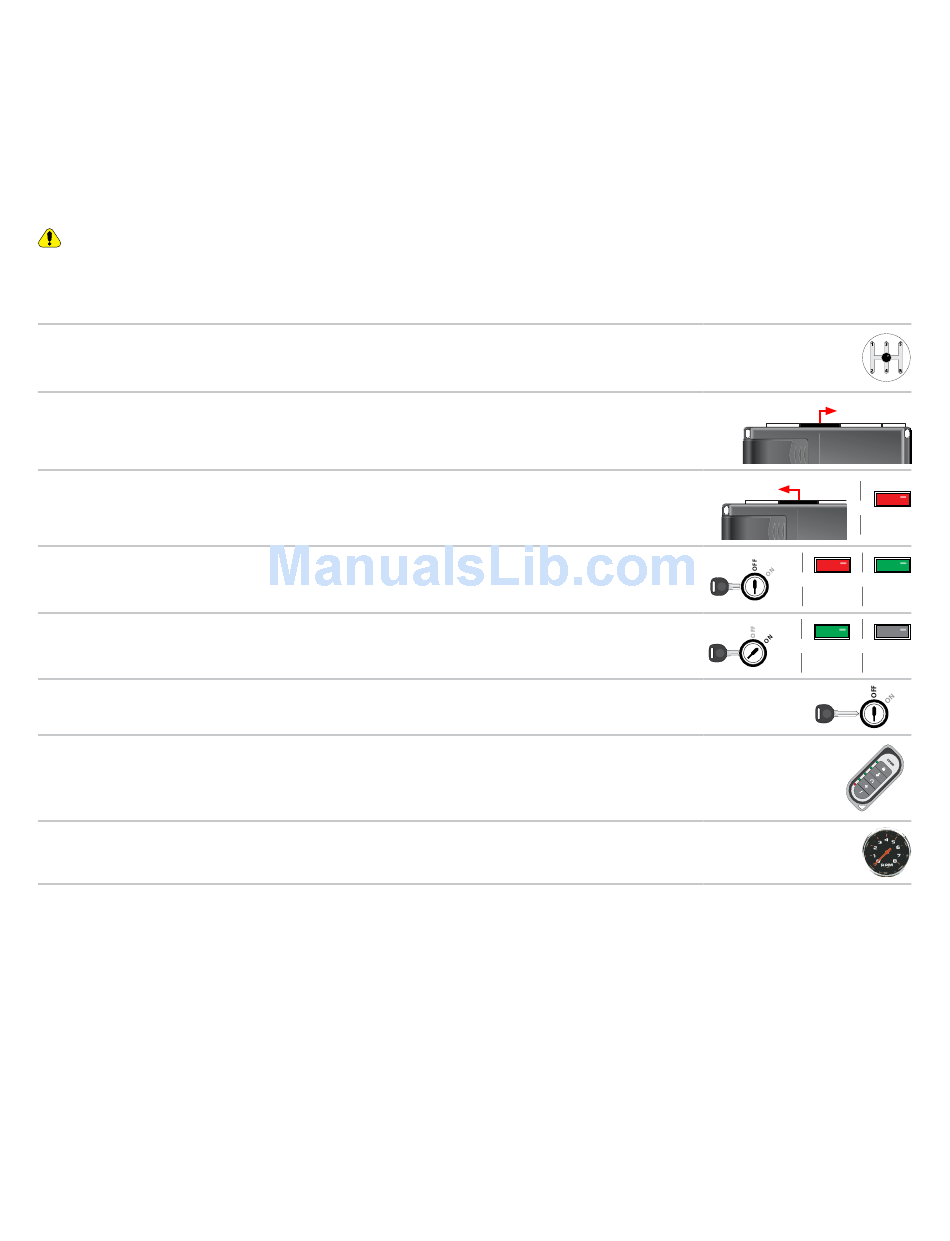

Installation Type 1 and 2
To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Insert the key in the ignition switch. The LED flashes red slowly for a few seconds to
4
indicate the key is in learning mode. The LED then turns ON solid green.
Turn the ignition to the ON position. The LED turns ON solid green for 3 seconds, then turns
5
OFF.
6
Turn vehicle ignition OFF once the module is successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please
7
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
8
program tach, see page 34.
* Your aftermarket remote may differ from the model shown in the illustrations.
28
Key OUT
START
Key OUT Key IN Key IN
START START
Connect all but the
12-pin harness
Must be
connected LAST
&
Solid
Key IN Key IN Key IN
& &
Flashes Solid
START START
Slowly
Key IN
& &
Solid Off
START START
x 3 secs
Key OUT
START
Pair
remotes*
Initialize
tachometer
DS4+ TL11
