I I n n t t e e g g r r a a l l L L E E D D i i n n d d i i c c a a t t o o r r s s

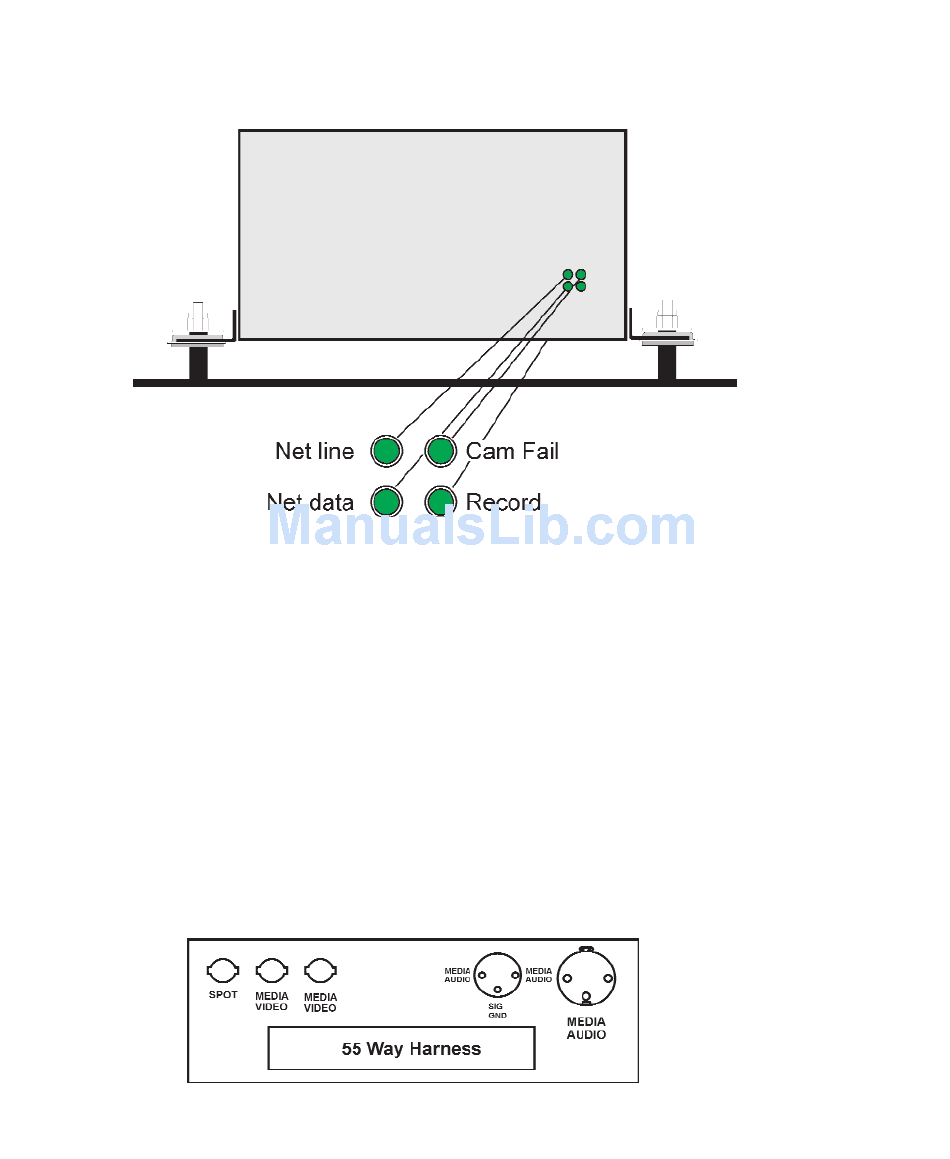

The following four indicators are provided at the opposite end of the TransVu from the plug:
Net Line
Indicates a direct Ethernet connection.
Net Data
Indicates data traffic across the networks
Cam Fail
Indicates that a camera selected for recording or selected for viewing has failed.
Record
Flashes when images are being recorded to disk.
Connectivity
TransVu Media products support additional connections for monitor outputs and audio outputs (the audio
output is not currently enabled).
