Dedicated Micros TransVu Operation Manual page 20

Cameras Menus
The Camera Menus are the configuration pages directly associated with the video inputs. These allow the
camera inputs to be enabled, identify image resolution, set record rates, etc.

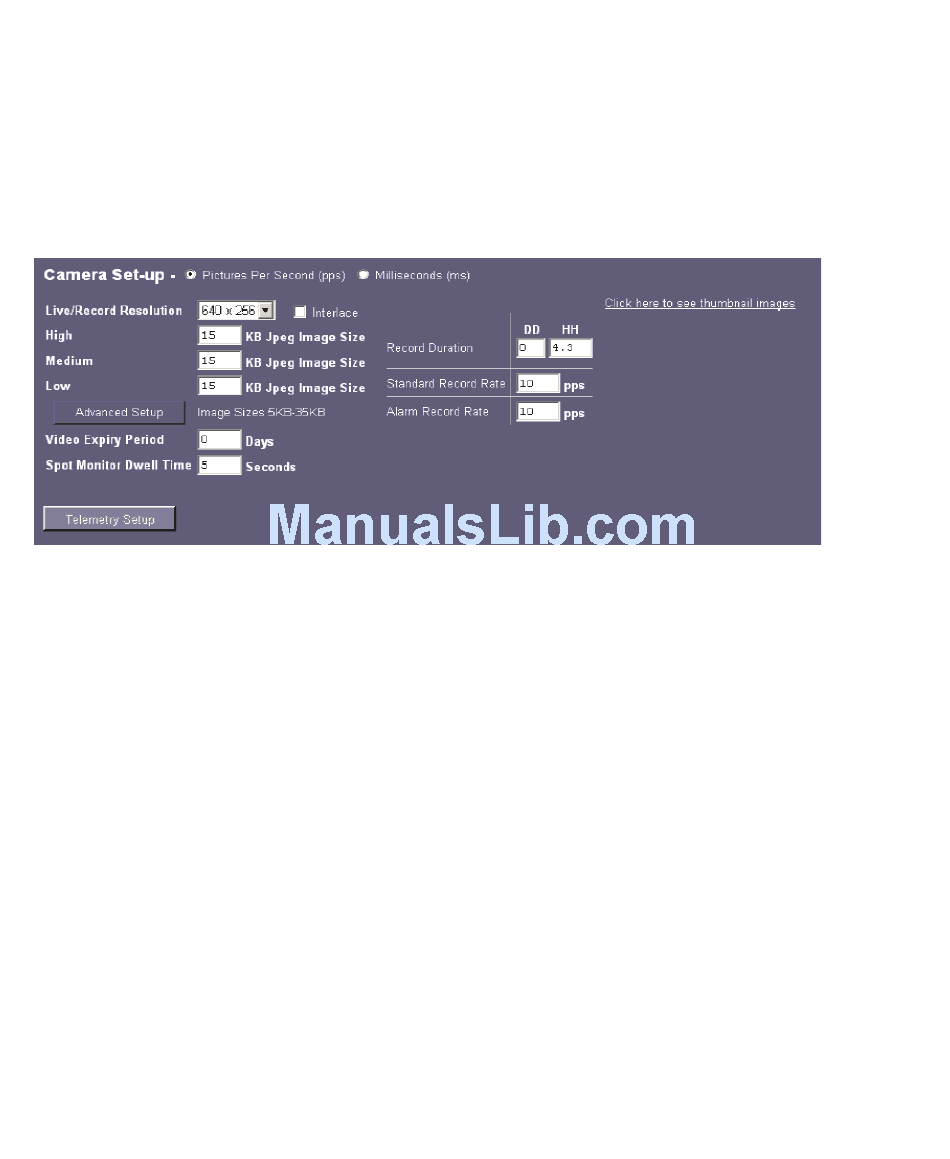

Camera Set-up
The camera set-up page allows global settings and individual camera settings to be configured.
Note: TransVu is physically configured for seven camera operation. Camera input eight is now set up as a
spot monitor input. The Spot Monitor is an analogue output capable of full screen or full screen
sequence with a programmable dwell time.
Function
Pictures Per Second (pps) /
milliseconds (ms)
Live/Record Resolution
Interlace
High
Medium
Low
Note: Reducing the file size will allow more data to be transmitted across the network, it is important to
remember reducing the file size will require the compression applied to be increased and this will
Dedicated Micros © 2006
Description
This allows the record settings to be configured as either Pictures Per Second
or Milliseconds.
This is the resolution of the live and recorded images that will be transmitted
from the TransVu and recorded to hard disk.
PAL Fields 640 x 256, 720 x 256, 768 x 288, 720 x 288
NTSC Fields 640 x 240, 720 x 240.
Enabling this option will apply interlace to the video images.
This is the maximum file size for the images when high quality video has been
selected to be recorded or viewed.
The unit records images at the high resolution settings as standard.
This is the maximum file size for the images when medium quality video has
been selected to be viewed.
This is the maximum file size for the images when low quality video has been
selected to be viewed.
19
