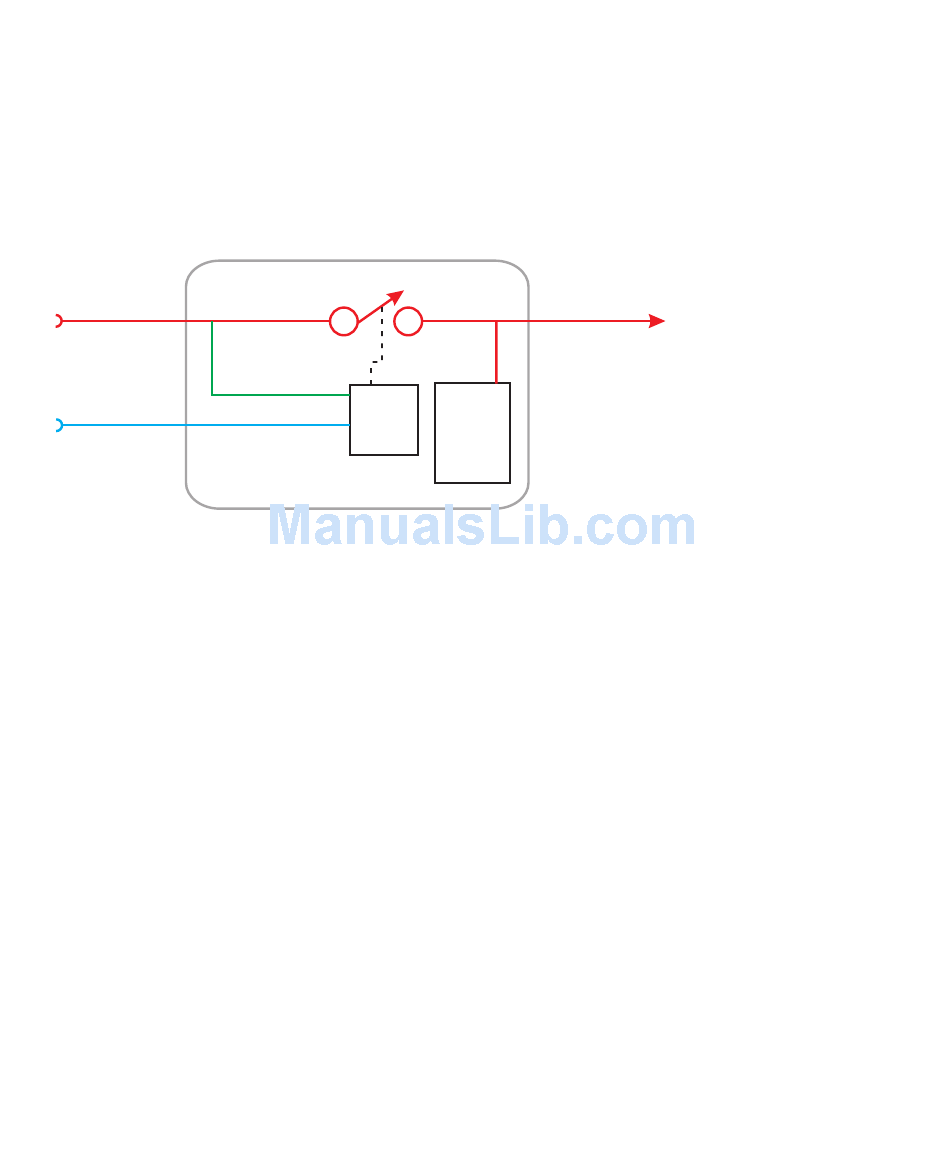

Power Sensing Circuit
When enabled the Power Sense circuit (PIC 0) will respond by either opening or closing the internal power
relay.
This controls power to the TransVu power supply and the power out connector, which will normally power
cameras and ancillary equipment.
This ensures that when the power sense circuit shuts down the TransVu, all cameras etc. are also shut
down, removing the load from the vehicle battery.
TransVu
Power out
Power in
38
32
Low voltage sense
Power
Ignition
Ignition sense
TransVu
sense
11
power
(PIC 0)
Supply
Current drain in the powered off condition is 30 milliamps.
Dedicated Micros © 2006
47
